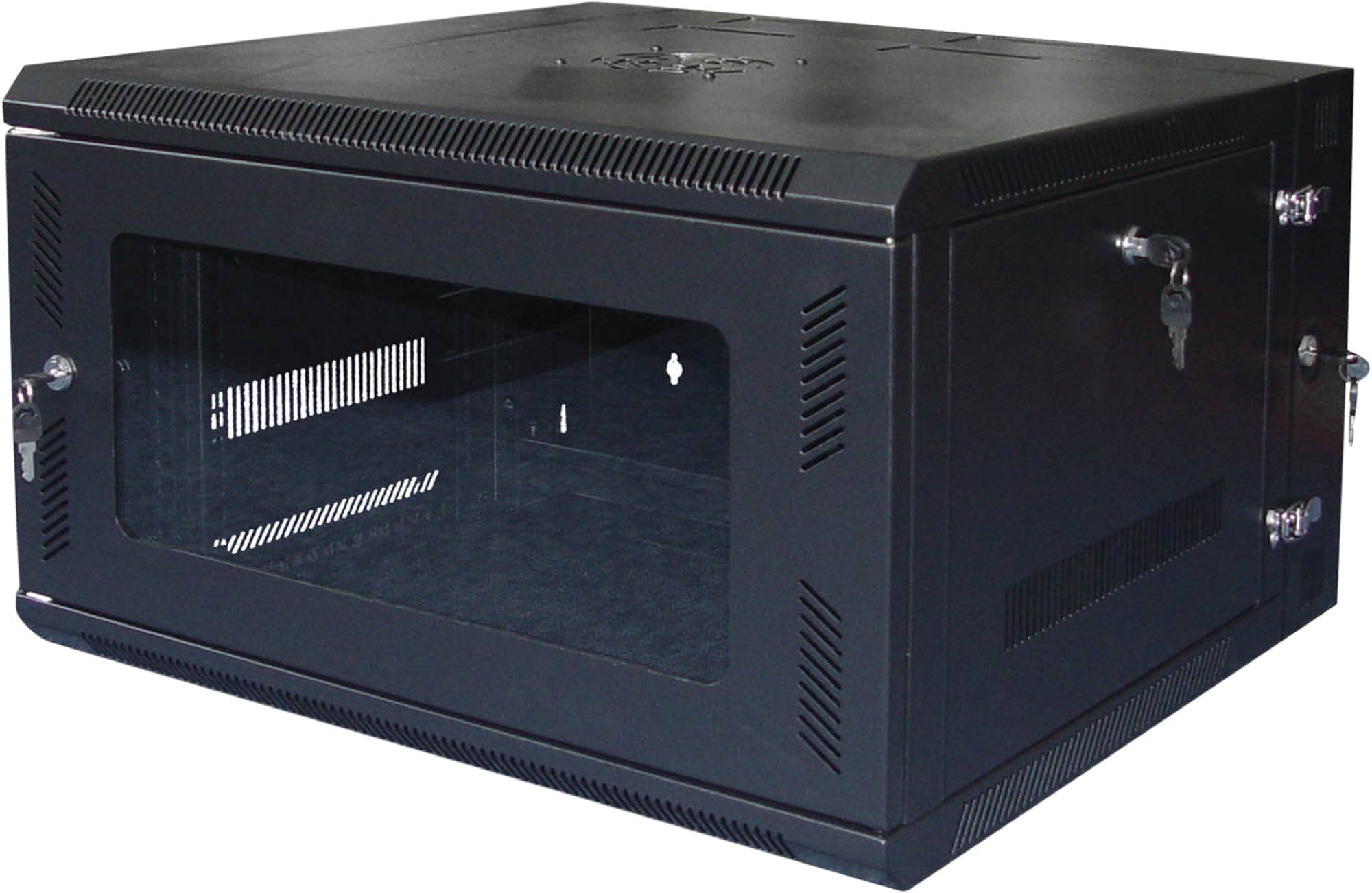

6U 600mm Deep Hinged Wall Mount Server Rack

SKU: HD5606
A 6RU hinged data cabinet which allows easy rear panel connection access. Each package includes a rack frame, tempered glass front door, two side panels, top and bottom panel. Sides, rear, front and hinge are lockable.
$417.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $417.27
2+ $390.91
4+ $363.64
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A latch-able swing frame design which allows easy rear panel connection access. Each package includes a rack frame, tempered glass front door, two side panels, top and bottom panel. Sides, rear, front and swing frame are lockable. Constructed from 1.5mm black powder coated steel, these 19” racks are ideal for communications, public address and IT server rooms. Front door can be rotated to open from left to right, or right to left. Provision for cooling fans in top. Design includes plenty of ventilation to keep equipment cool. Supplied flatpack and assembles quickly.

Dimensions: 600W x 600D x 360H mm (Maximum equipment depth 420mm)

Features:

  • Double section wall mount cabinet.
  • IP20 rated protection.
  • RAL9004/5 black colour.
  • SPCC cold rolled steel construction with 1.5mm steel mounting posts and back panel, 1.2mm frame.
  • Designed to comply with 19" international standard.
  • Complies with ANSI/EIA RS-310-D, IEC297- 2,DIN41491 - PART1, DIN41494 - PART7, GB/3047.2-92 standard.
  • Adjustable mounting post to suit different depth equipment.
  • Tempered glass front door with 180 deg. rotatable lock.
  • Removable side and rear panels for easy installation and adjustment of equipment.
  • Ventilation in all doors.
  • Cable entry on the top cover.
  • Bottom plate with cable knock-out plate.
  • Cooling fan holes in top cover.
  • Detachable swing frame design makes field servicing easy.
  • Supplied flat pack - assembles quickly.
  • Load bearing capacity 30kg

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
