20U 600mm Deep Freestanding 19" Rack System

SKU: HD5420
Constructed from 1.5mm black powdercoated steel, these freestanding 19" racks are ideal for communications, public address and IT server rooms.
$980.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $980.91
2+ $886.36
4+ $786.36
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

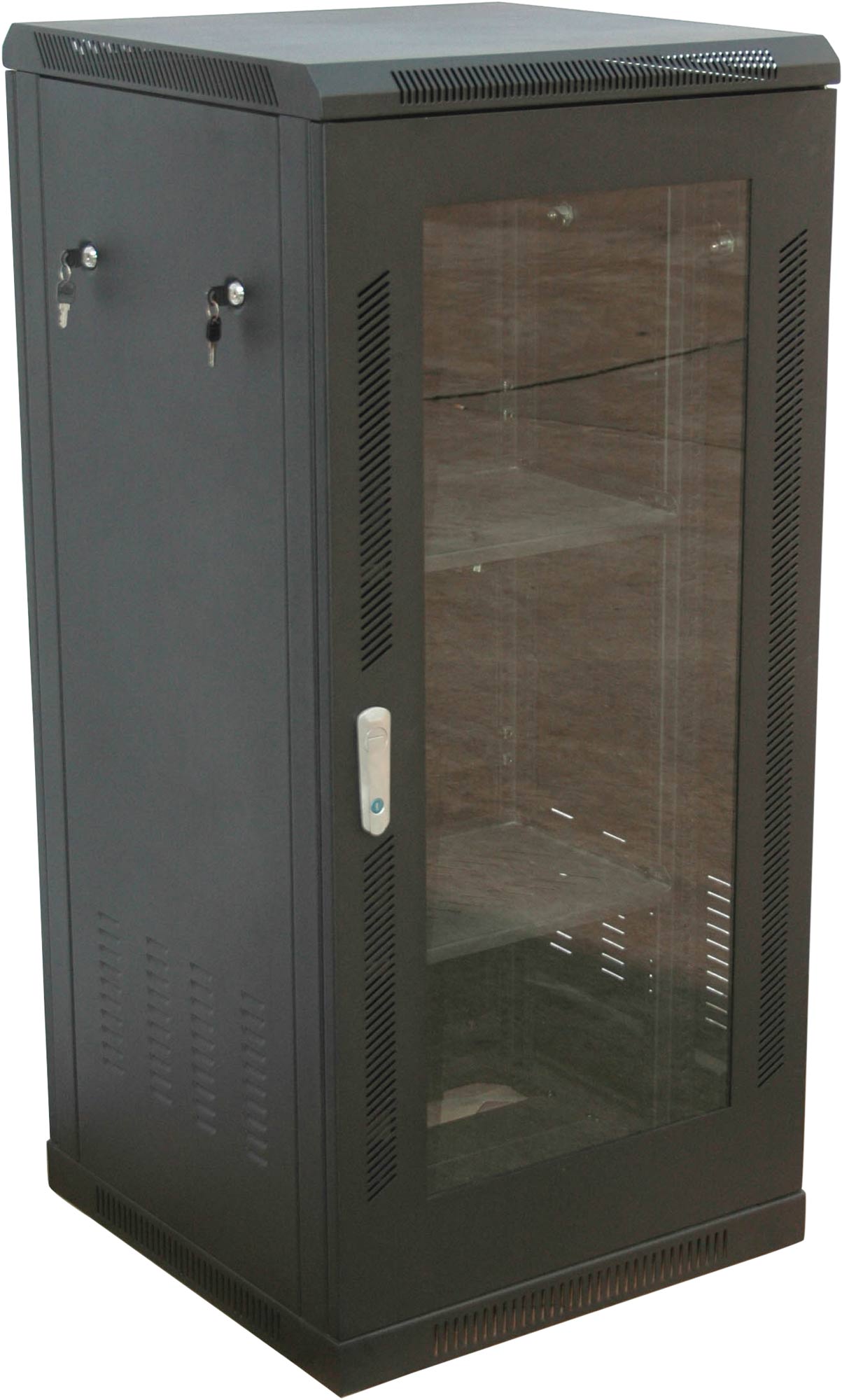

Constructed from 1.5mm black powdercoated steel, these freestanding 19” racks are ideal for communications, public address and IT server rooms. Each package includes a rack frame, tempered glass front door, steel rear door and two side panels and top. Each door & panel is lockable. Front door can be rotated to open from left to right, or right to left. Design includes plenty of ventilation to keep equipment cool. Supplied flatpack and assembles quickly.

Dimensions: 600W x 600D x 1062H mm (add 30mm height when fitted with castors) (Maximum equipment depth 420mm)

Features:

  • IP20 rated protection.
  • RAL9004/5 black colour.
  • SPCC cold rolled steel construction with 1.5mm steel mounting posts and back panel, 1.2mm frame.
  • Designed to comply with 19" international standard.
  • Complies with ANSI/EIA RS-310-D, IEC297- 2,DIN41491 - PART1, DIN41494 - PART7, GB/3047.2-92 standard.
  • Adjustable mounting post to suit different depth equipment.
  • Tempered glass front door with 180 deg. rotatable lock.
  • Removable side and rear panels for easy installation and adjustment of equipment.
  • Ventilation in all doors.
  • Cable entry on the top cover.
  • Adjustable cable entries in the bottom with panels.
  • Adjustable feet and universal castors included.
  • Includes equipment shelf, cable management panel, 2U blanking panels, wheels, feet, screws and cage nuts.
  • Cooling fan holes in top cover.
  • Supplied flat pack - assembles quickly.
  • Load bearing capacity 60kg

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
