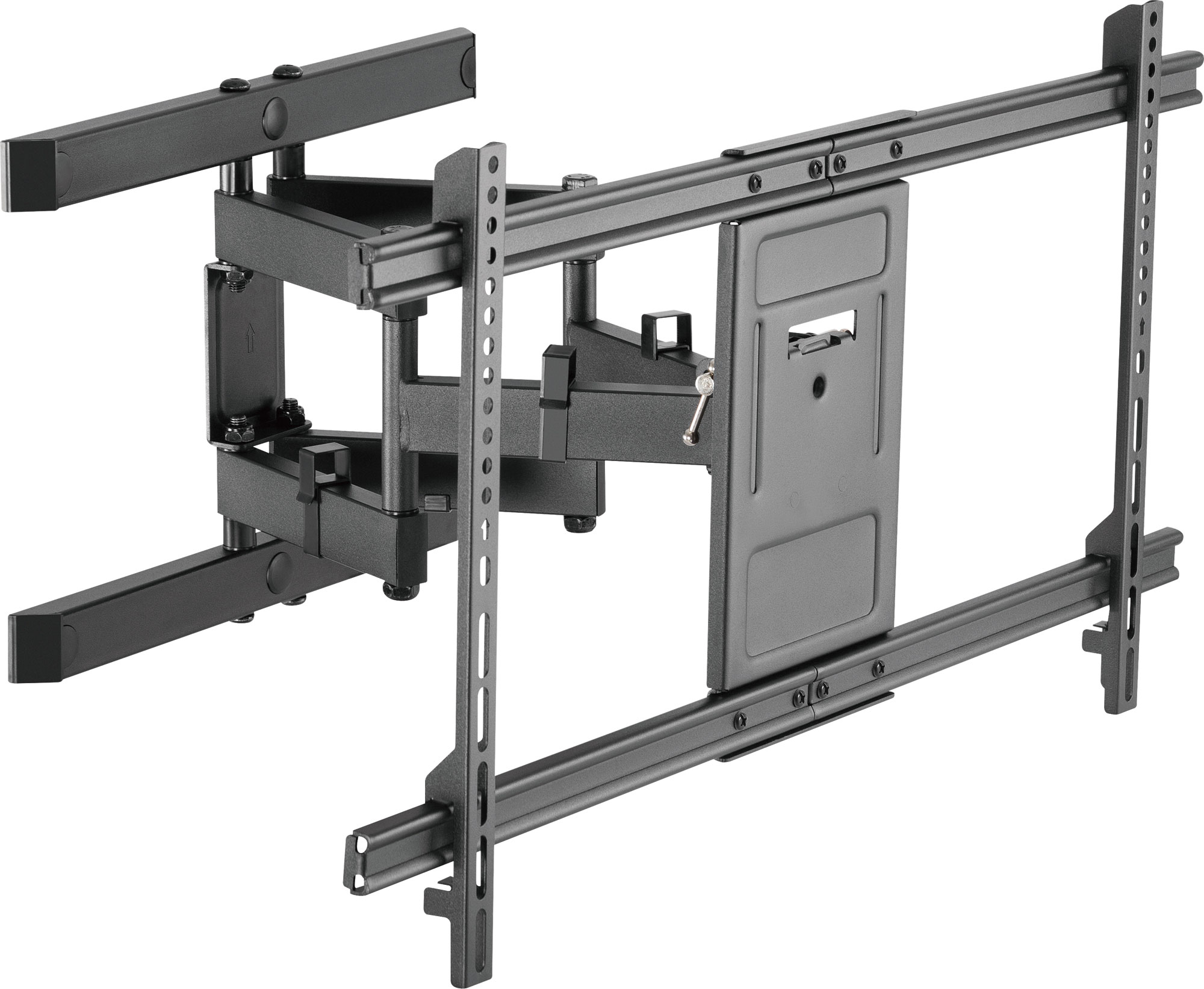

43"-90" Swivel Flat Screen Wall Bracket

Manufacturer: Dynalink
SKU: H8126C
This cantilever wall bracket is designed to mount flat or curved screens up to 60kg where quick screen adjustment is required. VESA compliant mounting dimensions from 300x300 to 800x400. +3° to -15° tilt adjustment is provided, plus swivel up to 60° in either horizontal direction.
Save $37.28 $126.36 $163.64

All Prices Shown are (ex GST)
Bulk Pricing
ea
$126.36 $163.64
2+
$126.36 $147.27
4+
$126.36 $131.82
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This cantilever wall bracket is designed to mount flat or curved screens up to 60kg where quick screen adjustment is required. VESA compliant mounting dimensions from 300x300 to 800x400. +3° to -15° tilt adjustment is provided, plus swivel up to 60° in either horizontal direction to find an optimal viewing angle, avoiding glare and reducing eyestrain when viewing.

Features

  • Low profile design - only 55mm deep!
  • +3 to 15° tilt adjustment.
  • 60° swivel adjustment.
  • Plastic mount covers provide a neat & tidy finish.
  • Cable management guides.
  • Built in levelling adjustment.
  • Makes easy forward or backward viewing angle adjustments for reduced glare and eye strain.
  • Sturdy and durable steel construction.

Specifications

Panel Type: Detachable

  • Wall Plate Type: Fixed
  • Material: Steel/Plastic/ABS
  • Surface Finish: Power Coating
  • Finish Colour: Black
  • Fit Screen Size: 43"-90", fits curved or flat TVs.
  • Mounting Hole Pattern: VESA & Universal
  • Mounting Hole (max): 800x400
  • VESA Compatible: 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400
  • Profile Depth: 77 - 428mm
  • Tilt Range: +3° to -15°
  • Swivel Range: +60° to -60°
  • Screen Level: +3° to -3°
  • Installation: Solid brick wall, double stud (406mm)
  • Weight Capacity: 60kgs
  • Dimensions: 428 x 840 x 425mm
