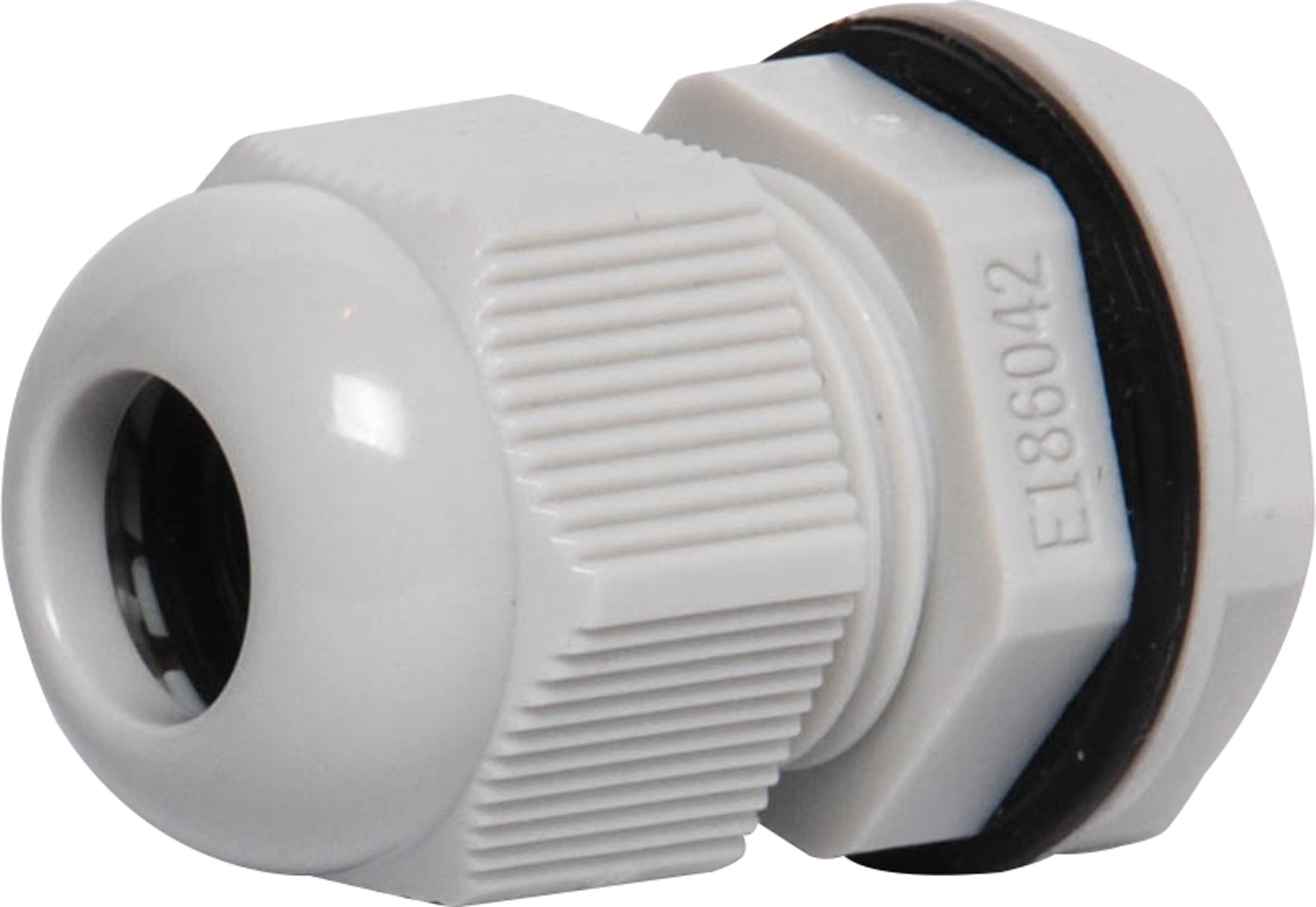

6-12mm EG13.5/PG13.5 Grey IP68 Nylon Cable Gland

Be the first to review this product
Multi-piece cable glands with rubber clamping ring for sealing cable apertures in weatherproof equipment or speaker enclosures.
SKU: H4319A
$3.00
Per ea
QuantityPrice
ea$3.00
10+$2.73
50+$2.45

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

PG13.5 size nylon cable gland with IP68 ingress protection rating. Multi-piece cable glands with rubber clamping ring for sealing cable apertures in weatherproof equipment or speaker enclosures. Standard gland suits cable diameter 6mm to 12mm. Mounting hole Ø 20mm.

Specifications

Cable Size: 6 - 12mm

  • Chassis Hole: 20mm
  • Spanner Size: 24mm
  • Colour: Grey
  • Material:PA (NYLON), UL 94
  • Hermetic seal: NBR, EPDM
  • O-Ring: EPDM
  • Working temperature:
  • - 40℃ to100℃ in static state
  • Instantaneous heat resistance up to 120℃
  • -20℃ to 80℃ in dynamic state
  • Instantaneous heat resistance up to 100℃

12 Months

We Offer 12 Months for this product
