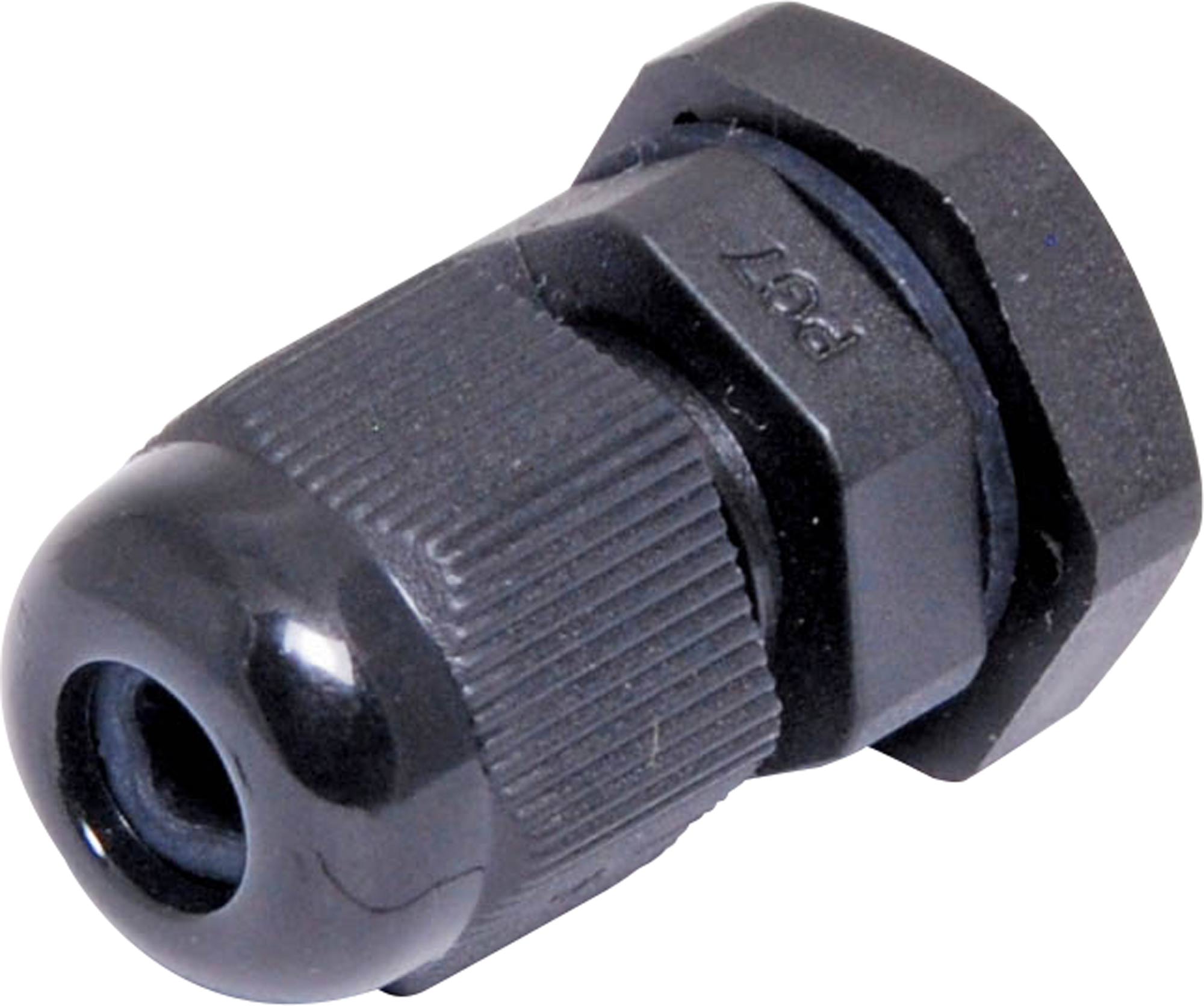

3-6.5mm EG7/PG7 Black IP68 Nylon Cable Gland

Be the first to review this product
Multi-piece cable gland with rubber clamping ring for sealing cable apertures in weatherproof equipment or speaker enclosures.
SKU: H4304A
$2.64
Per ea
QuantityPrice
ea$2.64
10+$2.36
50+$2.09

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

PG7 size nylon cable gland with IP68 ingress protection rating. Multi-piece cable glands with rubber clamping ring for sealing cable apertures in weatherproof equipment or speaker enclosures. Standard gland suits cable diameter 3mm to 6.5 mm. Mounting hole Ø 12.5mm.

Specifications

Cable Size: 3 - 6.5mm

  • Chassis Hole: 12.5mm
  • Spanner Size: 19mm
  • Colour: Black
  • Material:PA (NYLON), UL 94
  • Hermetic seal: NBR, EPDM
  • O-Ring: EPDM
  • Working temperature:
  • - 40℃ to100℃ in static state
  • Instantaneous heat resistance up to 120℃
  • -20℃ to 80℃ in dynamic state
  • Instantaneous heat resistance up to 100℃

12 Months

We Offer 12 Months for this product
