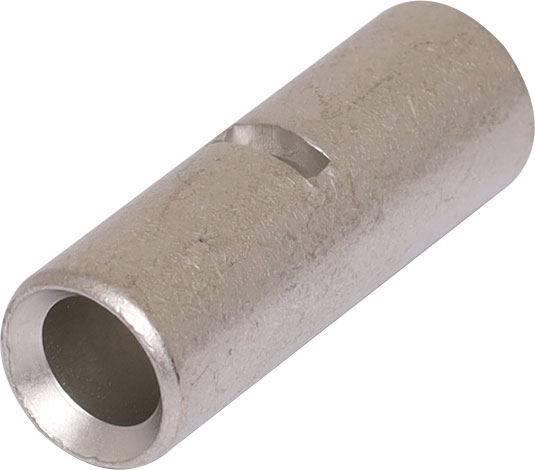

Buttsplice Crimp Joiner 6AWG Uninsulated

Be the first to review this product
This 6AWG buttsplice crimp connector can easily join together DC power cables. Constructed from tubular copper, each join requires crimping on each side of the connection. An internal stopper ensures the copper conductors a placed correctly in the crimp prior to the crimping process. When stripping your 6AWG cable, remove 12mm of sheath from each e
SKU: H1736
$1.59
Per ea
QuantityPrice
ea$1.59
4+$1.41
10+$1.27

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 6AWG buttsplice crimp connector can easily join together DC power cables. Constructed from tubular copper, each join requires crimping on each side of the connection. An internal stopper ensures the copper conductors a placed correctly in the crimp prior to the crimping process. When stripping your 6AWG cable, remove 12mm of sheath from each end of the join.

Specifications

Type: Buttsplice cable joiner

  • Cable Size: 6AWG (16mm2)
  • Cable Stripping Depth: 12mm
  • Dimensions: 26 x 9mmØ
  • Cable Entry: 5.5mmØ

12 Months

We Offer 12 Months for this product
