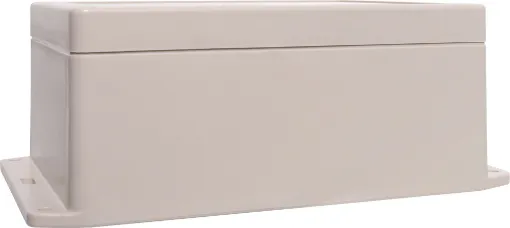

165x125x75mm IP65 Sealed ABS Flange Mount Enclosure

Manufacturer: Ritec
SKU: H0308F
This sealed ABS flange mount enclosure is manufactured by Ritec and measures 165L x 125W x 75Hmm. Its includes mounting flanges for surface mounting. Supplied with neoprene lid sealing gasket.
$31.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $31.36
4+ $28.14
10+ $25.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This sealed ABS flange mount enclosure is manufactured by Ritec and measures 165L x 125W x 75Hmm. Its includes mounting flanges for surface mounting. Supplied with neoprene lid sealing gasket. With the seal installed, these enclosures meet IP65 dust and hose proof standard. Supplied with a solid light grey lid. PCB mounting points are moulded into the enclosure base. These sturdy enclosures have 3mm thick walls and are rated to UL 94-HB (-30° to 80°C). Not UV stabilised.

External Dimensions: 165L x 125W x 75H mm

Features

  • Meets IP65 Dust and Hose-proof standards
  • Brass screw thread inserts
  • Neoprene gasket seal
  • Moulded PCB mounting points
  • Manufactured from high impact ABS
  • Useable temperature range of -40°C to +80°C

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
