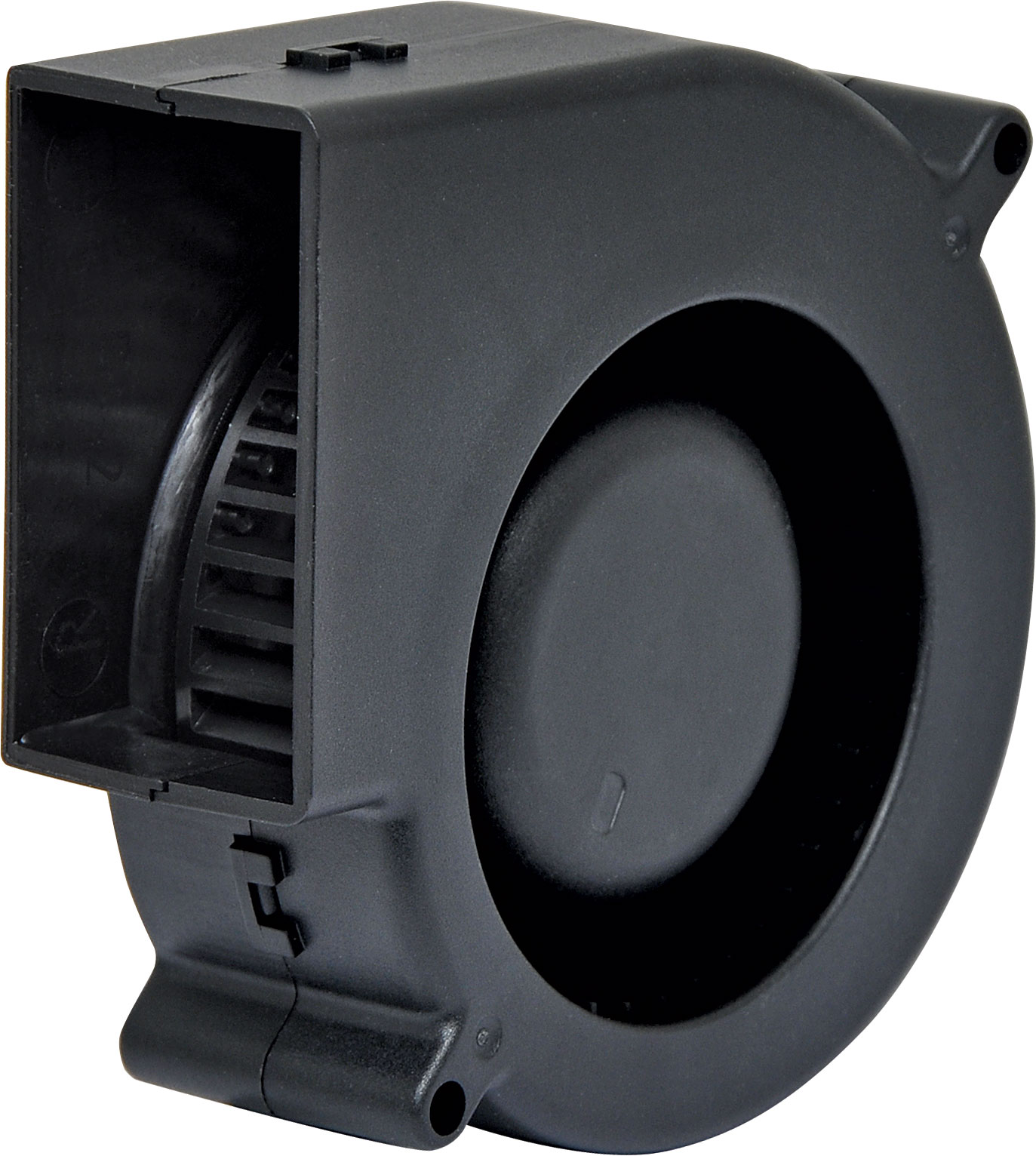

97mm 12VDC Ball Bearing Cooling Fan Blower

Manufacturer: Sunon
Be the first to review this product
Sunon PMB1297PYB1-AY(2).GN. A 12V DC 97mm Sunon Ball Bearing Cooling Fan with thermoplastic frame.
SKU: F1260
$47.23
Per ea
QuantityPrice
ea$47.23
4+$42.68
10+$37.95

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Sunon PMB1297PYB1-AY(2).GN 12V DC 97mm Ball Bearing Cooling Fan blower with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon blowers are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.


Specifications

Mechanical Characteristics

  • Motor Design: 2 phases, 4 poles brushless DC motor
  • Bearing System: Precision ball bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Single direction exhaust
  • Mounting Holes: 2x 4.5mm holes
  • Weight: 185g
  • Dimensions: 97 x 94 x 33mm

Electrical Characteristics

  • Rated Voltage: 12V DC
  • Rated Current: 600mA
  • Rated Power: 7.2W
  • Operating Voltage Range: 6~12V DC
  • Starting Voltage: 6V DC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C

Performance Characteristics

  • Rated Speed: 3600 RPM ±10%
  • Air Flow: 30.5 CFM
  • Static Pressure: 0.92 Inch-H2O
  • Noise Level: 55.8dB(A)
  • Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
  • Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
  • Protection: Automatic restart, polarity protection
