171mm 240VAC Ball Bearing Cooling Fan

Manufacturer: Sunon
Be the first to review this product

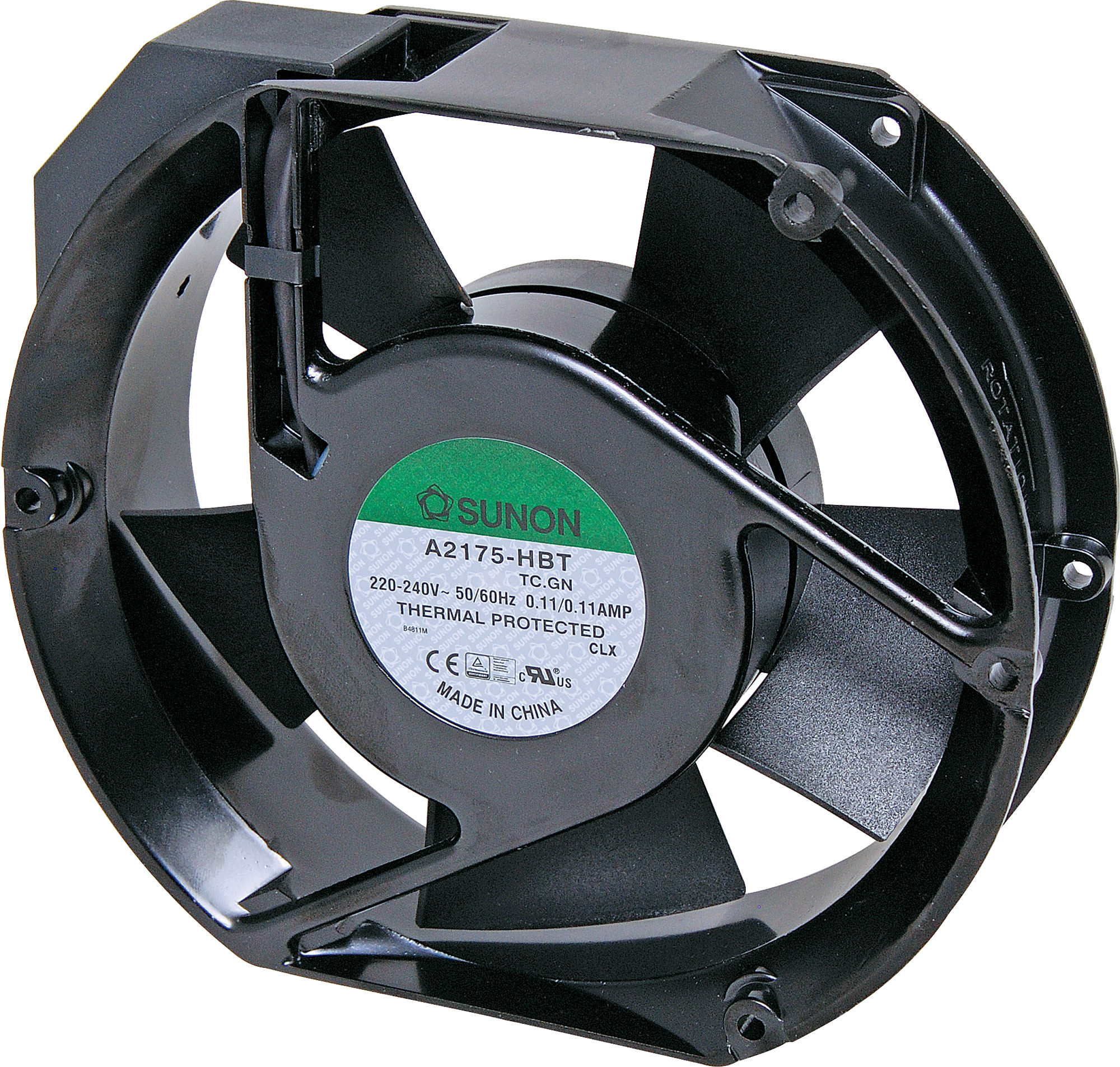

Sunon A2175-HBT.TC.GN. A 240V AC 171mm Axial Sunon Ball Bearing Cooling Fan with diecast aluminium frame.
SKU: F1170
$108.18
Per ea
QuantityPrice
ea$108.18
4+$99.09
10+$90.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Sunon A2175-HBT.TC.GN 240V AC 171mm Axial Ball Bearing Cooling Fan with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.



Specifications

Mechanical Characteristics

  • Motor Design: Alveolate motor construction
  • Motor Protection: Thermal protected
  • Bearing System: Precision ball bearing system
  • Frame Material: Die-cast aluminium
  • Blade Material: PC of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8 x 4.5mm holes
  • Weight: 908g
  • Dimensions: 171 x 151 x 51mm

Electrical Characteristics

  • Rated Voltage: 220-240V AC at 50/60Hz
  • Rated Current: 0.11/0.11A
  • Rated Power: 25/26W
  • Operating Voltage Range: 150-250V AC
  • Starting Voltage: 150V AC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C

Performance Characteristics

  • Rated Speed: 2800/3200 RPM ±10%
  • Air Flow: 203/239 CFM
  • Static Pressure: 0.62/0.69 Inch-H2O
  • Noise Level: 51/58dB(A)
  • Insulation Resistance: 500MΩ (min) at 500V DC
  • Dielectric Strength: 1800V AC for one second

12 Months

We Offer 12 Months for this product
