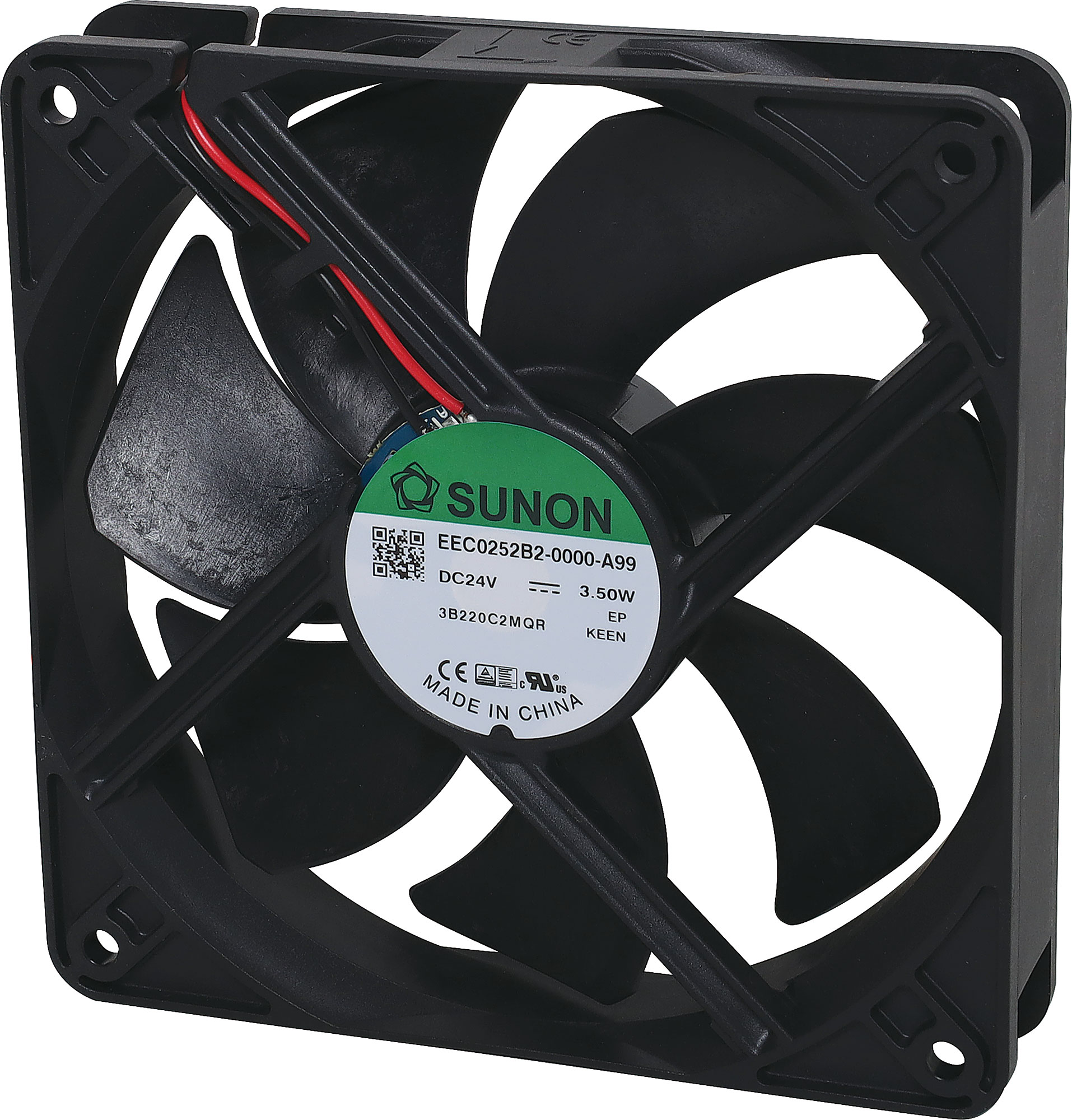

120mm 24VDC Ball Bearing Cooling Fan

Manufacturer: Sunon
Be the first to review this product
Sunon EEC0252B2-000U-A99. A 24V DC 120mm Sunon Ball Bearing Cooling Fan with thermoplastic frame.
SKU: F1162
$31.77
Per ea
QuantityPrice
ea$31.77
4+$28.64
10+$25.41

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Sunon EEC0252B2-000U-A99 24V DC 120mm Ball Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Specifications

Mechanical Characteristics

  • Motor Design: 2 phases, 4 poles, brushless DC motor
  • Bearing System: Precision ball bearing system
  • Frame/Fan Blade Material: Thermoplastic PBT of UL 94V-0
  • Rotation: Counter-clockwise (viewed from the front of the blade)
  • Mounting Holes: 8 x 4.3mmØ
  • Dimensions: 120 x 120 x 25mm
  • Weight: 157g

Electrical Characteristics

  • Rated Voltage: 24V DC
  • Rated Current: 146mA
  • Rated Power Consumption: 3.5W
  • Operating Voltage Range: 10 ~ 27.6V DC
  • Starting Voltage: 10V DC (25°C power on/off)
  • Operating Temperature Range: -10°C ~ +70°C
  • Storage Temperature Range: -40°C ~ +70°C

Performance Characteristics

  • Rated Speed: 2700 RPM ± 10% at rated voltage
  • Air Flow: 93 CFM
  • Static Pressure: 0.22 Inch-H2O
  • Insulation Class: UL Class 5
  • Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
  • Dielectric Strength: Applied 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
  • Life Expectancy: 70,000 hours at 40°C, 60% humidity, 90% CL
  • Protections: Automatic Restart, Polarity Protection
