120mm 24VDC Ball Bearing Cooling Fan

Manufacturer: Sunon
Be the first to review this product

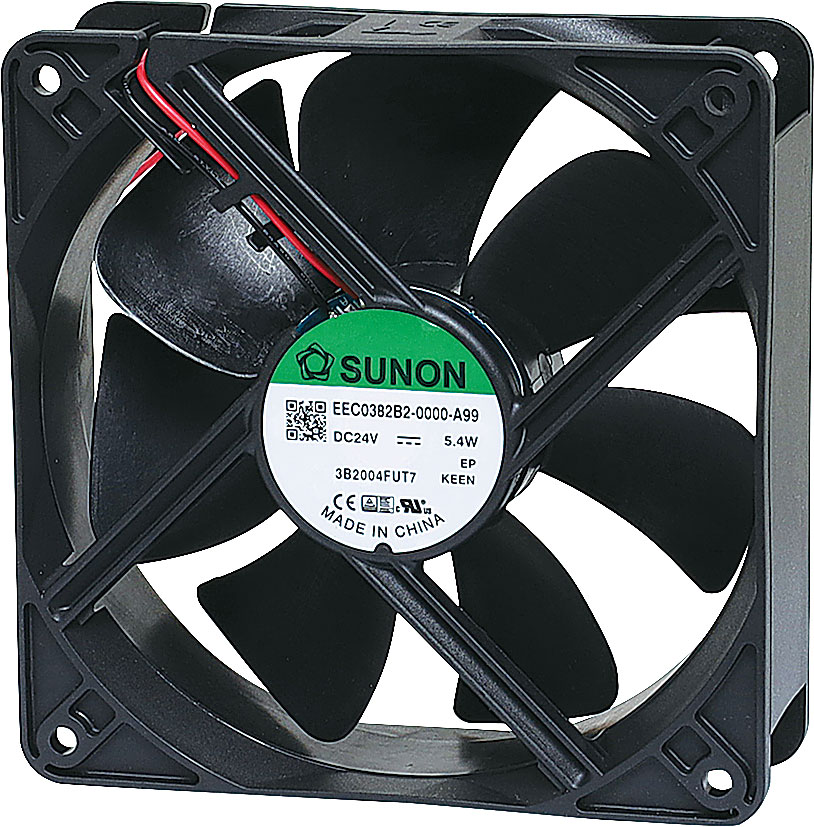

Sunon EEC0382B2-000U-A99. A 24V DC 120mm Sunon Ball Bearing Cooling Fan with thermoplastic frame.
SKU: F1161
$31.36
Per ea
QuantityPrice
ea$31.36
4+$29.32
10+$26.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Sunon EEC0382B2-000U-A99 24V DC 120mm Ball Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Specifications

Mechanical Characteristics

  • Motor Design: 2 phases, 4 poles brushless DC motor
  • Bearing System: Precision ball bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight: 214g
  • Dimensions: 120 x 120 x 38mm

Electrical Characteristics

  • Rated Voltage: 24V DC
  • Rated Current: 224mA
  • Rated Power Consumption: 5.4W
  • Operating Voltage Range: 10~27.6V DC
  • Starting Voltage: 10V DC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C

Performance Characteristics

  • Rated Speed: 2600 RPM ±10% at rated voltage
  • Air Flow: 116 CFM
  • Static Pressure: 0.26 Inch-H2O
  • Noise Level: 44dB(A)
  • Insulation Class: UL Class A
  • Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
  • Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
  • Life Expectancy: 70,000 hours at 40°C, 65% RH, 90% CL
  • Protection: Automatic restart, polarity protection
