92mm 240VAC Maglev Bearing Cooling Fan

Manufacturer: Sunon
SKU: F1158

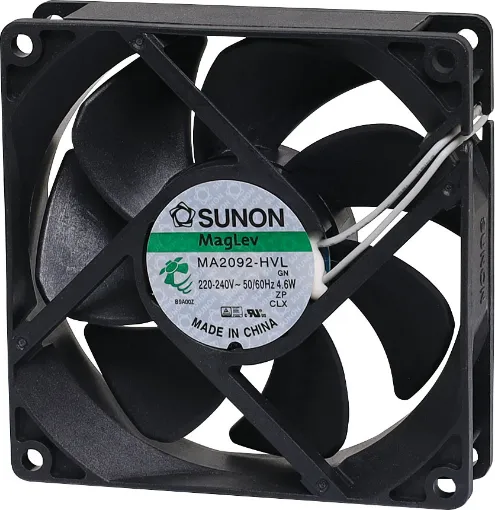

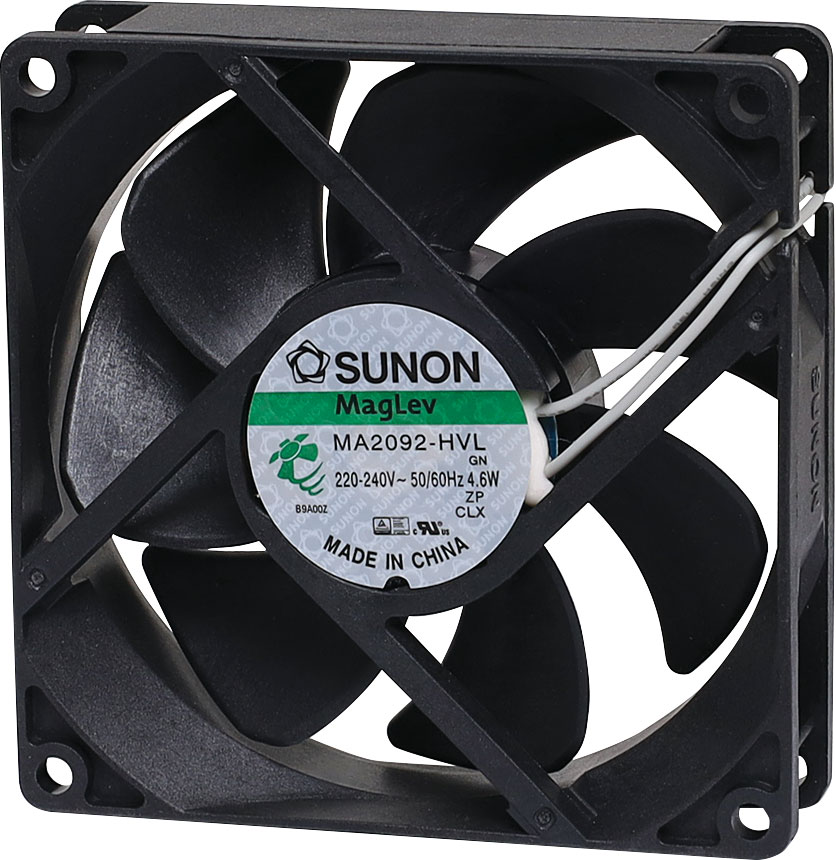

Sunon MA2092-HVL. A 240V AC 92mm Sunon Maglev/Vapo Bearing Cooling Fan with thermoplastic frame.
$45.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $45.91
4+ $41.36
10+ $36.82
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Sunon MA2092-HVL 240V AC 92mm Maglev/Vapo Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.





About Sunon Maglev Bearing Design
Sunon''s maglev bearing system provides whisper quiet operation and superior resistance to dust and debris, extending the operational lifetime of the motor.

Specifications

Mechanical Characteristics

  • Motor Design: 2 phases, 4 poles brushless DC motor
  • Motor Protection: Impedance protected
  • Bearing System: Vapo bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight: 119.7g
  • Dimensions: 92 x 92 x 25mm

Electrical Characteristics

  • Rated Voltage: 220-240V AC at 50/60Hz
  • Rated Current: 225mA (230mA max)
  • Input Power: 4.6W
  • Operating Voltage Range: 150-250V AC
  • Starting Voltage: 150V AC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C

Performance Characteristics

  • Rated Speed: 2900/3000 RPM ±20%
  • Air Flow: 52/54 CFM
  • Static Pressure: 0.12/0.14 Inch-H2O
  • Noise Level: 31/32dB(A)
  • Insulation Resistance: 10MΩ (min) at 500V DC
  • Dielectric Strength: 1500V AC for one second

Warranty & Returns

12 Months

We Offer 12 Months for this product
