120mm 240VAC Ball Bearing Cooling Fan

Manufacturer: Sunon
Be the first to review this product

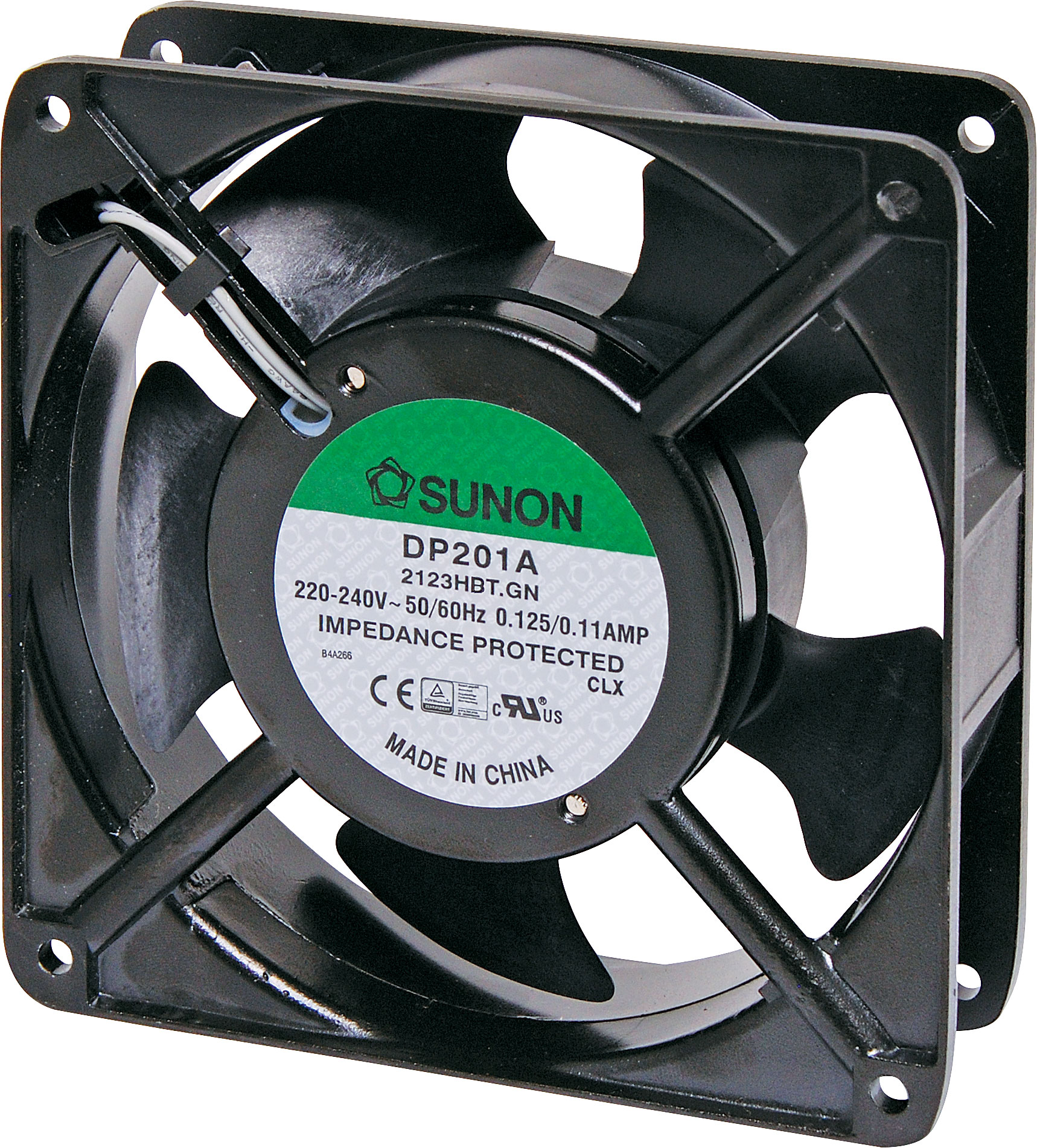

Sunon DP201A-2123HBT.GN. A 240V AC 120mm Sunon Ball Bearing Cooling Fan with diecast aluminium frame.
SKU: F1130
$31.77
Per ea
QuantityPrice
ea$31.77
4+$28.64
10+$25.41

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Sunon DP201A-2123HBT.GN 240V AC 120mm Ball Bearing Cooling Fan with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.


Specifications

Mechanical Characteristics

  • Motor Design: Shaded pole motor construction
  • Motor Protection: Impedance protected
  • Bearing System: Precision ball bearing system
  • Frame Material: Die-cast aluminium
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight: 550g
  • Dimensions: 120 x 120 x 38mm

Electrical Characteristics

  • Rated Voltage: 220-240V AC at 50/60Hz
  • Rated Current (240V AC): 0.11A
  • Rated Power (240V AC): 19W
  • Operating Voltage Range: 185-245V AC
  • Starting Voltage: 185V AC (25° Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C

Performance Characteristics (at 240V AC)

  • Rated Speed: 3050 RPM ±10%
  • Air Flow: 107 CFM
  • Static Pressure: 0.32 Inch-H2O
  • Noise Level: 50dB(A)

12 Months

We Offer 12 Months for this product
