80mm 240VAC Ball Bearing Cooling Fan

Manufacturer: Sunon
Be the first to review this product

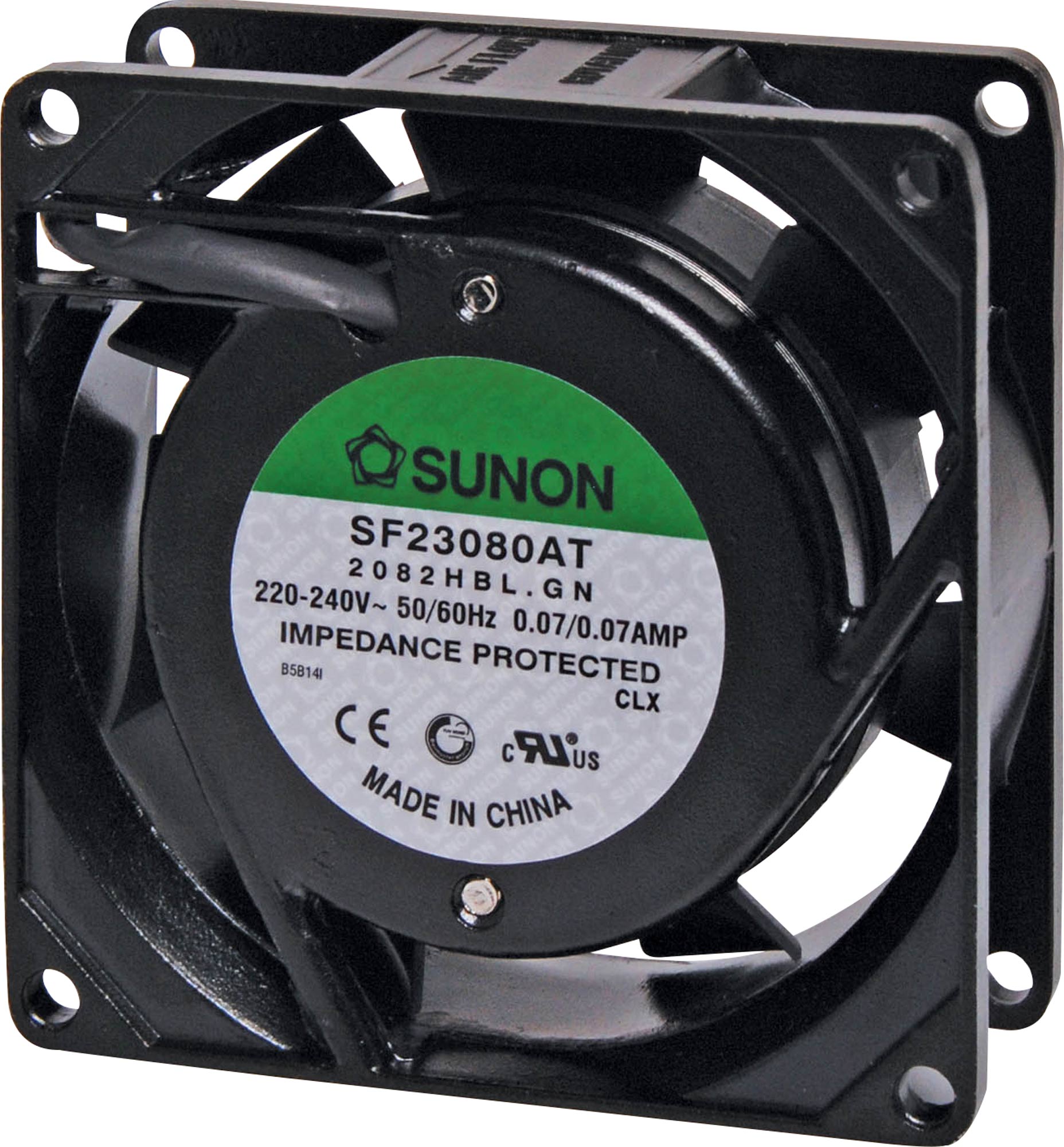

Sunon SF23080AT-2082HBL.GN. A 240V AC 80mm Sunon Ball Bearing Cooling Fan with diecast aluminium frame.
SKU: F1121
$44.50
Per ea
QuantityPrice
ea$44.50
4+$40.00
10+$35.68

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Sunon SF23080AT-2082HBL.GN 240V AC 80mm Ball Bearing Cooling Fan with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.


Specifications

Mechanical Characteristics

  • Motor Design: Shaded pole motor construction
  • Motor Protection: Impedance protected
  • Bearing System: Precision ball bearing system
  • Frame Material: Die-cast aluminium
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight: 260g
  • Dimensions: 80 x 80 x 25mm

Electrical Characteristics

  • Rated Voltage: 220-240V AC at 50/60Hz
  • Rated Current: 0.07/0.07A
  • Rated Power: 14/13.5W
  • Operating Voltage Range: 185-245V AC
  • Starting Voltage: 185V AC
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C

Performance Characteristics

  • Rated Speed: 2450/2900 RPM ±10%
  • Air Flow: 18/22 CFM
  • Static Pressure: 0.13/0.19 Inch-H2O
  • Noise Level: 30/34.5dB(A)
  • Insulation Resistance: 500MΩ at 500V DC
  • Dielectric Strength: 1500V AC for one second

12 Months

We Offer 12 Months for this product
