80mm 240VAC Ball Bearing Cooling Fan

Manufacturer: Sunon
Be the first to review this product

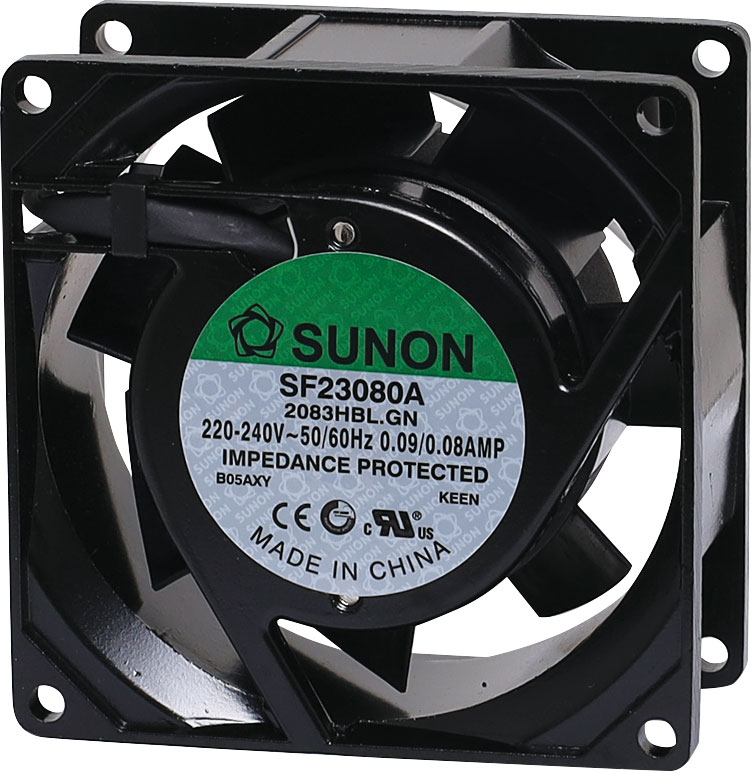

Sunon SF23080A-2083HBL.GN. A 240V AC 80mm Sunon Ball Bearing Cooling Fan with diecast aluminium frame.
SKU: F1120
$43.18
Per ea
QuantityPrice
ea$43.18
4+$38.86
10+$34.55

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Sunon SF23080A-2083HBL.GN 240V AC 80mm Ball Bearing Cooling Fan with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.


Specifications

Mechanical Characteristics

  • Motor Design: Shaded pole motor construction
  • Motor Protection: Impedance protected
  • Bearing System: Precision ball bearing system
  • Frame Material: Die-cast aluminium
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight: 340g
  • Dimensions: 80 x 80 x 38mm

Electrical Characteristics

  • Rated Voltage: 220-240V AC at 60/50Hz
  • Rated Current:
  • Rated Power:
  • Operating Voltage Range: 185-245V AC
  • Starting Voltage: 185V AC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C

Performance Characteristics

  • Rated Speed: 2400/2850 RPM ±10%
  • Air Flow: 24/31 CFM
  • Static Pressure: 0.13/0.19 Inch-H2O
  • Noise Level: 32/36.5dB(A)

12 Months

We Offer 12 Months for this product
