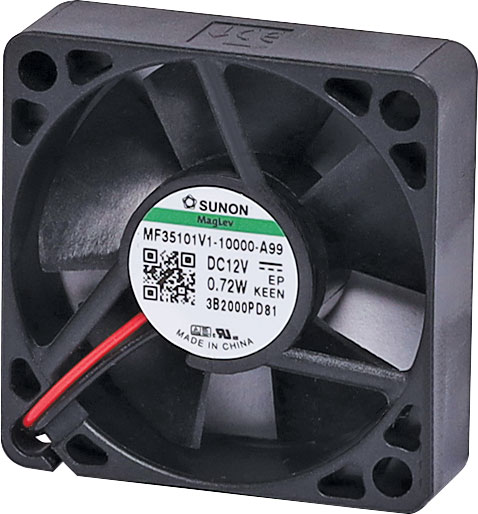

35mm 12VDC Maglev Bearing Cooling Fan

Manufacturer: Sunon
Be the first to review this product
Sunon MF35101V1-1000U-A99. A 12V DC 35mm Sunon Maglev/Vapo Bearing Cooling Fan with thermoplastic frame.
SKU: F1105
$19.95
Per ea
QuantityPrice
ea$19.95
4+$18.14
10+$16.14

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Sunon MF35101V1-1000U-A99 12V DC 35mm Maglev/Vapo Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.





About Sunon Maglev Bearing Design
Sunon''s maglev bearing system provides whisper quiet operation and superior resistance to dust and debris, extending the operational lifetime of the motor.

Specifications

Mechanical Characteristics

  • Motor Design: Single phase, 4 poles brushless DC motor
  • Bearing System: Vapo bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 3x 3.2mm holes
  • Weight: 10.5g
  • Dimensions: 35 x 35 x 10mm

Electrical Characteristics

  • Rated Voltage: 12V DC
  • Rated Current: 60mA (69mA max)
  • Rated Power Consumption: 0.72W (0.83W max)
  • Operating Voltage Range: 6~13.8V DC
  • Starting Voltage: 6V DC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C

Performance Characteristics

  • Rated Speed: 10,000 RPM ±15% at rated voltage
  • Air Flow: 7.2 CFM
  • Static Pressure: 0.22 Inch-H2O
  • Noise Level: 28dB(A)
  • Insulation Class: UL Class A
  • Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
  • Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
  • Life Expectancy: 60,000 hours at 40°C, 65% RH, 90% CL
  • Protection: Automatic restart, polarity protection

12 Months

We Offer 12 Months for this product
