120mm 240VAC Sleeve Bearing Cooling Fan

Manufacturer: Sunon
Be the first to review this product

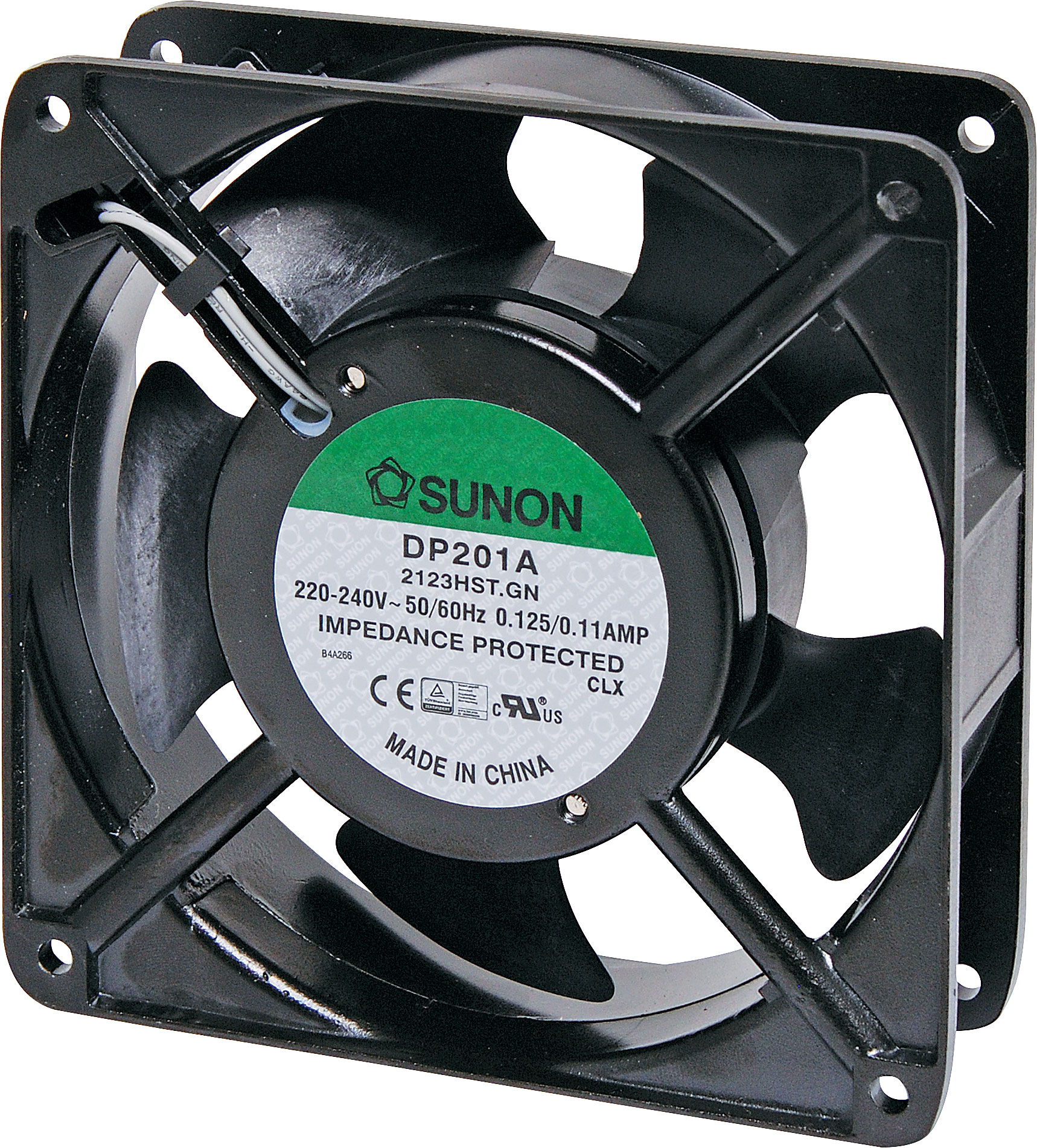

Sunon DP201A-2123HST.GN. A 240V AC 120mm Sunon Sleeve Bearing Cooling Fan with diecast aluminium frame.
SKU: F1030
$20.86
Per ea
QuantityPrice
ea$20.86
4+$18.86
10+$16.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Sunon DP201A-2123HST.GN 240V AC 120mm Sleeve Bearing Cooling Fan with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.


Specifications

Mechanical Characteristics

  • Motor Design: Shaded pole motor construction
  • Motor Protection: Impedance protected
  • Bearing System: Lubricated sleeve bearing system
  • Frame Material:Die-cast aluminium
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight: 550g
  • Dimensions: 120 x 120 x 38mm

Electrical Characteristics

  • Rated Voltage: 220-240V AC at 50/60Hz
  • Rated Current: 0.125/0.11A
  • Rated Power: 20/19W
  • Operating Voltage Range: 185-245V AC
  • Starting Voltage: 185V AC (25°C Power On/Off
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C

Performance Characteristics

  • Rated Speed: 2550/2900 RPM ±10%
  • Air Flow: 85/105 CFM
  • Static Pressure: 0.25/0.30 Inch-H2O
  • Noise Level: 43/48dB (A)
  • Insulation Resistance: 500MΩ (min) at 500V DC
  • Dielectric Strength: 1800V AC for one second
