80mm 240VAC Sleeve Bearing Cooling Fan

Manufacturer: Sunon
Be the first to review this product

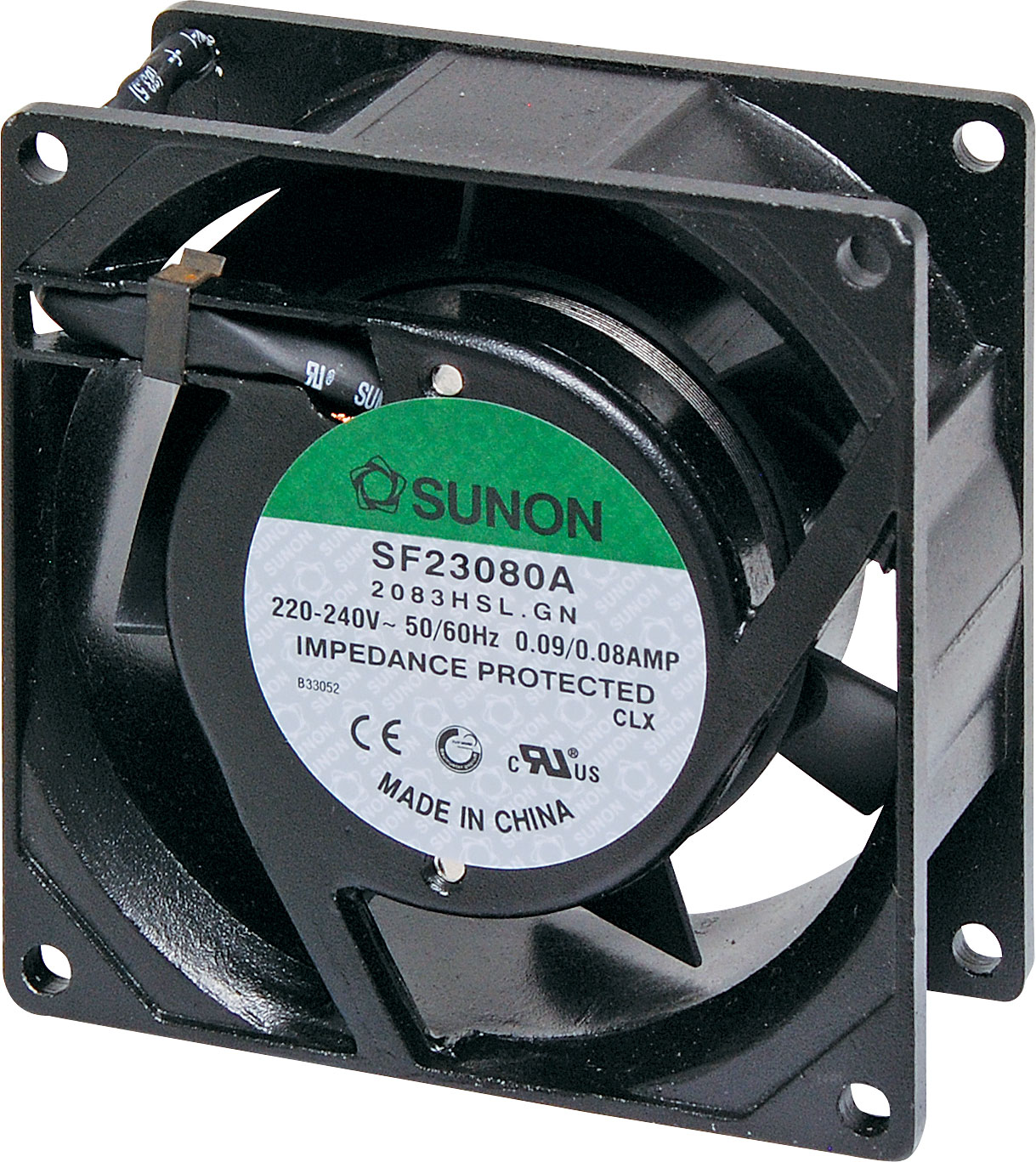

Sunon SF23080A-2083HSL.GN. A 240V AC 80mm Sunon Sleeve Bearing Cooling Fan with die cast aluminium frame.
SKU: F1020
$36.32
Per ea
QuantityPrice
ea$36.32
4+$32.68
10+$29.05

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Sunon SF23080A-2083HSL.GN 240V AC 80mm Sleeve Bearing Cooling Fan with die cast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.


Specifications

Mechanical Characteristics

  • Motor Design: Shaded pole motor construction
  • Motor Protection: Impedance protected
  • Bearing System: Lubricated sleeve bearing system
  • Frame Material: Die-cast aluminium
  • Blade Material: Thermoplastic PBT of UL 94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the blade
  • Lead Wire: UL3266, 24AWG, Grey
  • Mounting Holes: 8x 4.5mm holes
  • Weight: 340g
  • Dimensions: 80 x 80 x 38mm

Electrical Characteristics

  • Rated Voltage: 220-240V AC
  • Rated Current: 0.09/0.08A
  • Rated Power: 18/16W
  • Operating Voltage Range: 185-245V AC
  • Starting Voltage: 185V AC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C

Performance Characteristics

  • Rated Speed: 2300/2750 RPM ±10%
  • Air Flow: 23.0/30.0 CFM
  • Static Pressure: 0.12/0.18 Inch-H2O
  • Noise Level: 31.0/35.0dB(A)
  • Insulation Resistance: 500MΩ (min) at 500V DC
  • Dielectric Strength: 1500V AC for one second

12 Months

We Offer 12 Months for this product
