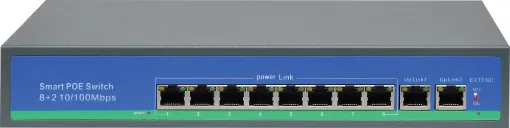

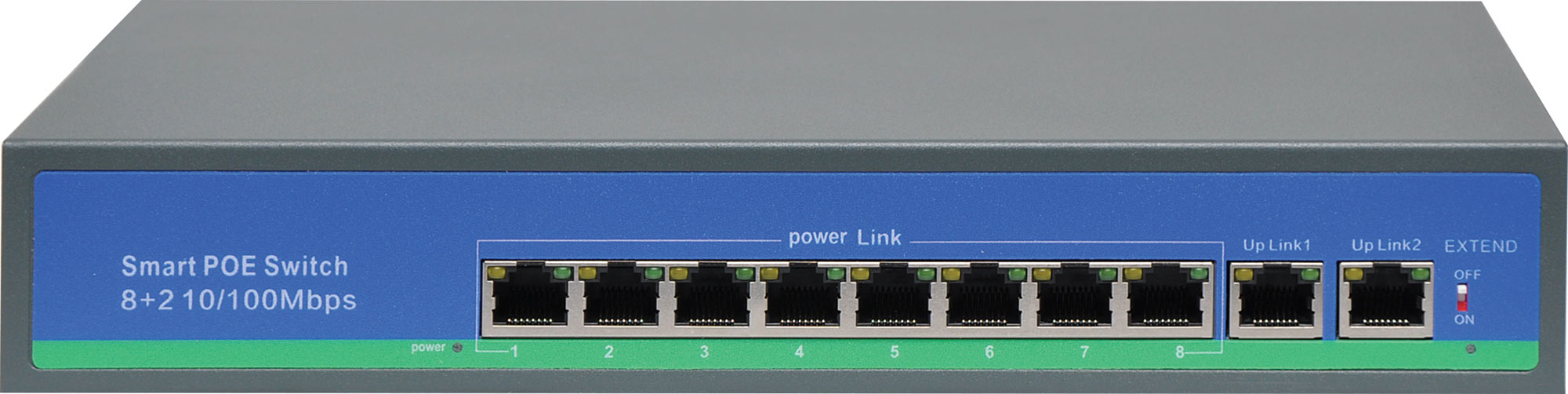

8 Port + 2 Link Ports PoE 10/100 Switch For IP Camera Systems

Be the first to review this product
Designed to deliver both power and ethernet connection to IEEE 802.3af compliant Powered Devices (PDs) such as IP cameras. Includes 8 PoE output ports, plus 2 link ports for connection back to the network video recorder.
SKU: DE4213A
$240.91
Per ea
QuantityPrice
ea$240.91
2+$222.73
4+$200.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Designed to deliver both power and ethernet connection to IEEE 802.3af compliant Powered Devices (PDs) such as IP cameras. Includes 8 PoE output ports, plus uplink port for connection back to the network video recorder.

8 Port + link port

Specifications

POE Port: 1 to 8 support IEEE802.3AF/AT Standard

  • Output Power: 15.4W/30W IEEE802.3af/at
  • Power Pin: Both 1/2+,3/6- and 4/5+7/8-
  • Whole Power: ≤150W (52V 1.8A)
  • POE Portocol: IEEE 802.3af/IEEE 802.3at
  • POE Type: End-span
  • Power Distance: ≤150m
  • Network Standard: IEEE 802.3, IEEE802.3u,802.3x,802.3af/at
  • Network Medium: 10/100BASE-TX:5 class and above non shielded twisted pair
  • Data Distance: ≤150m
  • Switch Capability: 1.6Gbps
  • Forwarding Mode: Store and forward
  • Forwarding Rate: 10BASE-T:14880PPS/port, 100BASE-tx:14800pps/port
  • MAC Address: MAC address table 1K
  • Port Function: Power priority mechanism, fast and forward, MAC automatic learning and aging, IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
  • LED Indicator: Each port occupied 1 LINK/ACT.100Mbps, POE Status Indicator, Whole power indicator
  • Working Environment: Working temperature:-10°-- 55°C
  • Weight: 1.7kg
  • Size: 270mm*180mm*44mm(L*W*H)

12 Months

We Offer 12 Months for this product
