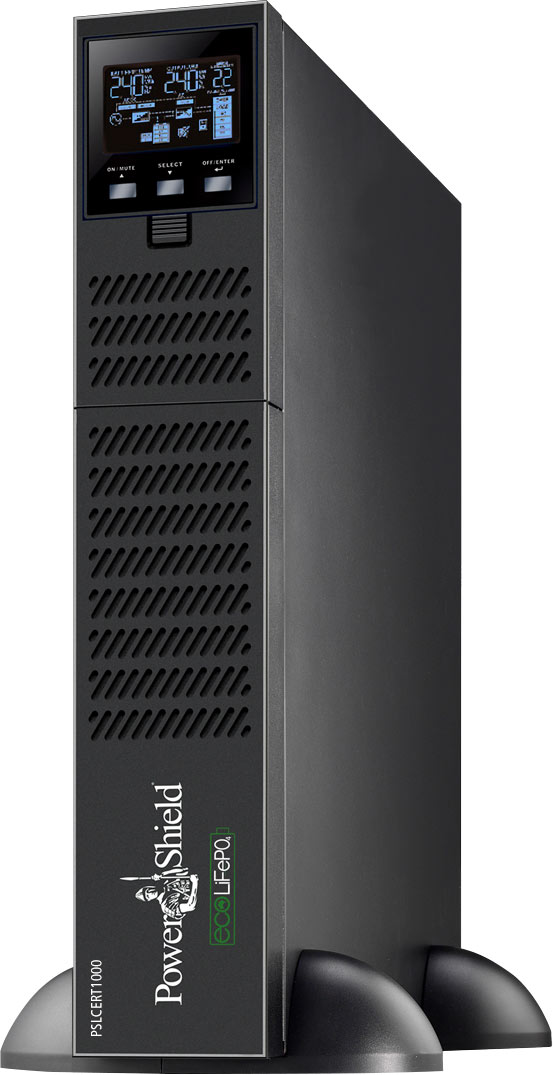

Centurion RT LiFePO4 PSLCERT1000 1000VA UPS

Manufacturer: PowerShield
Be the first to review this product
features true online double conversion and a Lithium-iron Phosphate advantage that includes extended battery life, lighter weight, faster recharge, higher performance and higher power density.
SKU: DA0920
$3,289.09
Per ea
Quantity Price
ea $3,289.09
2+ $2,989.58

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Centurion LiFePO4 features true online double conversion and a Lithium-iron Phosphate advantage that includes extended battery life, lighter weight, faster recharge, higher performance and higher power density. As our highest single phase power density UPS, this sophisticated range will provide the most comprehensive protection for mission-critical devices such as sensitive networks, computers, servers, telecom applications, as well as industrial applications.

Visit the PowerShield UPS Sizing Guide. which will help you select the correct UPS for your power protection needs.

Features

  • True double-conversion
  • HID comms via USB
  • Output power factor 0.9
  • User-friendly and electronic easy-shift LCD display
  • Rack or Tower design
  • Advanced ECO mode for energy saving
  • Generator compatible
  • Programmable power management outlets
  • Emergency Power Off function (EPO)
  • Hot swappable battery design
  • Ideal for medium density power protection
  • Extra large charger

Specifications

Capacity: 1000VA/900W

  • Topology: True online double- conversion,Pure Sine Wave
  • Safety / EMC / RoHS: EN62040-1-1 2003, IEC60950-1-1 / EN62040-2 2006 / Directive 2011/65/EU

Input

  • Voltage Range
  • - Low Line Transfer: 160Vac / 140Vac / 120 / 110Vac ± 5 %
  • (based on load percentage 100%-80% / 80%-70% / 70%-60% / 60%-0)
  • - Low Line Comeback: 175Vac / 155Vac / 135Vac / 125Vac ± 5%
  • - High Line Transfer: 300Vac ± 5 %
  • - High Line Comeback: 290Vac ± 5 %
  • Frequency Range: 40Hz - 70Hz
  • Phase: Single phase with ground
  • Power Factor Correction: = 0.99 @ nominal voltage (100% load)

Output

  • Output Power Factor: 0.9
  • Output Voltage (AC Mode): 240Vac (Selectable 200/208/220/230/240Vac)
  • Voltage Regulation (Batt. Mode): ± 1%
  • Frequency Range (Batt. Mode): 50Hz or 60Hz ±1Hz
  • Current Crest Ratio: 3:1 (max.)
  • Transfer
  • - AC Mode to Batt. Mode: Zero
  • - Inverter to Bypass: 4ms (Typical)
  • Waveform (Batt. Mode): Pure Sine Wave

Efficiency

  • ECO Mode (Advanced): 96%
  • Battery Mode: 87%

Battery

  • Battery: LiFePO4
  • Typical Recharge Time: 2hrs
  • Backup Time:
  • - 25% Load: 44 mins
  • - 50% Load: 22 mins
  • - 75% Load: 14 mins
  • - 100% Load: 11 mins

Protection

  • Full Protection: Overload, discharge, thermal, short circuit and overcharge protection
  • Surge Protection: 1872 Joules / 39000 Amps

Communications and Management

  • Interface: USB or RS232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact
  • Software: PowerShield® NetGuard® software - supports Windows, Linux, Unix and Mac based operating systems
  • HID: Supports Windows, Apple, Linux, NAS and various industrial controllers
  • LCD Display/Alarm: UPS Status, Load & Battery Level, Input/Output Voltage, Batt. Time Remaining and Fault Indicators
  • Audible Alarm: Battery Mode, Bypass Mode, Low Battery (Batt. Mode), Fault, Overload

Physical

  • Dimensions: 380D x 438W x 88H mm
  • Weight: 10.2kg

Operating Environment

  • Temperature: 0-40°C
  • Humidity: 20 - 90% (RH Non-condensing)
  • Noise Level: < 50dBA @ 1 Meter


5 Years

We Offer 5 Years for this product
