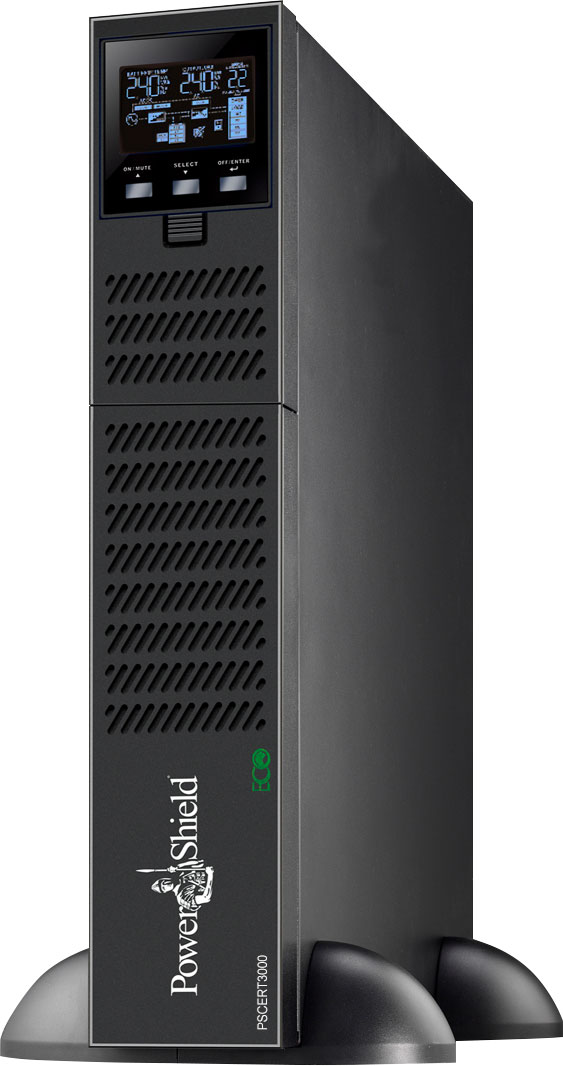

Centurion RT PSCERT3000 3000VA Pure Sine Wave UPS

Manufacturer: PowerShield
Be the first to review this product
Perfect for servers, motor driven and sensitive devices requiring a perfect sinewave to operate correctly. LCD provides real time battery management, showing battery and load level. All outlets are battery backup and surge protected.
SKU: DA0903
$2,813.64
Per ea
QuantityPrice
ea$2,813.64
2+$2,563.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The PowerShield PSCERT3000 is a true online double conversion UPS with the highest single phase power density in the PowerShield UPS range. Boasting an output power factor of 0.9, this will fully protect mission critical devices as it can support larger loads than UPS products of an equal VA rating.

The Centurion RT has an energy saving Advanced ECO mode, which allows the unit to operate at very high efficiency, up to 98%. When the utility mains input voltage is within the ECO range the UPS saves energy by passing the mains supply directly through to the load, while the inverter continues to operate in a passive mode.

Visit the PowerShield UPS Sizing Guide. which will help you select the correct UPS for your power protection needs.

Features

  • True Online Double Conversion
  • Wide input voltage range (110-300 VAC)
  • Input power factor correction 0.98
  • 50Hz/60Hz frequency converter mode
  • Programmable power outlets
  • Emergency power off function (EPO)
  • Eco-mode operation for energy saving (ECO)
  • Generator compatible
  • Backup time for all models is easily extended by simply plugging additional battery banks
  • Charger capacity expansion to 8A for long-run models
  • USB+RS232 + SNMP + AS400 multiple communications
  • Maintenance Bypass Switch available

Specifications

Capacity: 3000VA/2700W

  • Voltage range:
  • -Low line transfer: 160VAC/140VAC/120VAC/110VAC ± 5 %,
  • ( based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)
  • – Low line comeback: 170/150/130/120VAC ±5%
  • – High line transfer: 300VAC ±5%
  • – HIgh line comeback: 290VAC ±5%
  • Frequency Range: 40-70Hz
  • Phase: Single phase with ground
  • Power factor correction: =0.99@100% nominal load

Output:

  • Voltage (selectable): 240VAC (Selectable 208, 220, 230, 240VAC)
  • AC Voltage regulation (Battery mode): ±1%
  • Frequency range (Battery mode): 50Hz or 60Hz ±1%
  • Current Crest Ratio: 5:1
  • Transfer time: 4ms

Efficiency:

  • ECO Mode: 98%
  • Battery mode: 87%

Battery:

  • Battery type: 12V 9Ah x 6
  • Quantity: 6pcs
  • Typical recharge time: 4 hours recover to 90% capacity
  • Charging current (max): 1.5A

Indicators:

  • LCD Panel: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

Alarms:

  • Battery mode: Sounding every 4 seconds
  • Low battery: Sounding every second
  • Overload: Sounding twice every second
  • Fault: Continuously sounding

Physical:

  • Dimensions: 600D x 438W x 88H 2RU mm
  • UPS Net weight: 29.6kg

Environment:

  • Operational humidity: 20-90 % RH @ 0- 40°C (non-condensing)
  • Noise: Less than 50dBA @ 1 Meter

Management:

  • Smart RS232, USB: PowerShield NetGuard® Software - Supports Windows Based Operating Systems, Linux & Unix


2 Years

We Offer 2 Years for this product
