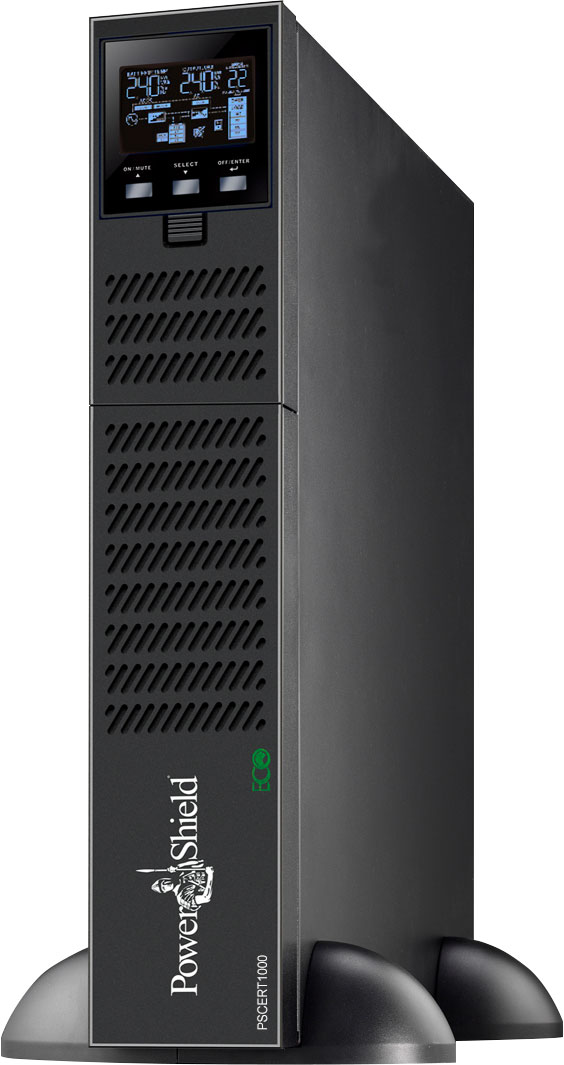

Centurion RT PSCERT1000 1000VA Pure Sine Wave UPS

Specifications

Capacity: 1000VA/800W

• Voltage range:
• -Low line transfer: 160VAC/140VAC/120VAC/110VAC ± 5 %,
• ( based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)
• – Low line comeback: 175VAC ±5%
• – High line transfer: 300VAC ±5%
• – High line comeback: 290VAC ±5%
• Frequency Range: 47.5Hz - 52.5Hz or 57Hz - 63Hz
• Phase: Single phase with ground
• Power factor: =0.98

Output:

• Voltage (selectable): 240VAC (Selectable 208, 220, 230VAC)
• AC Voltage regulation (Battery mode): ±3%
• Frequency range (Synchronised range): 47Hz - 53Hz or 57Hz - 63Hz
• Frequency range (Battery mode): 50Hz ± 0.25Hz or 60Hz ± 0.3Hz
• Current Crest Ratio: 3:1
• Harmonic Distortion: =3% THD (linear load), =6% THD (non linear load)
• Transfer time:
• – AC mode to battery mode: Zero
• – Inverter to bypass: 4ms (typical)
• Waveform: Pure Sine wave

Efficiency:

• AC Mode: 85%
• Battery mode: 83%

Battery:

• Battery type: 12V 9Ah
• Quantity: 3pcs
• Typical recharge time: 4 hours recover to 90% capacity
• Charging current (max): 1.0A
• Charging voltage: 41.0VDC ±1%

Indicators:

• LCD Panel: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

Alarms:

• Battery mode: Sounding every 4 seconds
• Low battery: Sounding every second
• Overload: Sounding twice every second
• Fault: Continuously sounding

Physical:

• Dimensions: 420D x 438W x 88H 2RU mm
• UPS Net weight: 16kg

Environment:

• Operational humidity: 20-90 % RH @ 0- 40°C (non-condensing)
• Noise: Less than 45dBA @ 1 Meter

Management:

• Smart RS232, USB: PowerShield NetGuard® Software - Supports Windows Based Operating Systems, Linux & Unix
