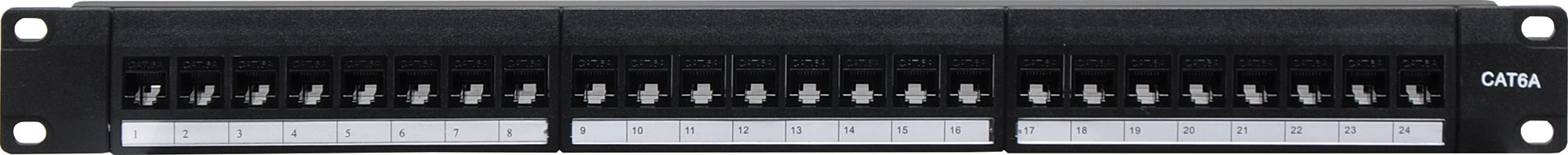

24 Port 1RU Enhanced Cat6A Patch Panel

SKU: D5137A
This 1RU panel is fitted with 24 RJ45 "back to back" coupler ports for tool free cable termination. Port numbers fields can be written on and fitted securely behind a clear lexan. Black finish. Includes rear cable support bar with earthing strap.
$104.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $104.55
4+ $95.45
10+ $82.68
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This 1RU panel is fitted with 24 RJ45 ‘back to back’ coupler ports for tool free cable termination. Port numbers fields can be written on and fitted securely behind a clear lexan. Black finish. Includes rear cable support bar.

Specifications

Electrical Specifications

  • Voltage Rating: 125V AC RMS
  • Current Rating: 1.5A
  • Contact Resistance: 100milliohms (max)
  • Insulation Resistance: 1000megohms (min @ 500V DC)
  • Dielectric Strength: 750V AC RMS @ 60Hz for 1 minute

Environmental Specifications

  • Storage Temperature: -40°C ~ +85°C
  • Operating Temperature: 0°C ~ +70°C

Mechanical Specifications

  • Housing Material: PC
  • Panel Frame: Carbon steel, black powder coated
  • PCB Material: FR-4 T=1.6mm
  • IDC Material: PC
  • Contact: Phosphor bronze with nickel plating
  • RJ45 Jack Life: 750 times (min)
  • IDC Life: 200 times (min)
  • Wire Gauge: 22-26AWG

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
