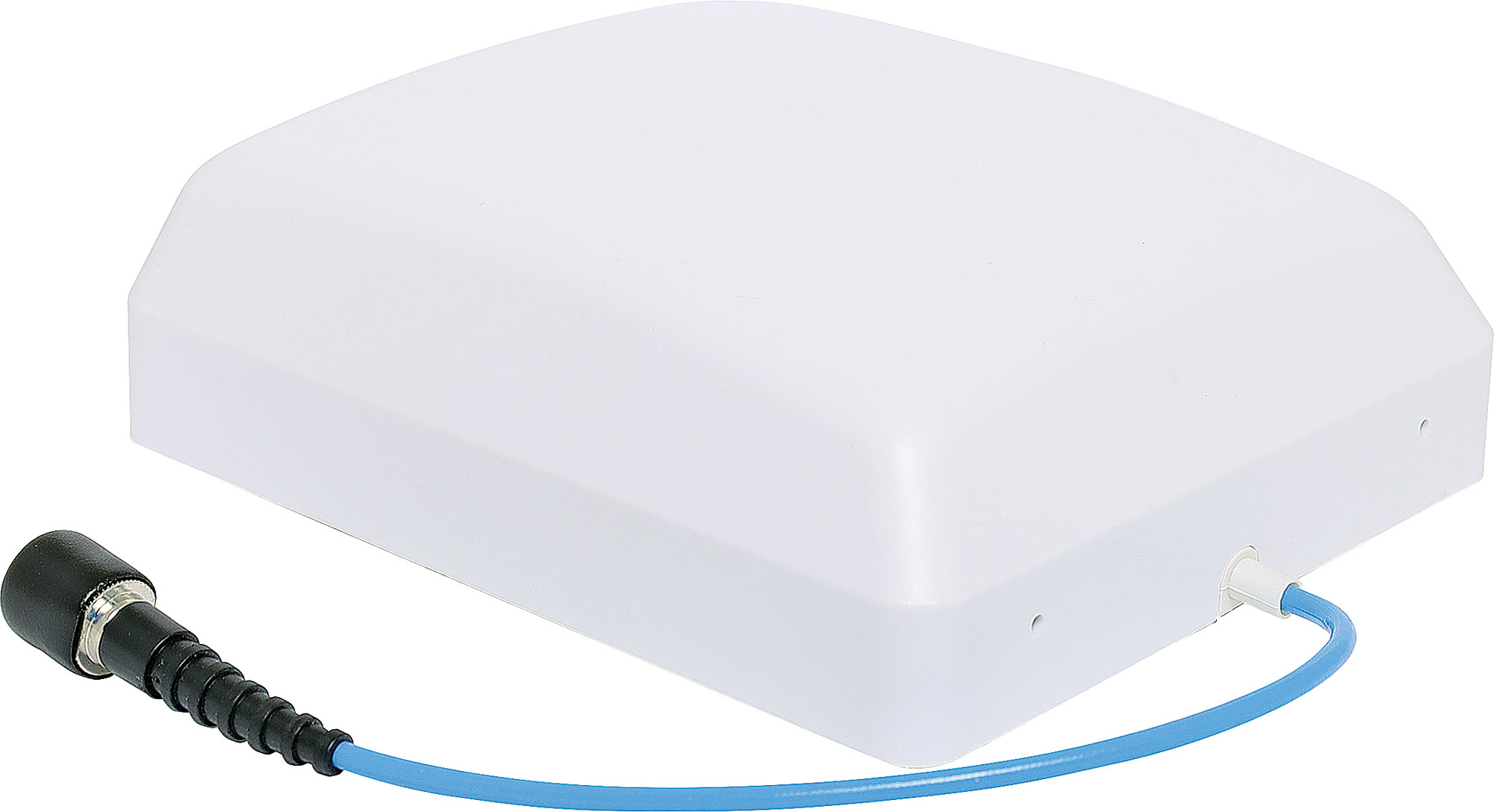

Blackhawk 7/8dBi Wall Mount Panel Antenna

Manufacturer: Blackhawk Antennas
Be the first to review this product
The Blackhawk Indoor Wall Mount Antenna is designed to operate with all mobile  carriers in mind, regardless of what frequency they operate on.
SKU: D4437
$113.64
Per ea
Quantity Price
ea $113.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Blackhawk Indoor Wall Mount Antenna is designed to operate with all mobile  carriers in mind, regardless of what frequency they operate on. Offering a 7/8dB gain this antenna is suitable as an indoor antenna or panel  antenna, that can be mounted on a wall for repeater applications. Designed to operate with all AU 4G/5G mobile carriers.

Provides a 7dbi gain for 698-960 MHz
Provides a 8dbi gain for 1710-2600 MHz

Specifications

Frequency Range: 698-960 MHz / 1710-2600MHz

  • VSWR: <1.5
  • Input Impedance: 50Ω
  • Gain: 7/8dBi
  • Polarization Type: Line polarization
  • E-Plane Beamwidth: 65°
  • H-Plane Beamwidth: 90°
  • F/B Ratio: =23dB
  • Max Power: 50W
  • Lightning Protection: DC ground
  • Connector Type: "N Type" Female
  • RG58/U Cable Length: 300mm
  • Radome Material: UV-Resistant ABS
  • Radome Colour: White
  • Working Temperature: -40°C ~ +60°C
  • Weight: 600g
  • Dimensions: 210 x 180 x 44 mm

Features

  • 5G Ready antenna design.
  • UV resistant ABS casing with robust aluminium internal structure.
  • Designed to operate with all AU 4G/5G mobile carriers.
  • Suitable for indoor or outdoor use.
  • Suitable for repeater installations.
  • Covered by Blackhawk Antennas 5 Year warranty.

5 Years

We Offer 5 Years for this product
