Blackhawk 4G & IOT Adhesive Antenna 700 To 2700MHz

Manufacturer: Blackhawk Antennas
Be the first to review this product
The Blackhawk 4G & IoT adhesive mount antenna is a modest performing mobile antenna that covers most worldwide 4G cellular bands between 700 and 2700 MHz.
SKU: D4422
$27.23
Per ea
QuantityPrice
ea$27.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

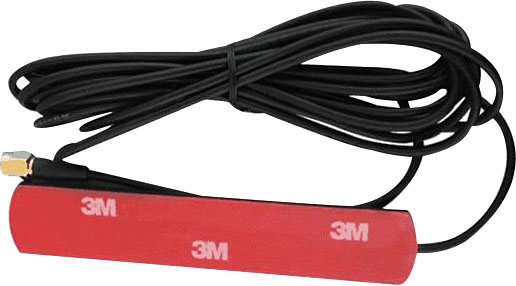

The Blackhawk 4G & IoT adhesive mount antenna is a mobile antenna that covers most worldwide 4G cellular bands between 700 and 2700 MHz. It is commonly used to improve 4G signal strength in metering and telemetry.

Adhesive antennas are compact in design which allows unobtrusive and convenient installation in vehicles, machinery, and electronic signage. This type of antenna design contains a simple PCB micro-strip element which has been shaped to transmit across the entire wide operating frequency range with high efficiency. While peak gain is not an important consideration in this type of antenna, the model provides a stable gain of around 3 dBi which is quite typical of this design.

Outside of its use in IoT and telemetry, the antenna is a very popular choice as the service antenna for Cel-Fi GO repeaters installed in vehicles.

Features

  • 3 dBi gain across lower bands 698 to 960 MHz
  • 3 dBi gain across upper bands 1710 to 2700 MHz
  • Mounting by 3M adhesive
  • SMA Male connector
  • Cable length 3 meters

Specifications

Electrical

  • Frequency Range (MHz): 698-960 / 1710-2700 MHz
  • Input Impedance: 50Ω
  • VSWR: =3.0:1
  • Gain: 3 dBi
  • Polarisation Type: Linear
  • Radiation Direction: Omnidirectional
  • Maximum Input Power: 10W

Mechanical

  • Antenna Length: 115 x 21 x 3 mm
  • Cable Length: 3m
  • Connect Type: SMA Male
  • Mounting: 3M Adhesive
  • Radome Colour: Black
  • Cable: RG174
  • Suction Strength: 70g

12 Months

We Offer 12 Months for this product
