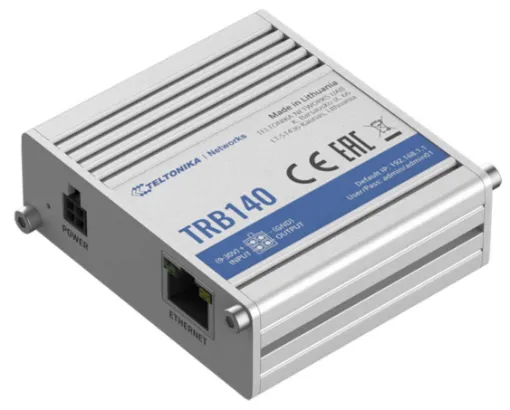

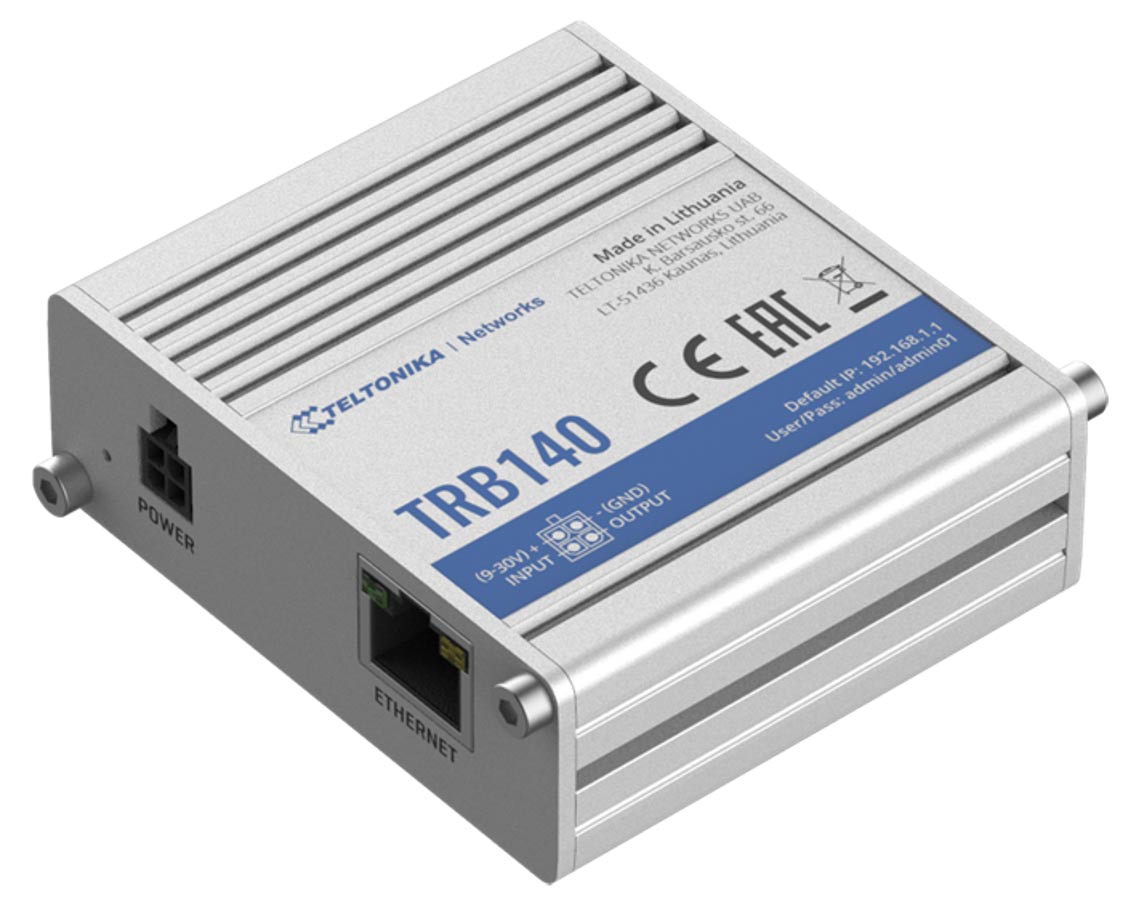

Teltonika TRB140 4G LTE Ethernet Gateway

Be the first to review this product
TRB140 is an ultra-small, lightweight, and energy-efficient industrial gateway equipped with mission-critical LTE Cat 4 capabilities, Gigabit Ethernet interface, digital Inputs/Outputs, and micro-USB port. Because of its compact design, this product is perfect for projects and applications where a sole gadget requires reliable internet connectivit
SKU: D4364
$366.37
Per ea
Quantity Price
ea $366.37

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

TRB140 is an ultra-small, lightweight, and energy-efficient industrial gateway equipped with mission-critical LTE Cat 4 capabilities, Gigabit Ethernet interface, digital Inputs/Outputs, and micro-USB port. Because of its compact design, this product is perfect for projects and applications where a sole gadget requires reliable internet connectivity. TRB140 is specially engineered to be used in the industrial sector and has a wide range of software security features, such as SMS control, Firewall, Open VPN, IPsec, Remote Management System (RMS), and FOTA support.

Features:

  • 4G/LTE (Cat 4), 3G, 2G
  • Rugged aluminium housing
  • Easy to use, secure and feature rich OpenWRT based operating system
  • Wide range of supported power supply voltages
  • Small size, easy installation
  • Compatible with Teltonika Networks Remote Management System

Specifications

MOBILE

  • Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
  • Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.
  • SMS/Call SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities
  • USSD Supports sending and reading Unstructured Supplementary Service Data messages
  • Black/White list Operator black/white list
  • Band management Band lock, Used band status display
  • APN Auto APN
  • Bridge Direct connection (bridge) between mobile ISP and device on LAN
  • Passthrough Gateway assigns its mobile WAN IP address to another device on LAN
  • Multiple PDN Possibility to use different PDNs for multiple network access and services (optional)

ETHERNET

  • LAN 1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
  • NETWORK
  • Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
  • Routing Static routing
  • Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • Firewall Port forwards, traffic rules, custom rules
  • DHCP Static and dynamic IP allocation
  • QoS / Smart Queue Management (SQM) (planned) Traffic priority queuing by source/destination, service, protocol or port
  • DDNS Supported >25 service providers, others can be configured manually
  • SSHFS Possibility to mount remote file system via SSH protocol

SECURITY

  • Authentication Pre-shared key, digital certificates, X.509 certificates
  • Firewall Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
  • Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • Mobile quota control Set up custom data limits for SIM card
  • WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
  • Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

  • OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
  • OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
  • IPsec IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
  • GRE GRE tunnel
  • PPTP, L2TP Client/Server services can run simultaneously, L2TPv3 support
  • ZeroTier ZeroTier VPN
  • WireGuard WireGuard VPN client and server support

MODBUS

  • MODBUS TCP SLAVE
  • ID filtering Respond to one ID in range [1;255] or any
  • Allow remote access Allow access through WAN
  • Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
  • MODBUS TCP MASTER
  • Supported functions 01, 02, 03, 04, 05, 06, 15, 16
  • Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

MQTT GATEWAY

  • Gateway Allows sending commands and receiving data from MODBUS Master through the MQTT broker
  • DNP3
  • Supported modes TCP Master, DNP3 Outstation

DATA TO SERVER

  • Protocol HTTP(S), MQTT, Azure MQTT, Kinesis

MONITORING & MANAGEMENT

  • WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log
  • FOTA Firmware update from sever, automatic notification
  • SSH SSH (v1, v2)
  • SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
  • Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
  • TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • MQTT MQTT Broker, MQTT publisher
  • SNMP SNMP (v1, v2, v3), SNMP trap
  • JSON-RPC Management API over HTTP/HTTPS
  • MODBUS MODBUS TCP status/control
  • RMS Teltonika Remote Management System (RMS)

IoT PLATFORMS

  • Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
  • ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
  • Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
  • Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server

SYSTEM CHARACTERISTICS

  • CPU ARM Cortex-A7 1.2 GHz CPU
  • RAM 128 MB (50 MB available for userspace)
  • FLASH storage 512 MB (200 MB available for userspace)

FIRMWARE / CONFIGURATION

  • WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
  • FOTA Update FW/configuration from server
  • RMS Update FW/configuration for multiple devices
  • Keep settings Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

  • Operating system RutOS (OpenWrt based Linux OS)
  • Supported languages Busybox shell, Lua, C, C++
  • Development tools SDK package with build environment provided

INPUT/OUTPUT

  • Configurable I/O 2 x Configurable Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA (not available in TRB140*2****)
  • Output control HTTP POST/GET, Schedule
  • Events SMS, EMAIL
  • I/O juggler Allows to set certain I/O conditions to initiate event

POWER

  • Connector 4 pin industrial DC power socket
  • Input voltage range 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max
  • PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
  • Power consumption < 5 W

PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM)

  • Ethernet 1 x RJ45 port, 10/100/1000 Mbps
  • I/Os 2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB140*2****)
  • USB 1 x Virtual network interface via micro USB
  • Status LEDs 3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED
  • SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
  • Power 1 x 4 pin DC connector
  • Anntena 1 x SMA for LTE
  • Reset Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATIONS

  • Casing material Aluminum housing
  • Dimensions (W x H x D) 74.5 x 25 x 64.4 mm
  • Weight 134 g
  • Mounting options Bottom and sideways DIN rail, Flat surface
  • OPERATING ENVIRONMENT
  • Operating temperature -40 °C to 75 °C
  • Operating humidity 10 % to 90 % non-condensing
  • Ingress Protection Rating IP30
  • REGULATORY & TYPE APPROVALS
  • Regulatory CE/RED, EAC, RoHS, WEEE

EMI

  • Standards Draft ETSI EN 301 489-1 V2.2.0, Draft ETSI EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0
  • ESD EN 61000-4-2:2009
  • RS EN 61000-4-3:2006 + A1:2008 + A2:2010
  • EFT EN 61000-4-4:2012
  • Surge protection EN 61000-4-5:2014
  • CS EN 61000-4-6:2014
  • DIP EN 61000-4-11:2004

RF

  • Standards EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-1 V11.1.2, EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2

SAFETY

  • Standards IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017
  • EN 50385:2017
  • EN 62232:2017
