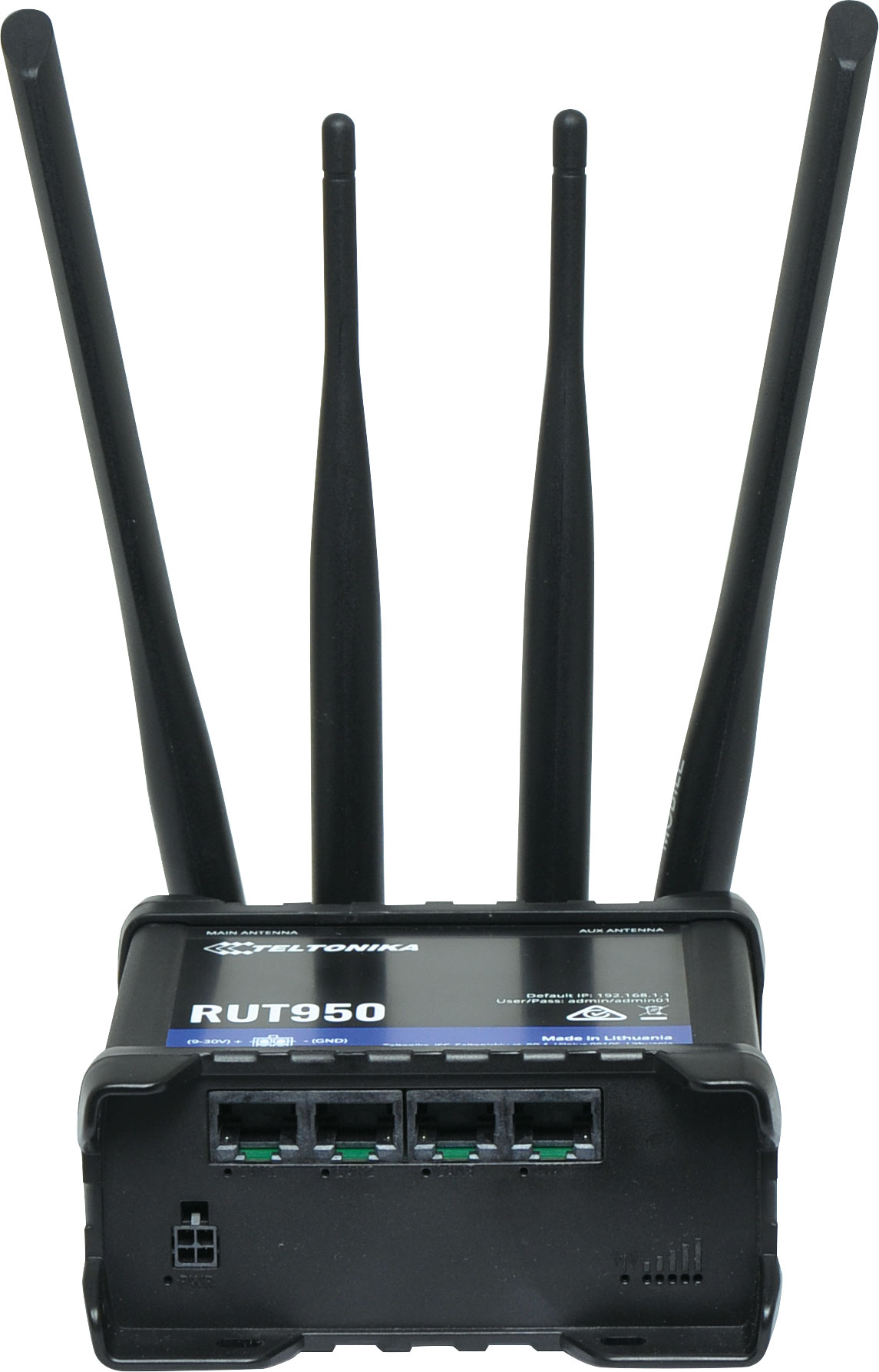

Teltonika RUT950 WiFi LTE Mobile Router

Be the first to review this product
This router is ideal for people who&bdquod like to share their internet on the go, as it is not restricted by a cumbersome cable connection. Unrestricted, but not forgotten: the router still supports internet distribution via a broadband cable, simply plug it in to the wan port, set the router to a correct mode and you are ready to browse.
SKU: D4361
$517.27
Per ea
Quantity Price
ea $517.27

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Teltonika RUT950 is highly reliable and secure LTE router for professional applications. Router delivers high performance, mission-critical cellular communication. RUT950 is equipped with connectivity redundancy through dual SIM failover. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location. Dimensions: 80 x 106 x 46 mm (H x W x D)

Features

  • RUT950 is highly reliable and secure LTE router for professional applications
  • Support LTE Cat 4 up to 150 Mbps
  • Automatic switch to available backup connection
  • Wireless Access Point with Hotspot functionality
  • Increase connection reliability with automatic SIM switching
  • 4x Ethernet ports with VLAN functionality
  • Teltonika Remote Management System compatible
  • Worldwide support

Specifications

Mobile module: 4G (LTE) - Cat 4 up to 150 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps

  • Supported Bands: 4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B28; 4G (LTE-TDD): B40; 3G: B1, B2, B5, B8; 2G: B2, B3, B5, B8
  • SIM: switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
  • Status: Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
  • Bridge: Direct connection (bridge) between mobile ISP and device on LAN
  • SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto reply, SMPP
  • Black/White list: Operator black/white list
  • Multiple PDN (optional): Possibility to use different PDNs for multiple network access and services
  • Band management: Band lock, Used band status display
  • Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
  • Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customisable landing page
  • TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems
  • CPU: Atheros Wasp, MIPS 74Kc, 550 MHz
  • RAM: 128 MB, DDR2
  • FLASH memory: 16 MB SPI Flash
  • Power Connector: 4 pin industrial DC power socket
  • Input voltage range: 9 - 30 VDC (4 pin industrial socket), reverse polarity protection; surge protection >31 VDC 10us max
  • PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
  • Power consumption: < 2 W idle, < 7 W Max
  • Ethernet: 4 x RJ45 ports, 10/100 Mbps, 1 x WAN and 3 x LAN
  • Status: LEDs 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
  • SIM: 2 x SIM slots (Mini SIM - 2FF, 2st form factor), 1.8 V/3 V, external SIM holders
  • Inputs/Outputs: 1 x Digital Input, 1 x Digital Open Collector Output on power connector
  • Power: 4 pin industrial DC power socket
  • Antennas: 2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors
  • Reset: Reset/restore to default button
  • Casing: material Aluminium housing, plastic panels
  • Dimensions: 80 x 106 x 46 mm (H x W x D)
  • Weight: 235 g
  • Mounting options: DIN rail (can be mounted on two sides), flat surface placement
  • Operating temperature: -40 °C to 75 °C
  • Operating humidity: 10% to 90% non-condensing
  • Ingress Protection Rating: IP30
  • MTBF: 270000 hrs

12 Months

We Offer 12 Months for this product
