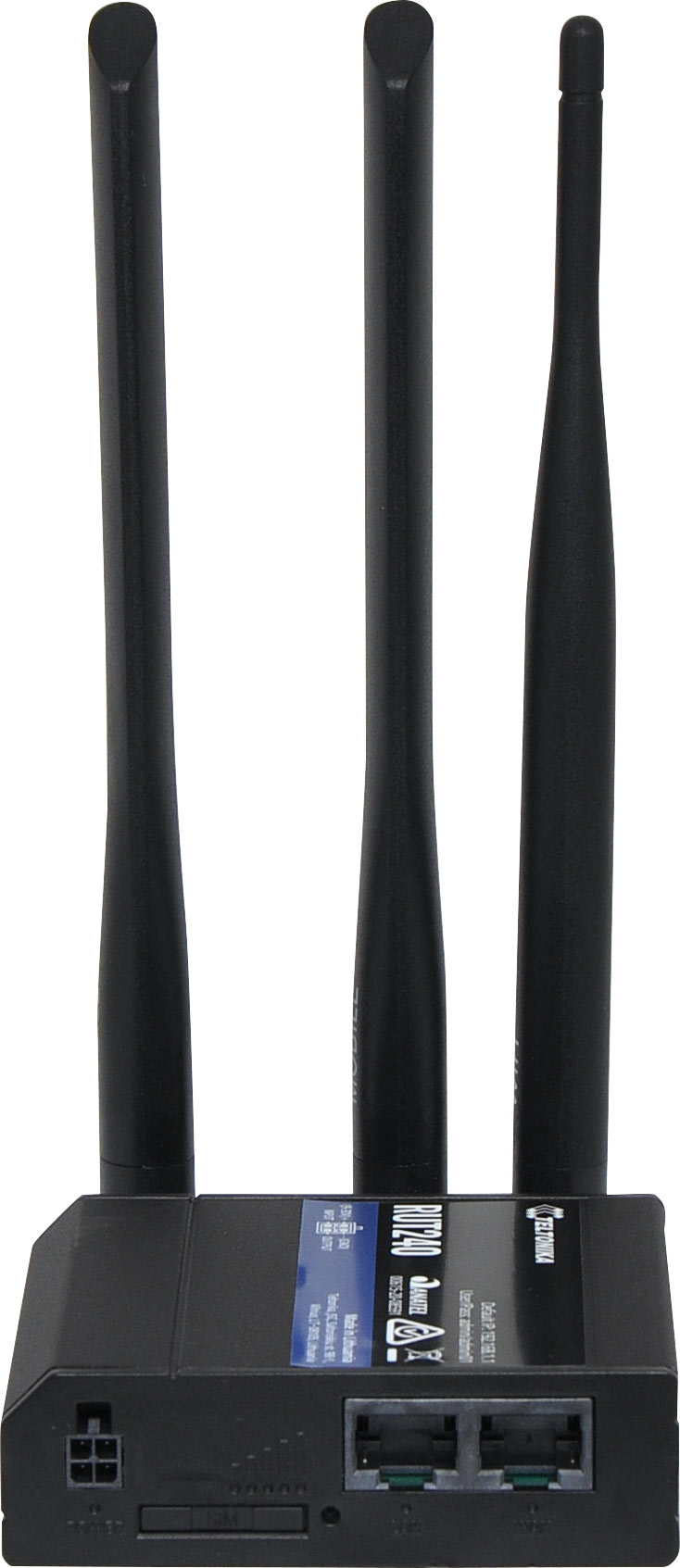

Teltonika RUT240 WiFi LTE Router

Specifications

Mobile

• Mobile module: 4G (LTE) - Cat 4 up to 150 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps
• Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received
• Bridge: Direct connection (bridge) between mobile ISP and device on LAN
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• Black/White list (optional): Operator black/white listMultiple PDN (optional)Possibility to use different PDNs for multiple network access and services
• Band management: Band lock, Used band status display

Wireless

• Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• WiFi: WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter
• WiFi security: WPA2-Enterprise - PEAP, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, Client separation
• SSID: SSID stealth mode and access control based on MAC address
• WiFi users: Up to 50 simultaneous connections
• Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

Ethernet

• WAN: 1 x WAN port (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
• LAN: 1 x LAN port, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

• Routing: Static routing, Dynamic routing (Optional - BGP, OSPF v2, RIP v1/v2)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMNP, MQTT
• VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall: Port forward, traffic rules, custom rules
• DHCP: Static and dynamic IP allocation, DHCP Relayd
• QoS: Traffic priority queuing by source/destination, service, protocol or port, traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS: Supported >25 service providers, others can be configured manually
• Network backup: VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
• Load balancing: Balance your internet traffic over multiple WAN connections
• NetSnapper (optional): Mobile connection management, data compression VPN client (not available in standard FW)
• SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW)

Security

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• WiFi security: WPA2-Enterprise - PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes, Client separation
• VLAN: Tag based VLAN separation
• Mobile quota control: Set up custom data limits for the SIM card
• WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods
• OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
• IPsec: IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
• GRE: GRE tunnel
• PPTP, L2TP: Client/Server services can run simultaneously
• Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs'' code
• SSTP: SSTP client instance support

Monitoring & Management

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log
• FOTA: Firmware update from sever, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• TR-069 (optional): OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems
• MQTT: MQTT Broker, MQTT publisher
• SNMP: SNMP (v1, v2, v3), SNMP trap
• JSON-RPC: Management API over HTTP/HTTPS
• MODBUS: MODBUS TCP status/control
• RMS: Teltonika Remote Management System (RMS)

System Characteristics

• CPU: Atheros Hornet, MIPS 24Kc, 400 MHz
• RAM: 64 MB, DDR2
• FLASH memory: 16 MB SPI Flash

Firmware/Configuration

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
• FOTA: Update FW/configuration from server
• RMS: Update FW/configuration for multiple devices
• Keep settings: Update FW without losing current configuration

Firmware Customization

• Operating system: RutOS (OpenWrt based Linux OS)
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: GPL package with built environment provided

Input/Output

• Input: 1 x Digital Input
• Output: x Digital Output
• Events: SMS, EMAIL, RMS

Power

• Connector: 4 pin industrial DC power socket
• Input voltage range: 9 - 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max
• PoE (passive): Passive Poe over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at
• Power consumption: < 5 W

Physical Interfaces

• Ethernet: 2 x RJ45 ports, 10/100 Mbps
• Status LEDs: 3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED
• SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
• Power: 4 pin DC connector with 1 x Digital input and 1 x Digital output
• Antennas: 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors
• Reset: Reset/restore to default button

Physical Specifications

• Casing material: Aluminum housing, plastic panels
• Dimensions: 83 x 74 x 25mm (H x W x D)
• Weight: 125 g
• Mounting options: Bottom and sideways DIN rail mounting slots

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10% to 90% non-condensing
• Ingress Protection Rating: IP30
• MTBF: 310000 h

Regulatory & Type Approvals

• Regulatory: CE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance (in progress)
• Operator: Verizon, AT&T
• Vehicle: ECE R10 (E-mark) (planned)

EMI Immunity

• Standards: Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-52 V1.1.0
• FCC 47 CFR Part 15B (2017), ANSI C63.4 (2014)
• ESD: EN61000-4-2:2009
• RS: EN 61000-4-3:2006 + A1:2008 + A2:2010
• EFT: EN 61000-4-4:2012
• Surge protection: EN 61000-4-5:2006
• CS: EN 61000-4-6:2009
• DIP: EN 61000-4-11:2004
