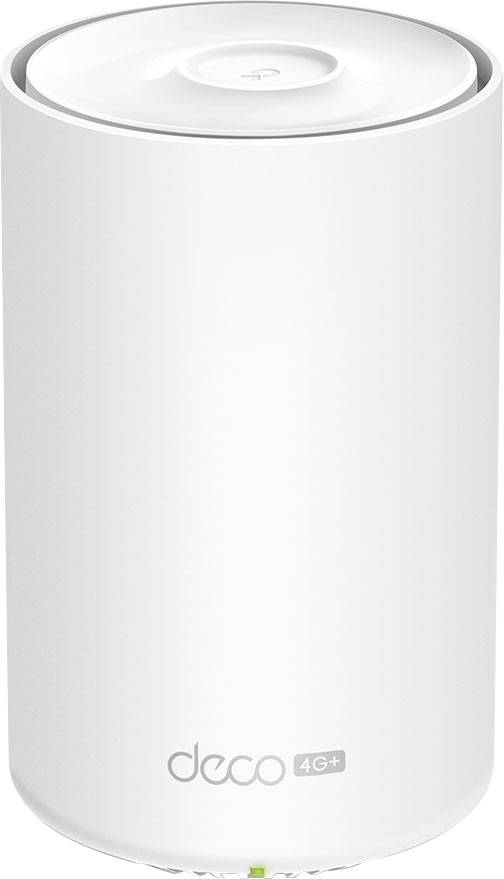

DECO X20-4G AX1800 4G+ Mesh WiFi 6 Gateway

Manufacturer: TP-Link
SKU: D4345A
Armed with a built-in 4G+ modem, WiFi 6, and TP-Link Mesh technology, Deco X20-4G delivers hassle-free 4G internet sharing with a superior whole-home mesh WiFi experience. Plug your SIM card in and enjoy!
$453.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $453.64
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Armed with a built-in 4G+ modem, WiFi 6, and TP-Link Mesh technology, Deco X20-4G delivers hassle-free 4G internet sharing with a superior whole-home mesh WiFi experience. Designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more. Supports Cat6 with internet downlink speeds up to 300 Mbps, shared by super-fast WiFi 6 with speeds up to 1.8 Gbps, enabling lag-free online activities such as 4K streaming, cloud-gaming, and video calls. Plug in your SIM card and enjoy high-speed internet. TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless WiFi experience.

Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. With TP-Link''s years of field tests and expertise in 4G router technology, Deco X20-4G ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

Unbox Deco, install the app and then simply follow the on-screen directions. Deco will take care of the rest, getting your network up and running in minutes. Size: 105W × 105D × 167Hmm

Package Contents
1 x Deco X20-4G unit
1 x RJ45 Ethernet Cable
1 x Power Adapter
1 x Quick Installation Guide
2 x SMB to SMA Adapters

Features

  • Internet Everywhere with 4G+ Speed - Provides WiFi 6 Mesh coverage through 4G+ CAT6 access
  • Superior WiFi 6 speeds up to 1.8 Gbps - 1201 Mbps (5 GHz) and 574 Mbps (2.4 GHz) dual-band WiFi with WiFi 6 technology
  • Fully Gigabit Ethernet - 3x Gigabit WAN/LAN Ethernet ports provide flexible internet access at warp speed**
  • TP-Link HomeShield - Real-time IoT and network protection, robust Parental Controls, and comprehensive reports
  • 3G/4G Failover - Flexible access from Ethernet to 3G/4G to prevent data loss

Specifications

General

  • Dimensions: 105W × 105D × 167Hmm
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: -40°C~60°C (-40°F~140°F)
  • Operating Humidity: 10%~90%RH
  • Storage Humidity: 5%~90%RH

Wireless

  • Standards (Wi-Fi 6): IEEE 802.11ax/ac/n/a 5 GHz and IEEE 802.11ax/n/b/g 2.4 GHz
  • WiFi Speeds (AX1800): 5 GHz: 1201 Mbps (802.11ax) and 2.4 GHz: 574 Mbps (802.11ax)
  • Working Modes: 3G/4G, Router, Access Point

WiFi Range

  • 1-3 Bedroom Houses (1-pack)
  • TP-Link Mesh Technology
  • Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
  • 2 LTE antennas, 2 Wi-Fi antennas (Internal)
  • Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity

  • High: Dual-Band, Distribute devices to different bands for optimal performance
  • MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
  • OFDMA: Simultaneously communicates with multiple WiFi 6 clients
  • 4 Streams: More than enough bandwidth for connected devices

Hardware

  • Ethernet Ports: 3× Gigabit Ports (Supports WAN/LAN auto-sensing)
  • Buttons: Reset Button

Ports and Connections

  • 2 × 3G/4G External Antenna Ports
  • Compatibility
  • 4G: FDD-LTE:B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700 MHz) and TDD-LTE: B38/B40/B41(2600/2300/2500 MHz)
  • 3G: DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)
  • Carrier Aggregation:
  • B1+B3/B5/B7/B8/B20
  • B3+B1/B3/B5/B7/B8/B20/B28/B38/B40
  • B5+B1/B3/B5/B7/B40
  • B7+B1/B3/B5/B7/B8/B20/B28
  • B8+B1/B3/B7
  • B20+B1/B3/B7
  • B28+B3/B7/B40
  • B38+B38
  • B40+B40
  • B41+B41

Security

  • WiFi Encryption: WPA-Personal, WPA2-Personal, WPA3-Personal

Network Security

  • SPI Firewall: Access Control
  • HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner
  • Guest Network: 1× 5 GHz Guest Network and 1× 2.4 GHz Guest Network

Software

  • Protocols: IPv4 , IPv6
  • Service Kits: HomeShield
  • WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
  • Quality of Service: HomeShield QoS, QoS by Device
  • Cloud Service: OTA Firmware Upgrade, TP-Link ID, DDNS
  • NAT Forwarding: Port Forwarding and UPnP
  • IPTV: IGMP Proxy, IGMP Snooping, Bridge , Tag VLAN
  • DHCP: Address Reservation, DHCP Client List, Server
  • DDNS: TP-Link
  • Management: Deco App

WiFi Transmission Power

  • CE:
  • =20 dBm (2.4GHz)
  • =23 dBm (5GHz)

Warranty & Returns

5 Years

We Offer 5 Years for this product

Specifications

Products specifications
Warranty Group
Warranty 5 Years
