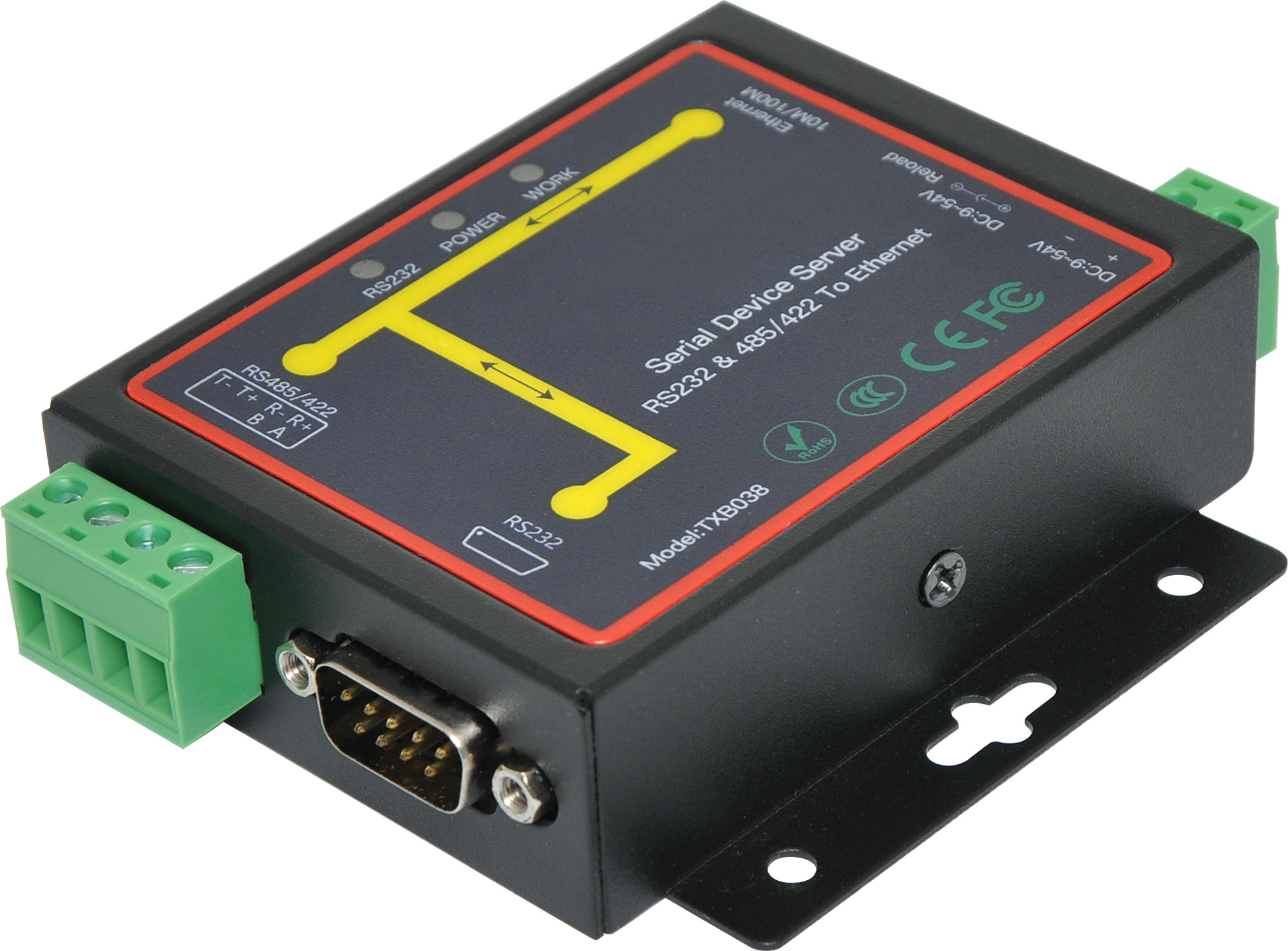

Serial To Ethernet Converter RS232/422/485/Modbus

Be the first to review this product
This serial to ethernet converter allows you to easily send serial RS232/422/485/Modbus over ethernet for controlling equipment over longer distances than traditional serial cables. This device can be controlled and set up remotely using a handy web based interface.
SKU: D4231
$81.77
Per ea
QuantityPrice
ea$81.77
2+$73.59
4+$65.41

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This serial to ethernet converter allows you to easily send serial RS232/422/485 over ethernet for controlling equipment over longer distances than traditional serial cables. This device can be controlled and set up remotely using a handy web based interface.

9-54V DC power supply required. We recommend the M9273B 12V 0.5A power adapter.

Please Note: Plug pack not included.

Features

  • Supports auto-MDI/MDIX
  • Supports TCP/IP server, TCP/IP Client & UDP
  • Baud rate 300bps-230400bps
  • Supports Modbus RTU
  • Reload function
  • RS485 support full duplex and half duplex
  • Supports VSPE software.

Specifications

Chipset: IP210

  • Ports: 1 port 10/100M Auto MDI-MDIX RJ45,1port RS232, 1port RS485/422
  • Standards: IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3az
  • Network: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5 UTP
  • Data rate: 10/100M
  • Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
  • LED Indicators: Link/Act, Power, System, TX/RX
  • Baud rate: 110bps~256000bps
  • Operation modes: TCP Server, TCP Client, UDP
  • Dimension: 86W x 84H x 25Dmm
  • Power Input: 9V-54V DC
  • Power Consumption: Max 1.8W
  • Operating Temperature: -10°C to 55°C
  • Relative Humidity: 10%-90% (non-condensing)

Device Defaults

  • ID: admin
  • Password: system
  • IP address: 192.168.2.1
  • Operation mode: TCP server
  • Transmission Mode: RS232
  • Baud rate: 57600bps
  • UART parameters: 57600, 8, N, 1
  • Local port TCP 23, UDP 21

12 Months

We Offer 12 Months for this product
