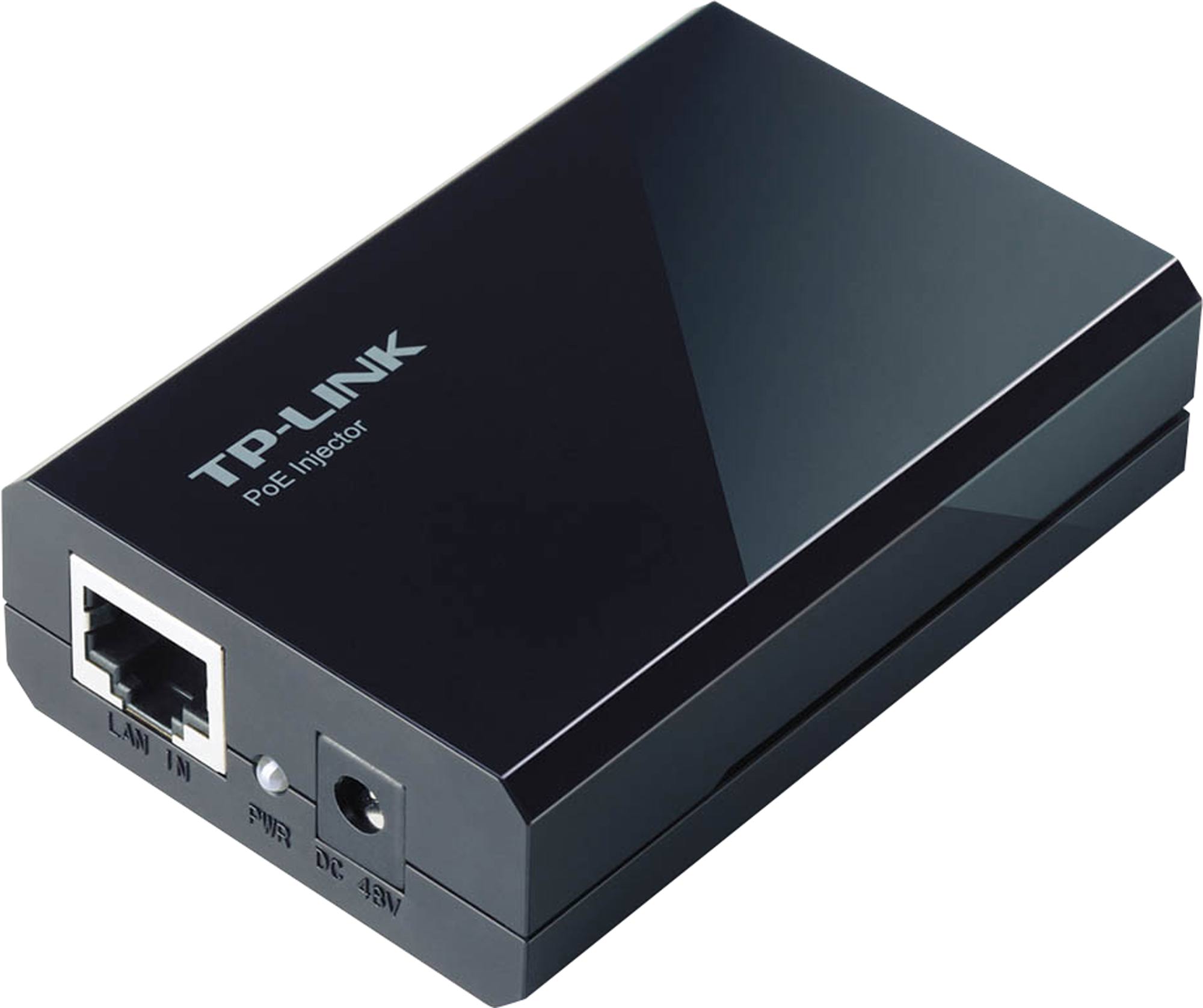

TL-POE150S Power Over Ethernet (PoE) Single Port Injector

Manufacturer: TP-Link
Be the first to review this product
The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters or other equivalent products, to extend your network to where there are no power line or
SKU: D4229
$31.77
Per ea
QuantityPrice
ea$31.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters or other equivalent products, to extend your network to where there are no power line or outlets, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

*TP-LINKs TL-POE150S uses widely adopted PoE technology in the industry and provides more cost-effective PoE solution. It is highly recommended not to pair the PoE products with other PoE adapters unless under professional guidance.

Features:

  • IEEE 802.3af compliant
  • Delivers power up to 100 meters
  • Auto-determine the necessary power requirements
  • Gigabit speed support
  • Plug-and-Play, requires no configuration
  • External power adapter supply

Specifications:

Hardware Features

  • Interface:
  • - 2 10/100/1000Mbps RJ45 Port
  • - AUTO Negotiation/AUTO MDI/MDIX
  • - 1 48VDC POWER INPUT PORT

Network Media:

  • - 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
  • - EIA/TIA-568 100Ω STP (Max 100m)
  • - 100BASE-TX: UTP category 5, 5e cable (Max 100m)
  • - EIA/TIA-568 100Ω STP (Max 100m)
  • - 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Dimensions (W X D X H): 3.2*2.1*0.9 in.(80.8*54*24 mm)

  • LED Indicator: PWR
  • Power Supply: 15.4W (Max. 48VDC)

Software Features

  • Basic Function:
  • - Compatible With IEEE 802.3af Compliant PDs
  • - Delivers Power Up To 100 Meters
  • - Auto-Determine The Necessary Power Requirements

Others

  • Certification: FCC, CE, RoHS
  • System Requirements:
  • -Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
  • - Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
  • - Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • - Operating Humidity: 10%~90% non-condensing
  • - Storage Humidity: 5%~90% non-condensing

3 Years

We Offer 3 Years for this product
