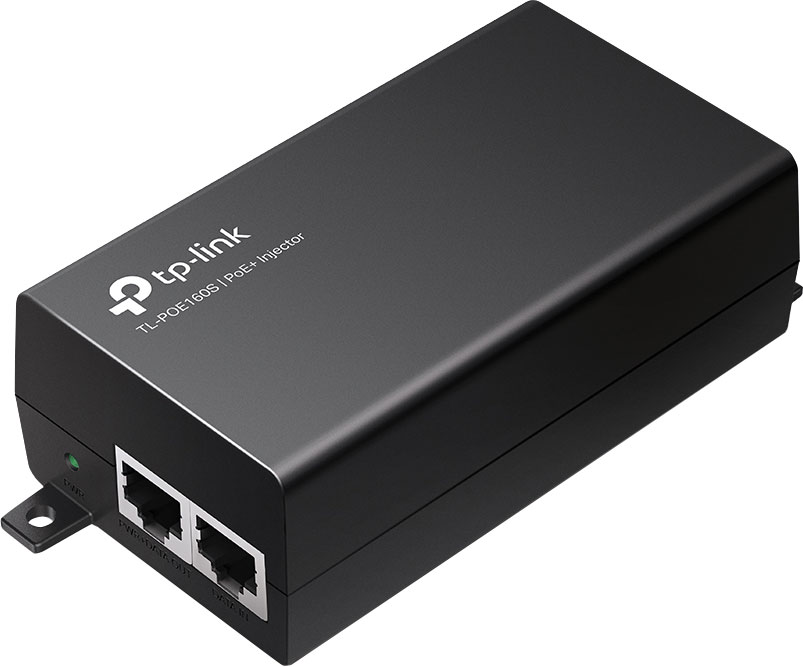

TL-POE160S PoE+ Injector

Manufacturer: TP-Link
Be the first to review this product
Expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
SKU: D4228
$39.55
Per ea
Quantity Price
ea $39.55

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This PoE+ Injector fully complies with IEEE 802.3af/at standards and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link''s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc. Dimensions: 125W x 59.4D x 36.8Hmm

Features

  • 2 Gigabit ports ensure faster transmission
  • Complies with IEEE802.3af/at standards, supplies up to 30 W
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Automatically determines and supplies the exact power to meet the device''s need
  • Wall-mounting and desktop design accommodates most installation scenarios
  • Plug & Play installation requires no configuration
  • Integrated power supply

Features:

  • Delivers power and data through a single Ethernet cable for simple network extension
  • Transmits power & data over an Ethernet cable up to 100m(328 feet) away
  • Plug and play design provides a hassle free setup
  • 12/9/5VDC triple output adapts to different Ethernet-enable devices

Specifications:

Network

  • Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

General

  • Certification: FCC, CE, RoHS
  • Environment Operating Temperature: 0°C to 40°C
  • Storage Temperature: -40°C to 70°C
  • Operating Humidity: 10% to 90%RH non-condensing
  • Storage Humidity: 5% to 90%RH non-condensing

Hardware Features

  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
  • EIA/TIA-568 100Ω STP (maximum 100 m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
  • EIA/TIA-568 100Ω STP (maximum 100 m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
  • Ports: 1 10/100/1000Mbps RJ45 data-in port, 1 10/100/1000Mbps RJ45 power+data-out port and 1 AC socket
  • Power Consumption: Input: 100-240 V, 50/60 Hz, Output: Auto-determine the necessary power requirements (max. 30 W)
  • Basic Function: Auto-Sensing Algorithm enables providing power with 802.3af/at PD, Auto-determine the necessary power requirements, Wall-mounting and desktop installation supported, Plug-and-Play
  • LED Indicator: ON: Supplying power normally, OFF: No power supply

3 Years

We Offer 3 Years for this product
