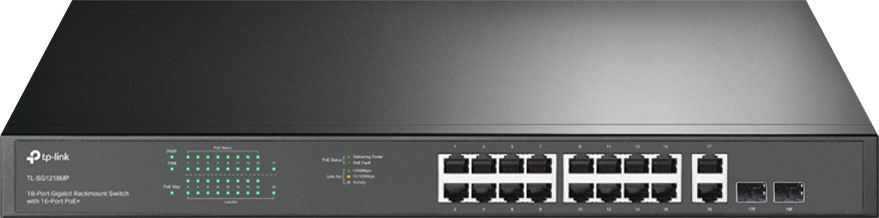

18-Port Gigabit Rackmount Switch with 16 PoE+

Manufacturer: TP-Link
Be the first to review this product
Plug and Play, Multi-Purpose PoE Switch with Powerful Performance
SKU: D4214
$368.18
Per ea
Quantity Price
ea $368.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This High Power 18-Port Gigabit Rackmount Switch is a Plug and Play, Multi-Purpose PoE Switch with Powerful Performance. Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc. It ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS). When users total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. The durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50?) with reliability. Size: 440W × 180D × 44Hmm

Package Contents
TL-SG1218MP Gigabit Rackmount Switch
Installation Guide
Power Cord
Rackmount Kit
Rubber Feet

Features

  • 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
  • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
  • Working with IEEE 802.3af/at compliant PDs
  • Plug and play, with no configuration and installation needed
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ?)

Specifications

Hardware Features

  • Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
  • Interface: 16× PoE+ gigabit RJ45 ports, 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-X MMF, SMF
  • Fan Quantity: 2
  • Physical Security Lock: Yes
  • Power Supply: 100–240 VAC, 50/60 Hz
  • PoE+ Ports(RJ45): Standard: 802.3at/802.3af compliant, PoE Ports: Ports 1–16, PoE Power Budget: 250 W
  • Dimensions: 440W × 180D × 44Hmm
  • Mounting: Rack Mountable
  • Max Power Consumption: 21.4 W (220/50 Hz. no PD connected) and 286.64 W (220/50 Hz. with 250 W PD connected)
  • Max Heat Dissipation: 72.97 BTU/h (no PD connected) and 977.44 BTU/h (with 250 W PD connected)

Performance

  • Switching Capacity: 36 Gbps
  • Packet Forwarding Rate: 26.78 Mbps
  • MAC Address Table: 8K
  • Packet Buffer Memory: 4.1 Mbit
  • Advanced Functions: Compatible With IEEE 802.3af/at Compliant PDs, 802.1p/DHCP QoS, Mac Address Auto-Learning And Auto-Aging and IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
  • Jumbo Frame: 10 KB

  • Certification: CE, FCC, RoHS
  • Operating Temperature: 0–50 °C
  • Storage Temperature: -40–70 °C
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing

5 Years

We Offer 5 Years for this product
