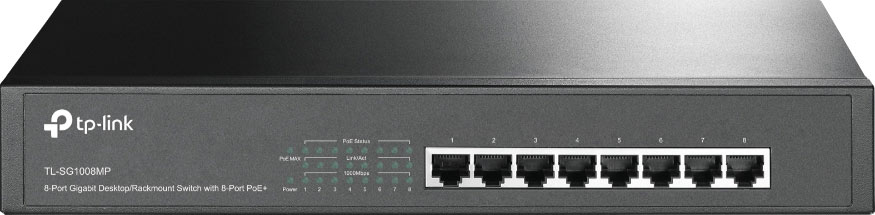

TL-SG1008MP 8-Port PoE+ Gigabit Desktop/Rackmount Switch

Manufacturer: TP-Link
Be the first to review this product
8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
SKU: D4213A
$200.00
Per ea
QuantityPrice
ea$200.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 8-Port Gigabit Desktop/Rack mountable Switch has all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port. It can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, it can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

Box Contents
TL-SG1008MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet

Features

  • 8 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
  • Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
  • Innovative energy-efficient technology reduces power consumption
  • Rack mountable with included rack mount bracket
  • Total PoE power budget up to 126W
  • Plug and play design, no configuration required

Specifications

HARDWARE FEATURES

  • Interface: 8 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity: 1
  • Power Supply: 100-240VAC, 50/60Hz
  • PoE+ Ports(RJ45): Standard: 802.3at/af (30W)
  • PoE+ Ports: 8 Ports
  • Total PoE Budget: 126W
  • Backbound Bandwidth: 16Gbps
  • Mac Address Table: 4K
  • Buffer Size: 1.5Mbits
  • Dimensions ( W x D x H ): 294 × 180 × 44 mm
  • Mounting : 13" and 19" 1U rack mountable
  • Max Power Consumption: 9.9W(no PD load)
  • 144.4W(with 124W PD load)
  • Max Heat Dissipation: 33.7BTU/h(no PD load)
  • 492.6BTU/h(with 124W PD load)

SOFTWARE FEATURES

  • Advanced Features: Compatible With IEEE 802.3af/at Compliant power devices (PD)
  • Port Priority Function
  • MAC Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control
  • Transfer Method: Store-And-Forward

OTHERS

  • Consumption: 9.5 watts (max. no PD connected)
  • 140.1 watts (max. with 126w PD connected)
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

3 Years

We Offer 3 Years for this product
