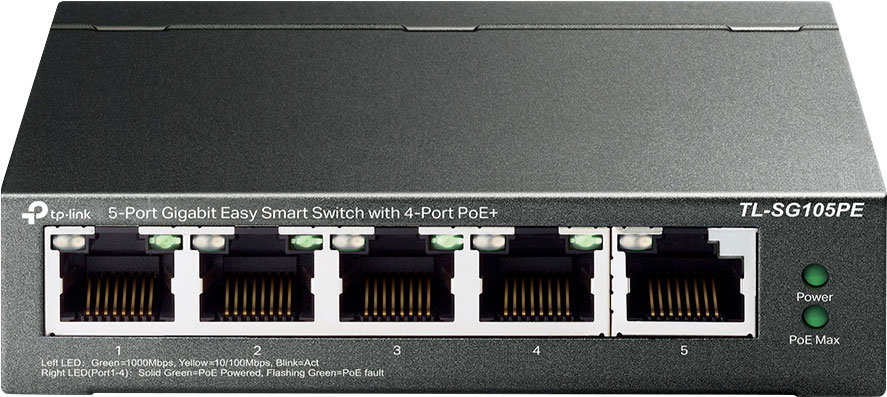

TL-SG105PE 5 Port Gigabit PoE Switch

Manufacturer: TP-Link
Be the first to review this product
Professional 5-Port Gigabit Easy Smart Switch with 4-Port PoE+ Easy to Use, Multi-Purpose PoE Switch with Powerful Performance
SKU: D4211
$86.36
Per ea
QuantityPrice
ea$86.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 5-Port Gigabit Desktop Switch with 4-Port PoE provides seamless network connection. Its fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV. Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 65W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. Not only does it ensure smooth traffic for latency-sensitive applications, such as voice and video but also ensures a better network experience, especially for applications like IPTV, by optimising multimedia traffic delivery. Helps to create network with higher security and better overall performance by dividing network into smaller groups.

The switch offers network monitoring for users to observe traffic behaviour. Through its web-based user interface and management utility, it offers a variety of useful features, including network monitoring, traffic prioritisation, and enhanced QoS. The interior components of TL-SG105PE are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG105PE delivers switching performance you can depend on. Size: 99.8W × 98D × 25Hmm

Package Contents
TL-SG105PE 5 Port Gigabit PoE Switch
Power Adapter
Installation Guide
Rubber Feet

Features

  • Five 10/100/1000Mbps RJ45 ports
  • Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
  • Supports PoE power up to 65 W for all PoE ports*
  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise

Specifications

Hardware Features

  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
  • Interface: Five 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity: Fanless
  • Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)
  • PoE Ports (RJ45): Standard: 802.3 af/at compliant, PoE Ports: Port 1- Port 4, PoE Power Budget: 65W
  • Dimensions: 99.8W × 98D × 25Hmm
  • Max Power Consumption: 4.52 W (220V/50Hz with no PD connected), 75.16 W (220V/50Hz with 65 W PD connected)
  • Max Heat Dissipation: 15.41 BTU/h (with no PD connected), 256.30 BTU/h (with 65 W PD connected)

Performance

  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • MAC Address Table: 2K
  • Packet Buffer Memory: 1.5Mb
  • Jumbo Frame: 16KB

Software Features

  • Quality of Service: Support Port-Based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control
  • L2 Features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, PoE Auto Recovery and Extend Mode
  • VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
  • Management: Web-based GUI and Easy Smart Configuration Utility
  • Transmission Method: Store-And-Forward

General

  • Certification FCC, CE, RoHS
  • System Requirements: Microsoft® Windows® for running Utility
  • Environment Operating Temperature: 0?~40?
  • Storage Temperature: -40?~70?
  • Operating Humidity: 10%~90%RH non-condensing
  • Storage Humidity: 5%~95%RH non-condensing

5 Years

We Offer 5 Years for this product
