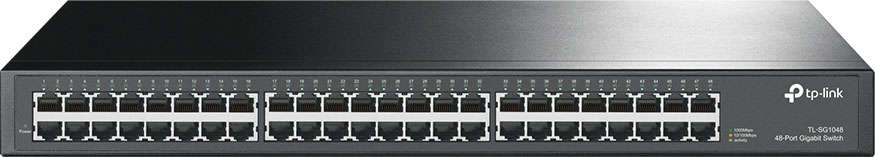

TL-SG1048 48 Port 10/100/1000M Ethernet Switch

Manufacturer: TP-Link
Be the first to review this product
This high speed TP-Link 10/100/1000Mbps ethernet switch allows multiple computers to be connected together. Further computers may be added by daisy-chaining more switches together. Plugpack included. Rack mountable.
SKU: D4197
$531.82
Per ea
QuantityPrice
ea$531.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 48-Port Gigabit Switch is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. It allows multiple computers to be connected together. Further computers may be added by daisy-chaining more switches together. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price. Features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. Size: 440W x 220D x 44Hmm

Package Contents
48-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet

Features

  • 48 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power up to 18%
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case

Specifications

Hardware Features

  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
  • Interface: 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
  • Fan Quantity: 2
  • Physical Security Lock: No
  • Power Supply: 100-240VAC, 50/60Hz
  • Dimensions: 440W x 220D x 44Hmm
  • Mounting: Rack Mountable
  • Max Power Consumption: 32.29W(220V/50Hz)
  • Max Heat Dissipation: 110.17BTU/h

Performance

  • Switching Capacity: 96Gbps
  • Packet Forwarding Rate: 71.4Mpps
  • MAC Address Table: 8K
  • Buffer Memory: 12Mb
  • Jumbo Frame: 12KB
  • Transfer Method: Store-and-Forward

General

  • Certification: FCC, CE, RoHS
  • Operating Temperature: 0?~40?
  • Storage Temperature: -40?~70?
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

5 Years

We Offer 5 Years for this product
