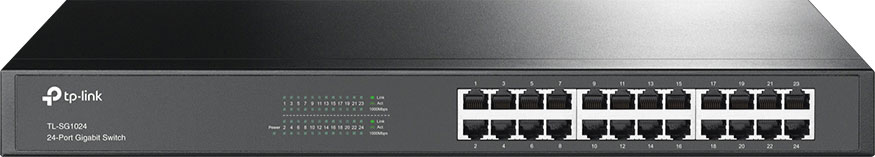

TL-SG1024 24 Port 10/100/1000M Ethernet Switch

Manufacturer: TP-Link
Be the first to review this product
This high speed TP-Link 10/100/1000Mbps ethernet switch allows multiple computers to be connected together. Further computers may be added by daisy-chaining more switches together. Plugpack included. Rack mountable.
SKU: D4196
$195.45
Per ea
QuantityPrice
ea$195.45

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This high speed TP-Link® 10/100/1000Mbps ethernet switch allows multiple computers to be connected together. Further computers may be added by daisy-chaining more switches together. Plugpack included. Rack mountable.

Features

  • All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps
  • Supports Auto-MDI/MDIX function
  • Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode
  • Store and forward Switching scheme

Specifications

Standards and Protocols:

  • - IEEE802.3, 802.3u, 802.3ab, 802.3x
  • - CSMA/CD, TCP/IP
  • Basic Function:
  • - Wire-speed Performance
  • - MAC Address Auto-Learning and Auto-aging
  • - IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
  • Backbound Bandwidth: 48Gbps
  • MAC Address Table: 8k
  • Forwarding Rate:
  • - 10BASE-T: 14880pps/port
  • - 100BASE-TX: 148800pps/port
  • - 1000BASE-T: 1488000pps/port
  • Transmission Method: Store-and-Forward
  • Ports: 24 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
  • Network Media:
  • - 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
  • - EIA/TIA-568 100Ù STP (maximum 100m)
  • - 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
  • - EIA/TIA-568 100Ù STP (maximum 100m)
  • - 1000Base-T: UTP category 5, 5e cable (maximum 100m)
  • LED Indicators: Power, Link/Act
  • Safety & Emission: FCC, CE
  • Dimensions (W x D x H): 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)
  • Environment
  • - Operating Temperature: 0℃~40℃ (32℉~104℉)
  • - Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • - Operating Humidity: 10%~90% non-condensing
  • - Storage Humidity: 5%~90% non-condensing
  • Power: 100-240VAC, 50/60Hz

5 Years

We Offer 5 Years for this product
