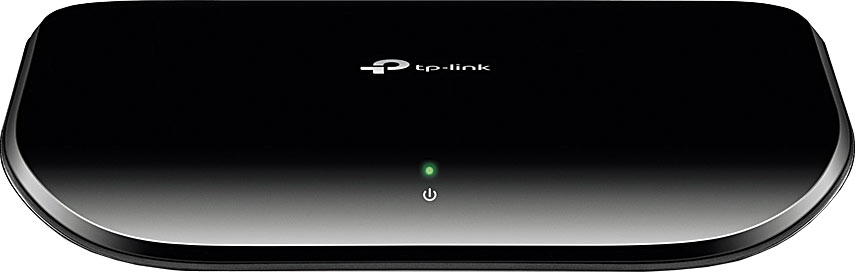

TL-SG1005D 5 Port 10/100/1000M Ethernet Switch

Specifications

Standards and Protocols:

• - IEEE802.3, 802.3u, 802.3ab, 802.3x
• - CSMA/CD, TCP/IP
• Basic Function:
• - Wire-speed Performance
• - MAC Address Auto-Learning and Auto-aging
• - IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
• Backbound Bandwidth: 10Gbps
• MAC Address Table: 1k
• Forwarding Rate:
• - 10BASE-T: 14880pps/port
• - 100BASE-TX: 148800pps/port
• - 1000BASE-T: 1488000pps/port
• Transmission Method: Store-and-Forward
• Ports: 5 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
• Network Media:
• - 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
• - EIA/TIA-568 100Ù STP (maximum 100m)
• - 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
• - EIA/TIA-568 100Ù STP (maximum 100m)
• - 1000Base-T: UTP category 5, 5e cable (maximum 100m)
• LED Indicators: Power, Link/Act (100M, 1000M)
• Safety & Emission: FCC, CE
• Dimensions (W x D x H): 6.5 x 4.3 x 1.1 in. (165 x 108 x 28 mm)
• Environment:
• - Operating Temperature: 0℃~40℃ (32℉~104℉)
• - Storage Temperature: -40℃~70℃ (-40℉~158℉)
• - Operating Humidity: 10%~90% non-condensing
• - Storage Humidity: 5%~90% non-condensing
• Power: External Power Adapter
