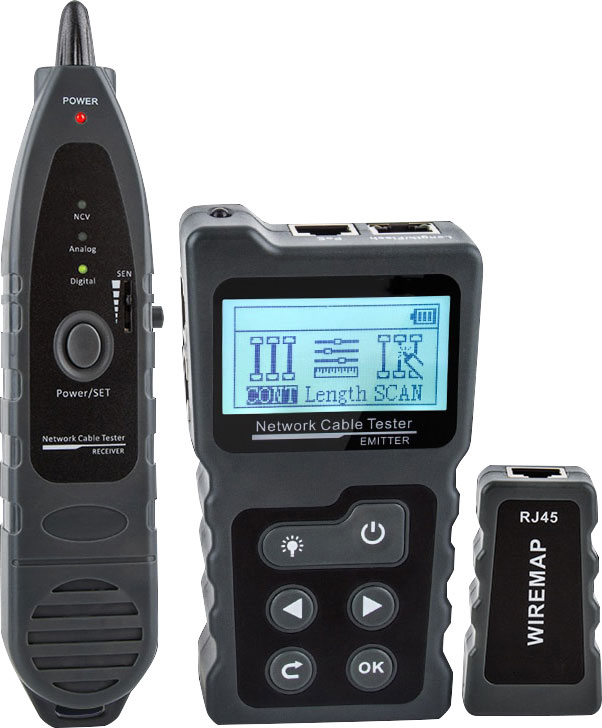

Power Over Ethernet (PoE) Tester & Cable Tracer

SKU: D3012
A complete PoE cabling tester with cable tracer receiver, cable length testing,
$171.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $171.82
2+ $153.64
4+ $135.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A complete PoE cabling tester with cable tracer receiver, cable length testing, PoE verification and fault testing.  Performs wire map testing for common wiring faults including open, short, cross, split, and reversed pairs  PoE cabling can be checked for correct pin out, voltage and current. It even includes non-contact AC voltage detection in the receiver probe. A must have for anyone installing PoE equipment. Requires 3 x AAA batteries and 1 x 9V battery.

Features

  • Continuity test for short circuit and open condition - shows pin configuration
  • Cable length measurement up to 200m (±1.6m)
  • Digital, analog and PoE testing modes
  • 802.3af/at PoE port testing with pin detection
  • Port flash and switch detail display
  • Easy to read backlit graphical screen
  • Non-contact AC voltage detection on receiver probe

Specifications

Transmitter

  • Wiremap Cable tyoe: CAT5, CAT6 (STP & UTP)
  • Wiremap test with switch directly: Yes
  • Wiremap Max range: 600m
  • Test Range length: 2-200m
  • Accuracy length: ±1.6m
  • Breakage location: Yes
  • Max signal voltage scan: 8Vp-p
  • Frequency: 130KHz
  • AC filter: Yes
  • Test Range POE: DC 5-60V standard/non-standard PoE switch
  • Voltage Display PoE: Yes
  • PSE Type: IEEE 802.3af/at
  • LCD Display: 128*64 Dot-matrix with backlight
  • Power supply: 3 x AAA Batteries (not included)
  • Low battery warning: 2.7V
  • Auto-off time: 15min, 30min, 60min, OFF
  • Voltage protection: DC 48V 5mA
  • Max working current: <150mA

Receiver

  • Sensitivity adjustable: Yes
  • AC Voltage detecting: Yes
  • Lamp: Yes
  • Battery type: 9V x 1 (not included)
  • Low battary warning: 6± 0.5V
  • Max working current: <100mA

Remote

  • Wiremap Port: RJ45
  • Voltage protection: DC48V 5mA



pic

pic


pic

pic
