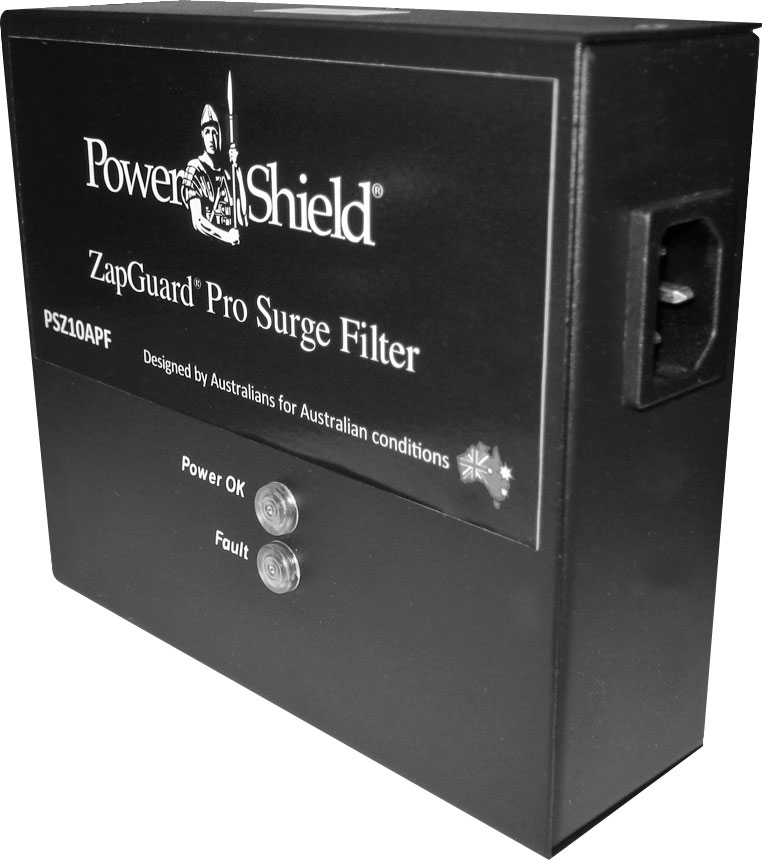

10A IEC C13 / C14 In Line Power Filter

Manufacturer: PowerShield
Be the first to review this product
Provides secondary protection for critical equipment in locations prone to unreliable electrical supply, such as lightning prone regions. Ideally suited for use in conjunction with UPS systems or as secondary surge protection connected in line at the equipment location. Excess voltage transients are diverted to neutral and earth, limiting the damag
SKU: D0942
$386.36
Per ea
Quantity Price
ea $386.36
2+ $356.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Provides secondary protection for critical equipment in locations prone to unreliable electrical supply, such as lightning prone regions. Ideally suited for use in conjunction with UPS systems or as secondary surge protection connected in line at the equipment location. Excess voltage transients are diverted to neutral and earth, limiting the damage to the connected appliance. Once the spike condition is alleviated, the unit returns to normal operation. Designed for commercial installations with mission critical equipment such as servers, medical appliances etc.

Features:

  • Surge and EMI/RFI filter protection
  • 40kA Imax in L-N mode
  • 60kA all modes
  • 3 stage, 3 mode protection
  • LC filter network
  • Rugged IP24 enclosure
  • 10A IEC C13/14 or 16A IEC C19/20

Specifications

Nominal Voltage: 200-250VAC, Single phase, 48-62Hz

  • Ports: 2 Ports
  • MCOV Uc: 320Vac L-N, 255VAC N-E
  • TOV: 350Vac L-N
  • Protection modes: L-N, N-PE, L-PE
  • Imax 8/20us: 40kA L-N, 10kA L-E, 10kA N-E
  • Inom 8/20us: 20kA L-N, 5kA, L-E, N-E
  • Response time: <25ns
  • Topology: Stage 1. L1, L2, L3-N MOV, N-E GA, Stage 2. Low pass LC network, Stage 3. L-N MOV.
  • Location category: Indoor
  • Degree of protection: IP24
  • Mounting: Portable
  • Operating temperature: –10°C to 50°C
  • Dimensions: 152D x 133W x 55H (mm)
  • Weight: 0.8kg
  • Indicators: Indicators

12 Months

We Offer 12 Months for this product
