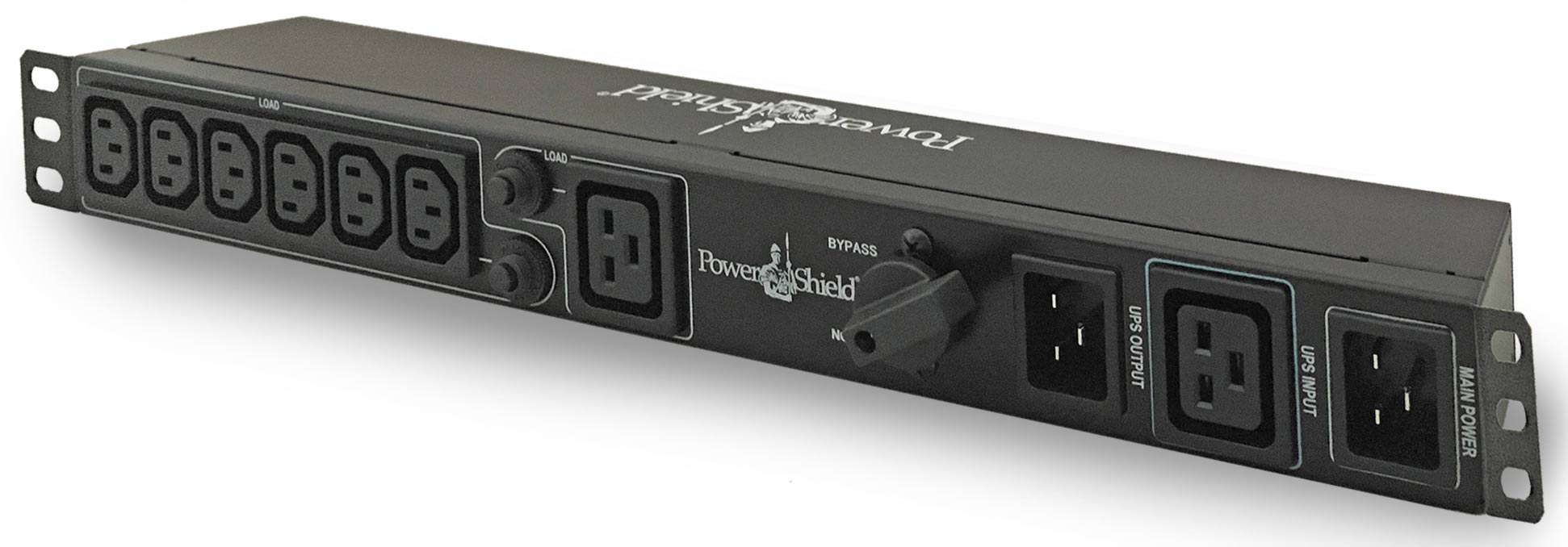

PSMBS3K UPS Maintenance Bypass Switch 3kVA

Manufacturer: PowerShield
SKU: D0920
Power Shield are pleased to be able to offer a comprehensive range of MBS (Maintenance Bypass Switches) suitable for all UPS applications. An inclusion of a MBS is recommended for all critical power applications.
$460.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $460.91
2+ $422.73
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Power Shield are pleased to be able to offer a comprehensive range of MBS (Maintenance Bypass Switches) suitable for all UPS applications. An inclusion of a MBS is recommended for all critical power applications. This model suits D 0910 and D 0911.

A correctly designed MBS enables a technician to perform maintenance on a UPS during normal office hours and without having to shut down your critical electrical load while doing so. While in the "Bypass" position the UPS will still receive power from the mains so that the technician can perform maintenance procedures while the load continues to be supplied by raw mains.

Visit the PowerShield UPS Sizing Guide. which will help you select the correct UPS for your power protection needs.

Features

  • No downtime. Routine maintenance can be performed during normal hours by simply switching the MBS to the “Bypass” position. The load is then fed directly from mains power while maintenance is performed or the UPS is replaced all without interruption.
  • PDU(power distribution unit).The MBS has six outlets for distribution to your load.
  • Rackmount. It can be mounted both horizontally or vertically (0RU) into a rack.
  • Wallmount as an option either vertically or horizontally to a wall.
  • Suitable for both line interactive and true online double conversion topologies.

Specifications:

UPS Rating: 3KVA

  • Input connector - plug: 16A IEC 320 C20
  • Input lead (x1): 15Amp Australian Plug to IEC 320 C19
  • Output - sockets (Load): 10A IEC 320 C13 (x6) 16A IEC 320 C19 (x1)
  • UPS Input/Output leads: IEC 16A cable (x2)
  • Dimensions D x W x H (mm): 80 x 440 x 50

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
