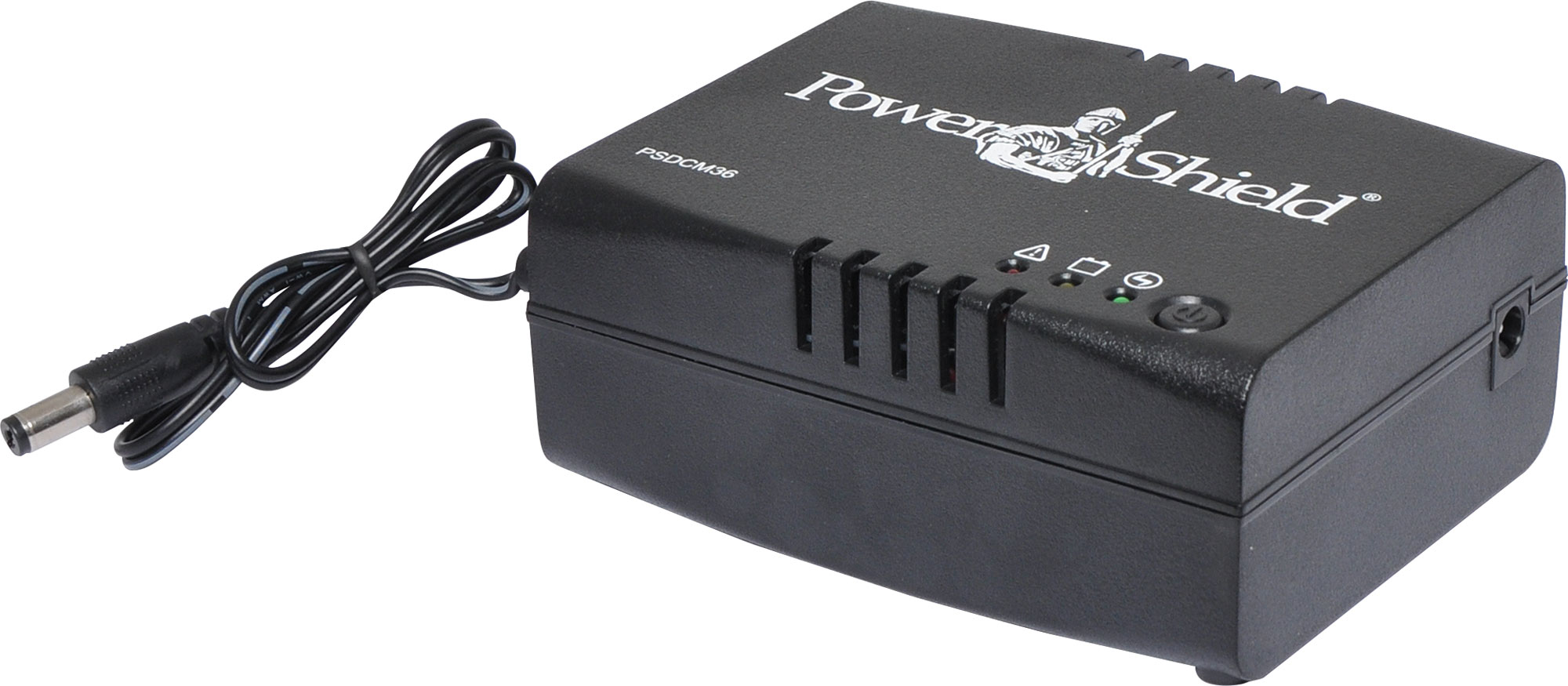

DC-Mini36 12-24V DC 36W NBN Uninterruptible Power Supply

Manufacturer: PowerShield
Be the first to review this product
The Powershield DC - Mini 36 UPS is an ideal back up solution for routers, modems, security cameras, wifi extenders and VOIP phones.
SKU: D0876
$172.73
Per ea
QuantityPrice
ea$172.73
2+$159.09

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Powershield DC - Mini 36 UPS is an ideal back up solution for routers, modems, security cameras, wifi extenders and VOIP phones. Its the perfect emergency backup power to DC powered equipment. It comes with 6 DC adaptors to suit your connection requirements. The DC Mini can economically provide hours of operation during power failure.

Features

  • Includes 4 x Li-Ion batteries
  • Auto-start when plugged in
  • Microprocessor control
  • Multicolour LED indicator and manual Power Off Switch
  • Overload, short circuit, over charge and over discharge protection
  • Long backup time
  • Additional terminal output for hardwired DC connection
  • 2.1mm DC input jack

Specifications

Input Voltage: 12V~24V DC

  • Input Jack: 2.1mm coaxial DC jack socket.
  • Input Frequency: 50/60Hz
  • Output Voltage: 12V/15V/19V/24V Auto-Detection
  • Output Current: 36W = 3A / 2.4A / 1.89A / 1.5A
  • Protection: Short Circuit Protection l Over Load Protection l Over Current Protection l Over Voltage Protection I Over Charging I Over Discharging

Battery

  • Type: Lithium-ion 18650 type battery (4 x 2600mAh)
  • Voltage: 7.4V
  • Capacity: 5200mAh
  • Protection: Over Charge Protection l Over Discharge Protection I Over Current I Over Voltage
  • Backup Time: 36W = Full 20 minutes / 18W Half 60 minutes

Indicators

  • LED: ON Green, Battery Yellow, Fault Red

Output Connectors

  • Output Cord: DC Power Cord + Terminal
  • Included Connector (Total: 6 pieces): F5.5mm x 2.5mm / M5.5mm x 2.1mm & F5.5mm x 2.1mm / M5.5mm x 2.5mm F4.8mm x 1.7mm / M5.5mm x 2.1mm & F5.5 x 2.1mm / M4.8mm x 1.7mm F3.5mm x 1.35mm / M5.5mm x 2.1mm & F5.5 x 2.1mm / M3.5mm x 1.35mm

Dimensions

  • Dimension: 105D x 80W x 43Hmm
  • Weight: 320g

Environment

  • Humidity: 0% to 95% Non-condensing
  • Operating Temperature: 0°C to 40°C

Typical device back up times

  • Small Router (6 Watts): 24 hours
  • Medium Router (12 Watts): 12 hours


12 Months

We Offer 12 Months for this product
