PCMin 12V DC 18W NBN Uninterruptible Power Supply

Manufacturer: PowerShield
Be the first to review this product
This compact plugpack style NBN UPS is fitted with an internal lithium-ion battery pack for keeping devices powered up during a power outage. Appliances may then be shutdown safely, protecting from data loss, corruption or damage. 12V DC output with 8 DC jack tips to suit a wide range of appliances. Ideal size for small phone systems, POS, tills, r
SKU: D0875
$125.45
Per ea
QuantityPrice
ea$125.45

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

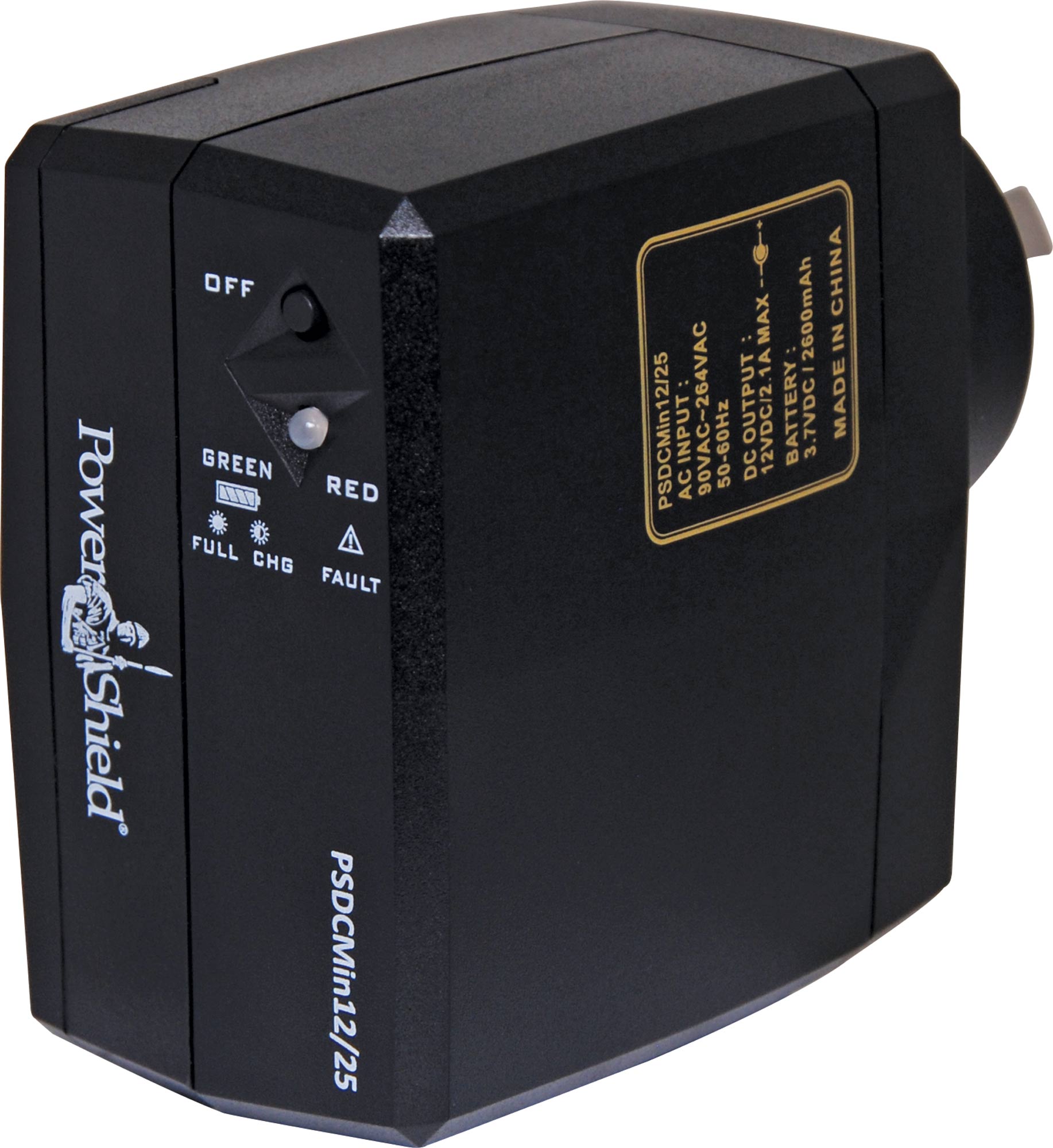

This compact plugpack style 12V DC NBN UPS (uninterruptible power supply) is fitted with an internal lithium-ion battery pack for keeping devices powered up during a power outage. Appliances may then be shutdown safely, protecting from data loss, corruption or damage. 12V DC output with 8 DC jack tips to suit a wide range of appliances. Ideal size for small phone systems, POS, tills, routers, NAS devices etc. Size: 68Dx42Wx74Hmm.

Visit the PowerShield UPS Sizing Guide. which will help you select the correct UPS for your power protection needs.

Features

  • Built in replaceable Li-ion battery
  • Auto start when plugged in
  • Embedded Micro-controller
  • Manual power off switch port
  • Overload, short-circuit, over-charge & over-discharge protection
  • NBN molex connector

Specifications

AC Input

  • Voltage Range: 90 VAC ~ 265 VAC
  • Frequency: 50Hz or 60Hz
  • Surge Protection: 125 J @ 4500 A

DC Input

  • Voltage: 12V DC ± 5%
  • Maximum Power: 18W (1.5 A)

Battery

  • Battery Type: Lithium-ion Battery / 3.7V DC / 2600 mAh
  • Typical Charging Time: 3 hours recover to 90% capacity

Protection

  • Battery: Deep discharge, over-charge and short circuit protection
  • Input/Output: Fuse for short circuit and overload protection

Indicators

  • Multi-colour LED Display
  • Full Battery: Green - Solid
  • Battery Charging: Green - Slow Flashing
  • Battery Discharging: Green - Quick Flashing
  • Fault: Red - Solid

Physical

  • Dimensions: 78D x 42W x 74H mm
  • Weight: 280g
