PSG1000 UPS 1000VA Safeguard

Manufacturer: PowerShield
Be the first to review this product
The Powershield SafeGuard 1000VA Uninterruptible Power Supply (UPS) is designed for a home/office solution.
SKU: D0874
$271.82
Per ea
Quantity Price
ea $271.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

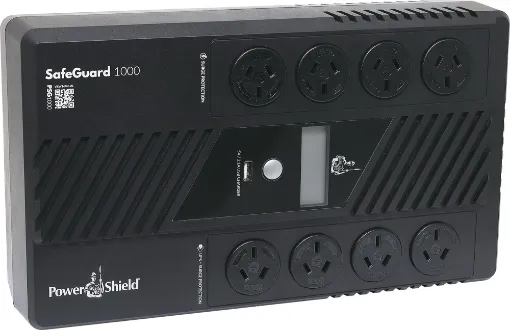

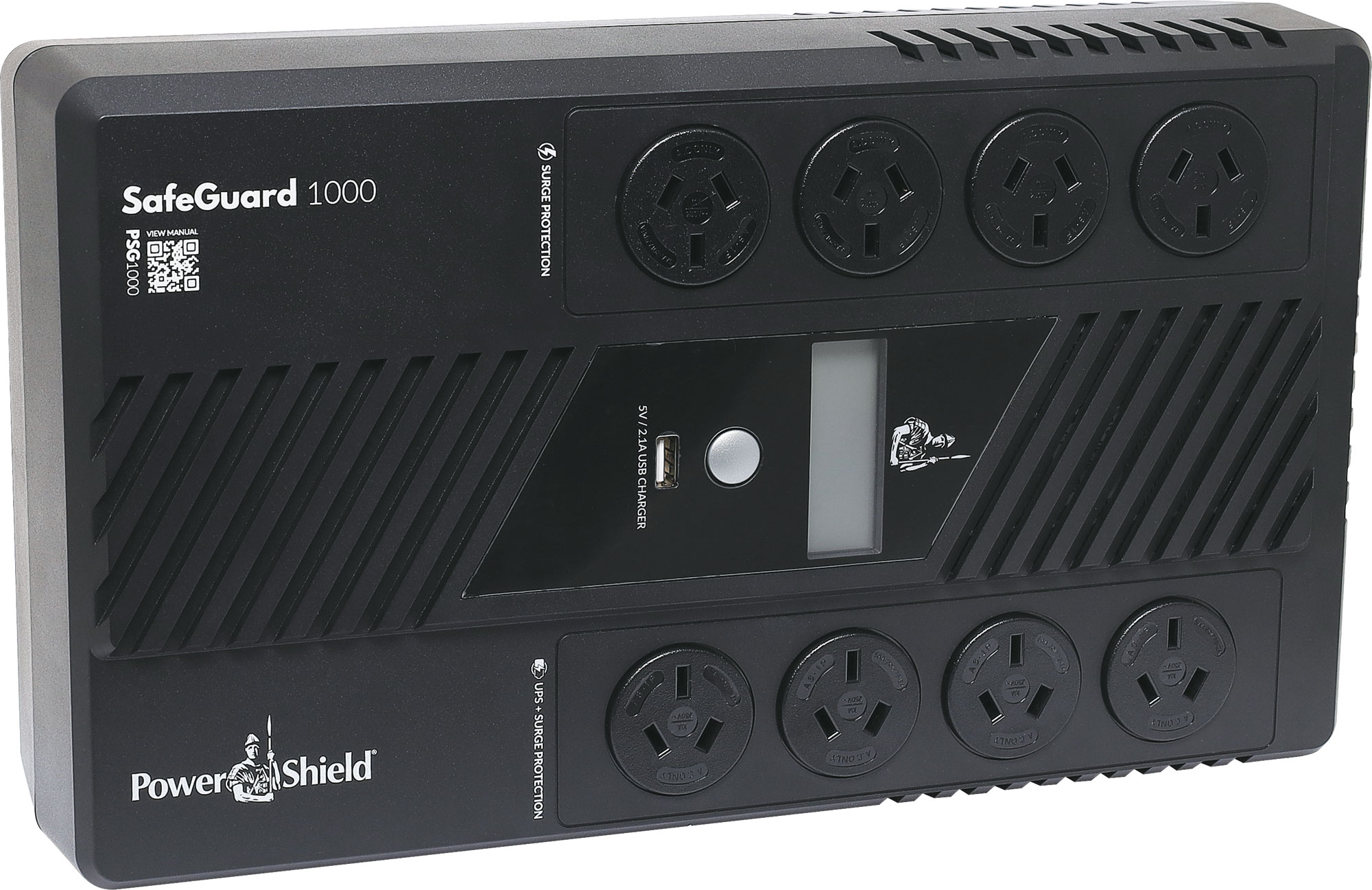

The Powershield PSG1000 SafeGuard 1000VA Uninterruptible Power Supply (UPS) is designed for a home/office solution. Similar to but larger than the D 0873 model, this new model includes four battery backup and surge protected Australian sockets, another four dedicated surge-only protection outlets, USB charging and communications parts, plus an interactive LCD screen displaying relevant battery data. The unit provides simulated sinewave output and has an audible alarm when activated. It includes management software to suit most PC operating systems and can be wall mounted if required.

Visit the PowerShield UPS Sizing Guide. which will help you select the correct UPS for your power protection needs.

Features

  • Automatic Voltage Regulation (Buck and Boost)
  • Informative Screen Display
  • USB Charging Port
  • Light-weight compact and elegantly designed
  • Intelligent microprocessor control
  • Monitoring and shutdown software included
  • Overload protection and alarm
  • Output short circuit protection
  • Start on battery function (cold start)
  • USB communication
  • Easy user-replaceable battery
  • Australian/New Zealand approved sockets
  • Wall mountable

Specifications

Capacity: 1000VA/600W Line interactive

  • Model: Powershield UPS PSG1000
  •
  • Input:
  • Voltage: 240V a.c. (Nominal)
  • Voltage range: 177V a.c to 290V a.c.
  • Frequency: 50Hz or 60Hz (Auto Sensing)
  •
  • Output:
  • Output voltage: 240V a.c. ±10%
  • Frequency Range (Batt. Mode): 50Hz or 60Hz ±-1Hz
  • Battery transfer time: 6 msec (typical)
  • Wave Form (Batt. Mode): Simulated Sine Wave
  • Australian Outlets: 4 (UPS and Surge Protection)
  • Australian Outlets: 4 (Full Time Surge Protection)
  •
  • Battery:
  • Capacity: 12V/9Ah
  • Backup time: 25 min (1 PC load at 100W)
  • Typical Recharge Time: 6-8 hours recover to 90% capacity

Protection

  • Full Protection: Overcharge, discharge, short circuit and thermal protection
  • Surge Protection: 475Joules/13000Amps - Best in its class
  • Data Protection: NA

Communications and Management

  • Interface: USB interface
  • Software: PowerShield® NetGuard® supports Windows, Linux, Unix & Mac
  • LED Alarm: AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault
  • Audible Alarm: Battery Mode, Low Battery (Batt. Mode), Fault

Physical

  • Dimensions: 345L x 200W x 100Hmm
  • Weight: 6.1kg

Operating Environment

  • Temperature: 0-40°C
  • Humidity: 0-90% (RH Non-condensing)
  • Noise Level: <40dB (No Fan)





2 Years

We Offer 2 Years for this product
