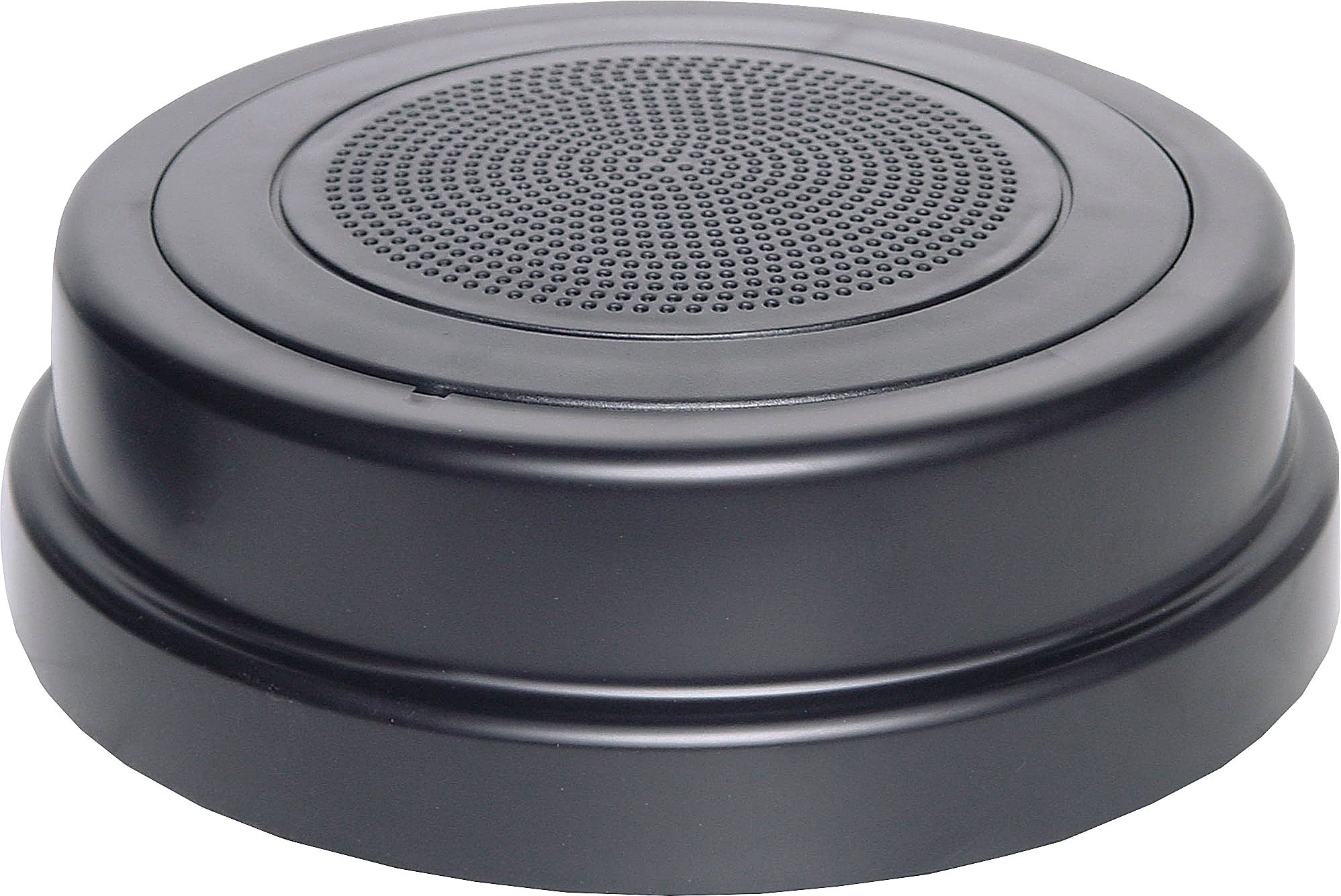

5W 100V 100mm (4”) Fire Speaker Black AS ISO7240.24

Manufacturer: One-Shot
Be the first to review this product
Designed to meet AS ISO7240.24:2018*. Fire version of our popular One-Shot C 0703 speaker. It features flame retardent housing material and a tuned PA driver to suit the new approval requirements. One-Shot design simply snap-fits in seconds to the surface mounting ring, reducing installation time considerably.
SKU: CF0704
$80.68
Per ea
Quantity Price
ea $80.68
4+ $74.77
10+ $67.50

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Designed to meet AS ISO7240.24:2018*. Fire version of our popular One-Shot C 0703 speaker. It features flame retardant housing material and a tuned PA driver to suit the new approval requirements. One-Shot design simply snap-fits in seconds to the surface mounting ring, reducing installation time considerably.

Please Note: An optional accessory for the speaker is the C 0699A adaptor plate which enables the surface mounting ring to be fixed to a standard conduit junction box without the need for drilling into the concrete slab.

*Active equalisation required to meet AS ISO7240.24 standard.


The Labour Saving One-Shot® Mounting System
Redback® “One-Shot®” speaker units install in seconds providing substantial labour cost savings for the professional installer compared to traditional mounting methods. They simply snap fit to the outer mounting ring by means of the integral pressure clips. The snap clip material is formulated to retain long service life strength and spring action, ensuring a firm vibration free fit. Speaker cable entry can be either from the rear, or via surface mounted conduit (four 19mm conduit knockouts are provided). The neutral white RAL colour provides an architecturally unobtrusive finish to virtually any installation. The transformer is fitted with a 4 way wire protect screw terminal block. This is suitable for loop in, loop out cabling.

Specifications:

Electrical

  • Rated Noise Power: 5 Watts (100V line)
  • Power Taps & Impedance (100V line): 0.33W (30kΩ), 0.66W (15kΩ), 1.25W (8kΩ), 2.5W (4kΩ), 5W (2kΩ)
  • Sensitivity: 88dB (1W @ 1m), 76dB (1W @ 4m)
  • Maximum Sound Pressure Level: 95dB (5W @ 1m), 83dB (5W @ 4m)
  • Frequency Response: 100Hz – 15kHz
  • Coverage Angle (-6dB): 1000Hz: 140°, 2000Hz: 105°, 4000Hz 80°
  • Environmental Type: A (for indoor applications as per standard)
  • Line Monitoring: Yes, 22µF bipolar capacitor
  • Applicable Cable: 2.5mm2 (14AWG) max conductor area
  • Connection: 4 way screw terminal

Mechanical

  • Speaker Component: 100mm (4”) paper cone speaker
  • Material:
  • Black flame retardant ABS grille and housing (Taitalac 8540T)
  • Clear Flame retardant ABS spring clips (Makrolon 6557)
  • Mounting Method: Surface Attachment
  • IP Rating: IP 21C
  • Dimensions: 210Ø x 67mm
  • Weight: 0.81kg

Environmental

  • Operating temperature: -25°C to +55°C
  • Relative humidity: < 95%

Additional Installation Accessories

  • C 0699 Conduit mounting plate

Features:

  • Designed to meet AS ISO7240.24 standard for fire & evacuation warning systems*
  • Excellent speech intelligibility
  • High quality speaker driver developed for BGM, paging and emergency warning applications
  • Patented 2 way latching system reduces installation time.
  • Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
  • Fitted with supervisory capacitor for line monitoring.
  • High impact enclosure & grille.
  • Australian designed & assembled.
  • 5 year warranty.





5 Years

We Offer 5 Years for this product
