Wireless UHF Beltpack Mic 700 Channel

Manufacturer: Redback
Be the first to review this product

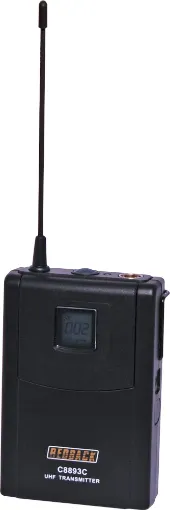

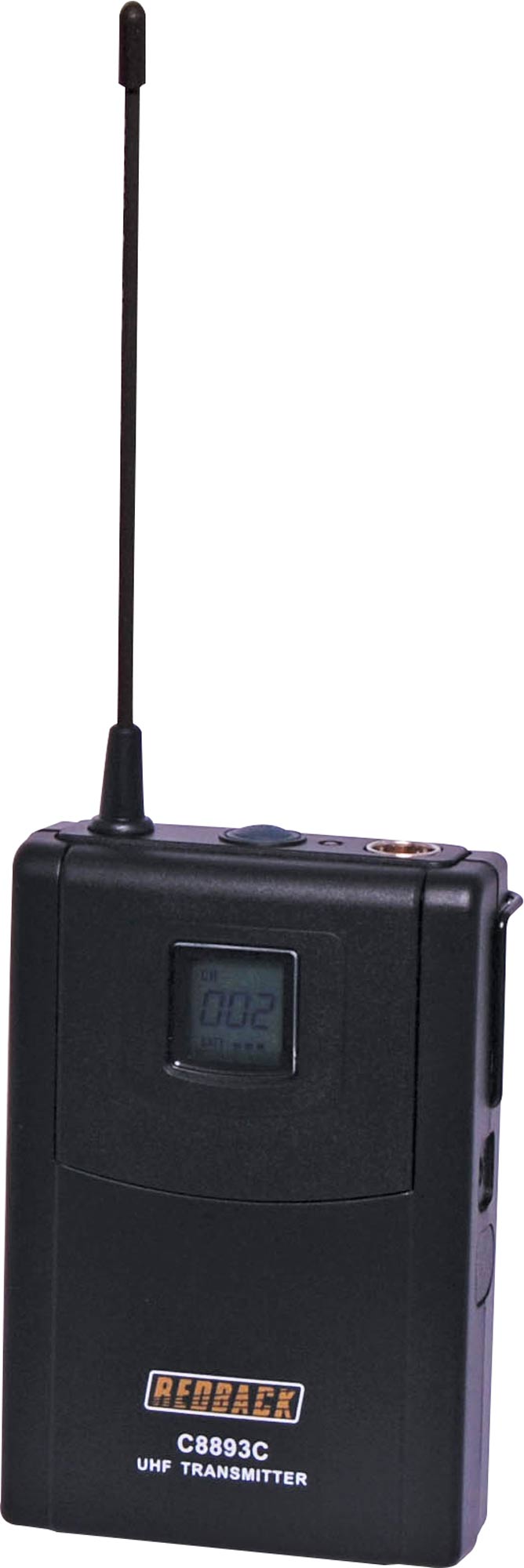

Beltpack transmitter ideal for use with the Redback 700 channel receiver unit (C 8890C).
SKU: C8893C
$140.91
Per ea
QuantityPrice
ea$140.91

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Belt pack transmitter ideal for use with the Redback® 700 channel receiver unit (C8890C).

Note: Belt packs are not supplied with a mic. Lapel mic to suit is C8907.

Note: Requires 2 x AA batteries (sold separately)

Features

  • Compact & lightweight
  • Fitted with 3 pin mini XLR socket
  • On / Off / Mute switch
  • Gain control
  • Switchable impedance between mic & instrument pickup
  • Requires 2 x AA batteries (either alkaline or rechargeable).

Specifications

Carrier Frequency Range: UHF band 520-550MHz

  • RF Power Output: 10mW (max.)
  • Spurious Emission: More than 60dB below carrier frequency
  • Frequency Stability: Within ±0.005% with PLL synthesised controlled
  • Maximum Deviation: ±48kHz within limiting compressor
  • Microphone Capsule: Uni-directional condenser microphone
  • Operating Voltage: DC1.5Vx2 AA (UM-3) or rechargeable
  • Current Consumption: Approx 120mA ± 10mA(max.)

12 Months

We Offer 12 Months for this product
