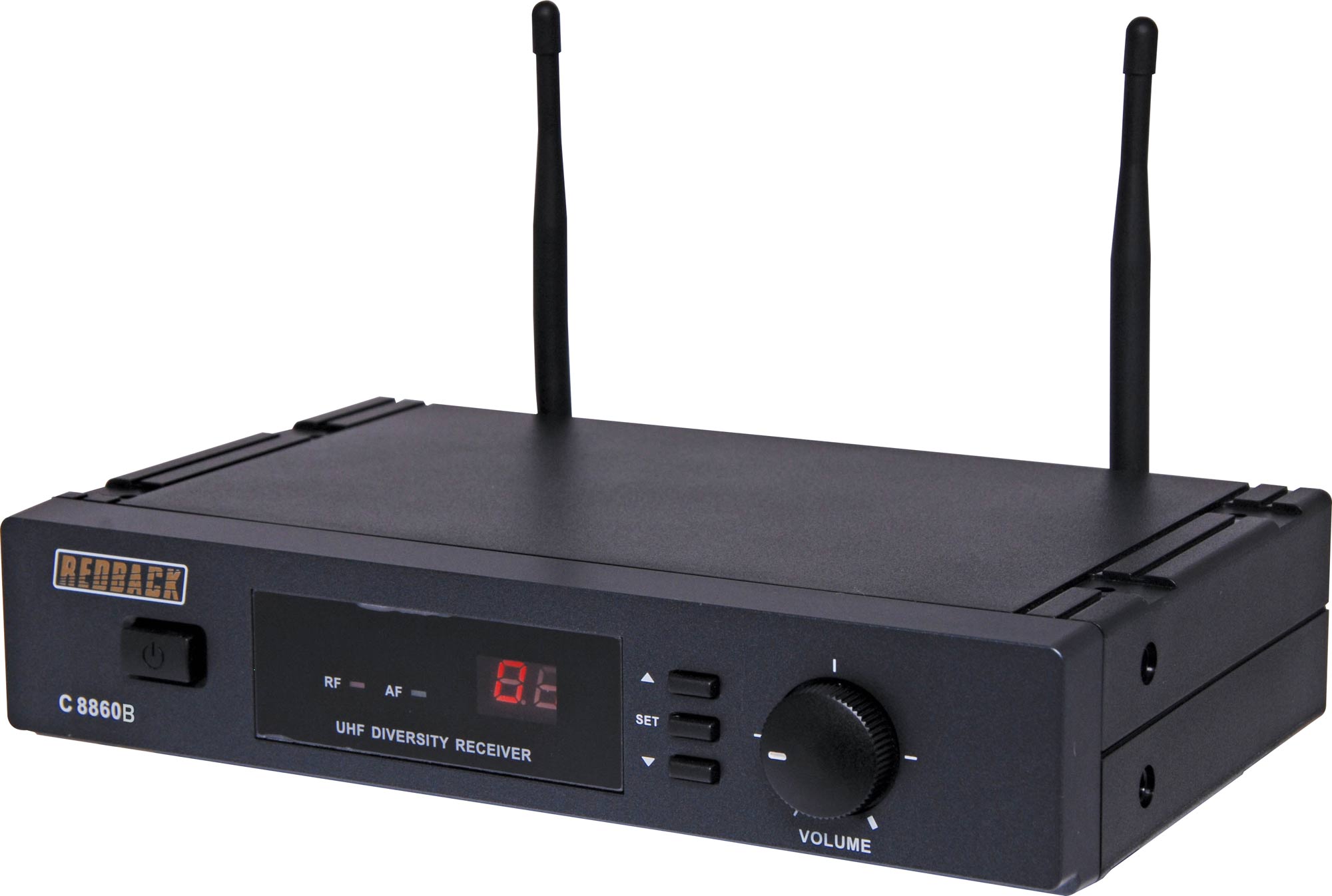

Auto-Scan UHF Wireless Mic Receiver 16 Ch 520-550MHz

Manufacturer: Redback
SKU: C8860B
Featuring Auto-Scan system allowing quick and easy selection of an interference free operating frequency. This is particularly useful when there are many existing systems in use nearby. Incorporates diversity reception ensuring a consistent and clear micr
$308.18

All Prices Shown are (ex GST)

Bulk Pricing
ea $308.18
2+ $280.91
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A 16 channel auto scanning UHF wireless microphone system receiver. The Auto-Scan option allows quick and easy selection of an interference free operating frequency. This is particularly useful when there are many existing systems in use nearby. Incorporates diversity reception ensuring a consistent and clear microphone signal with minimal dropout and noise interference. 16 channels allow interference free operation with multiple systems in the one location. Noise reduction system automatically compensates for high level sound inputs thus avoiding distortion. Channel and volume settings are adjusted via front panel. The LCD screen displays selected group, channel & frequency. A range in excess of 100m is possible in ideal conditions. Output is via 3 pin XLR balanced or 6.35mm unbalanced. LEDs are provided for displaying system status. The system operates from 12-18VDC (power supply included).

Rack mounting options: A single unit can be mounted into 1RU rack space using a pair of C 8889 rack mounting ears. Two units can be mounted side by side into 1RU rack space using the included hardware.

Features:

  • 16 Channels in 520-550MHz UHF Band
  • LCD shows selected channel
  • Half rack 1RU desk mount case
  • Tone squelch circuit
  • Range over 100m in ideal conditions
  • 6.35mm line output
  • 3 pin balanced XLR mic output

Specifications:

Frequency Channel List
  • CH 1: 520.125MHz
  • CH 2: 520.825MHz
  • CH 3: 521.925MHz
  • CH 4: 525.025MHz
  • CH 5: 525.925MHz
  • CH 6: 528.525MHz
  • CH 7: 529.425MHz
  • CH 8: 532.325MHz
  • CH 9: 534.225MHz
  • CH 10: 535.625MHz
  • CH 11: 541.125MHz
  • CH 12: 543.225MHz
  • CH 13: 544.125MHz
  • CH 14: 544.825MHz
  • CH 15: 545.725MHz
  • CH 16: 549.525MHz

Suggested Channel Groupings
  • Use these channel selections when using multiple transmitters in the same area.
  • Group A: Channels 1, 2, 3, 6, 7, 9, 10, 16.
  • Group B: Channels 2, 5, 7, 8, 9, 10, 11, 14.
  • Group C: Channels 1, 3, 5, 7, 9, 10, 11, 13.
  • Group D: Channels 2, 4, 8, 10, 12, 14, 15, 16.

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
