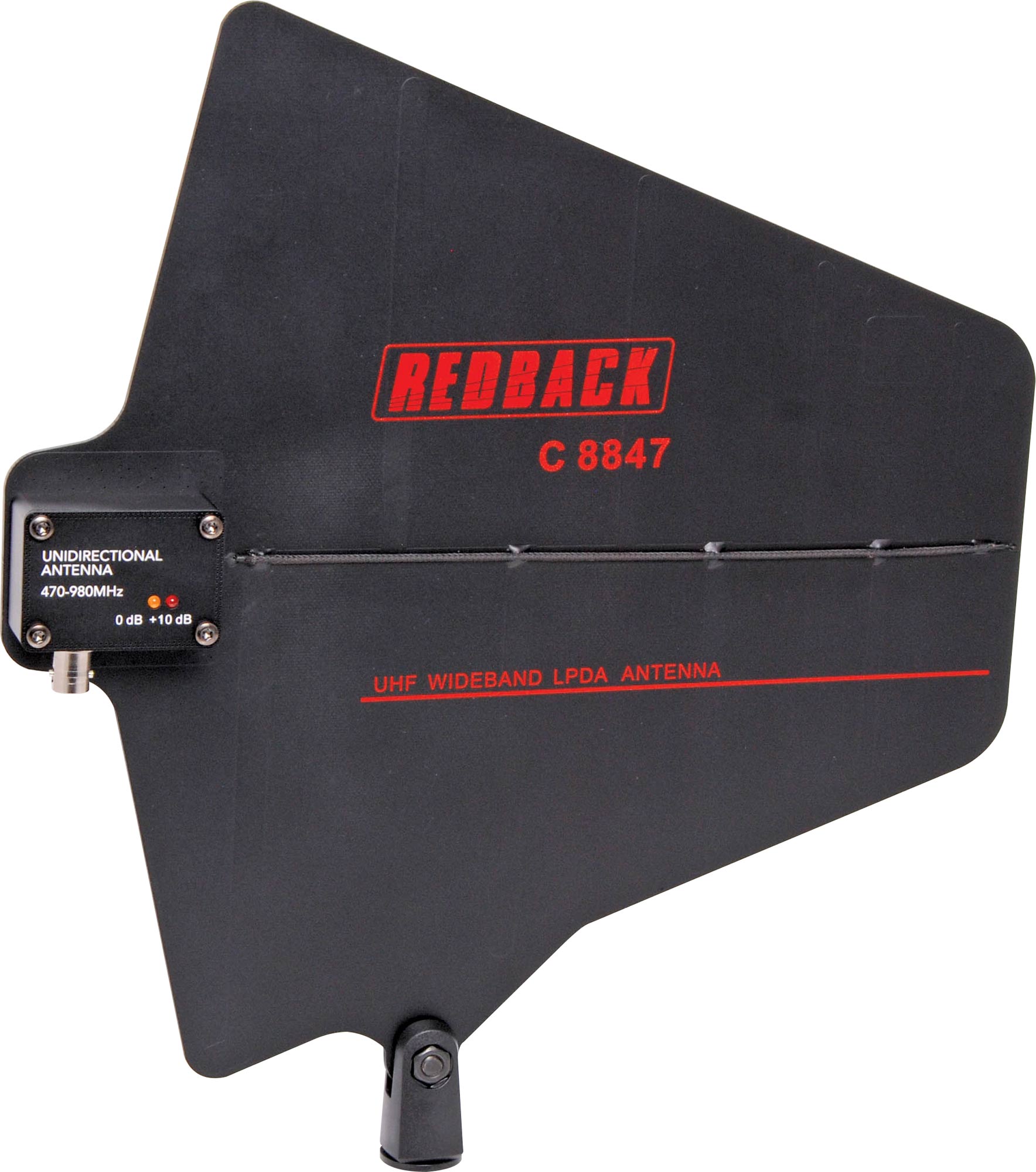

Log Periodic Dipole UHF Array Paddle Antenna Pair

Manufacturer: Redback
SKU: C8847
A wideband 500 to 950MHz frequency antenna for improving transmission quality and range. It is ideal for installations using wireless mics, tour guide systems or in ear monitoring over long distances. Suitable for stand mounting, the antenna may also be suspended from the ceiling or wall mounted using the optional C 8848 bracket. C 8847 includes
Save $109.09 $344.55 $453.64

All Prices Shown are (ex GST)
Bulk Pricing
ea
$344.55 $453.64
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A wideband 470 to 980MHz frequency antenna pair for improving reception quality and range. It is ideal for installations using wireless mics, tour guide systems or in ear monitoring over long distances. Suitable for stand mounting, the antenna may also be suspended from the ceiling or wall mounted. C 8847 includes booster. 10dBi gain with uni-directional design. Powered by 10-15V injection from the receiver unit. BNC connection. Size: 273 x 273 x 26mm.Suitable for both 3/8" and 5/8" threads.

Specifications

Connector types: BNC, jack

  • impedance: 50 Ω
  • Power requirements: 10 to 15 volts DC offset from the coaxial connection, 50 mA
  • Receiving mode (3 dB beamwidth) : 70 Angle
  • Third-order overload pay cut point (OIP3) : > 30 dBm
  • Antenna gain (axis) : 5.8 class: : dBi
  • The signal gain + 10 dB (plus or minus 2 dB) :
  • Size: 283 mm x 270 mm x 25 mm (height x width x depth)
  • Mounting: 5/8" mini microphone type thread

Warranty & Returns

2 Years

We Offer 2 Years for this product

Specifications

Products specifications
Warranty Group
Warranty 2 Years
