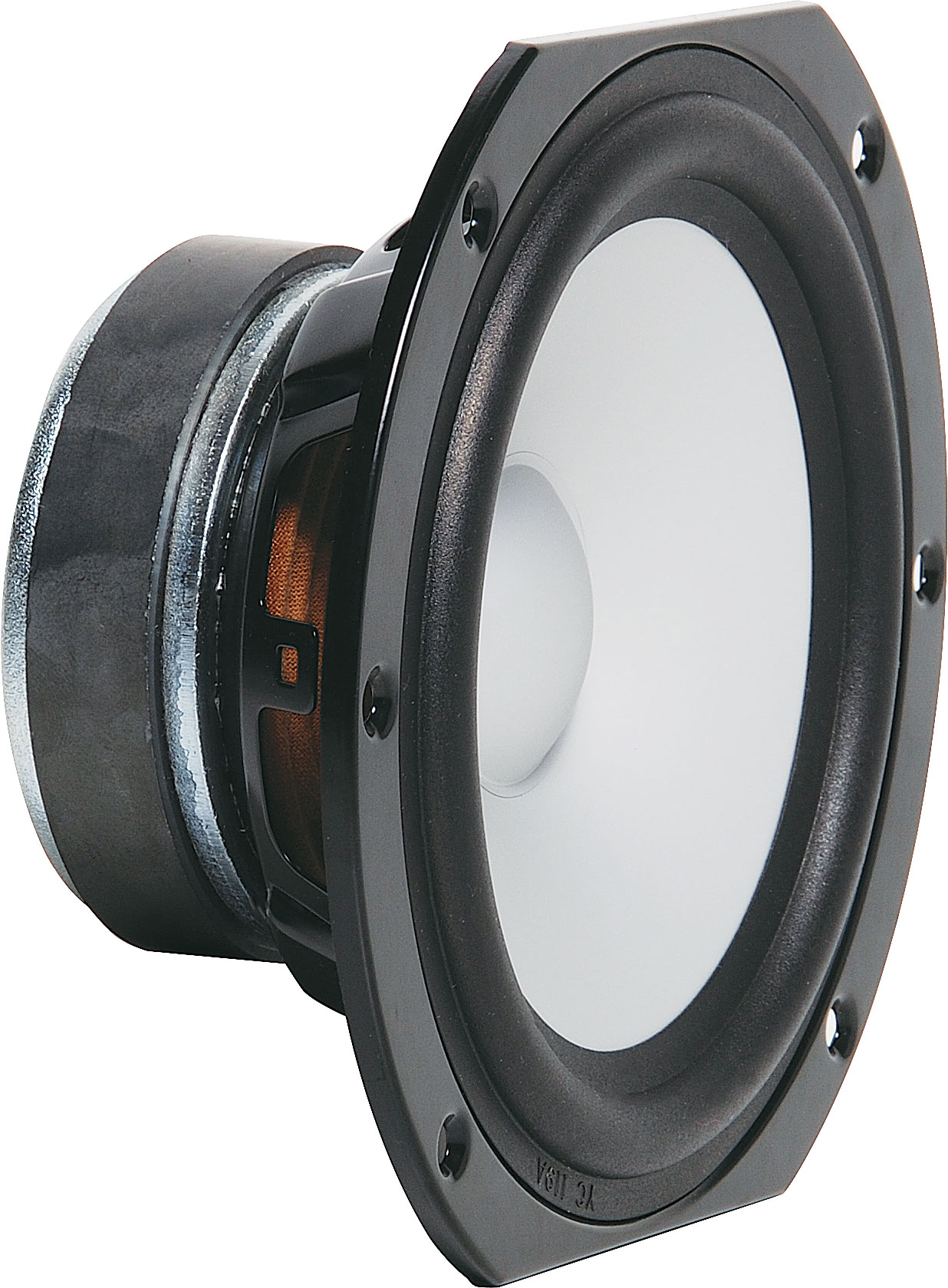

130mm (5") 40W Woofer Aluminium Cone Speaker

Manufacturer: Redback
SKU: C3038
130mm (5") 40W woofer aluminium cone speaker.
$51.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $51.36
4+ $46.14
10+ $40.86
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Rated power (RMS): 20W
Max power: 40W
Impedance: 8 Ohm
Freq response: 46Hz - 10kHz
Resonant freq: 46Hz
SPL 1W @ 1m: 87dB
Voice coil diam: 25.4mm
Qms: 2.41 Qes: 0.56 Qts: 0.45 Vas: 16.2L
Nett weight: 900g
Magnet weight: 283g
Cutout diameter: 119mm
Mounting depth: 59mm
Suggested sealed enclosure: 11.5L
Suggested vented enclosure: 15L
Vented tuned frequency: 46Hz
Suggested port size: 50ø x 150mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
