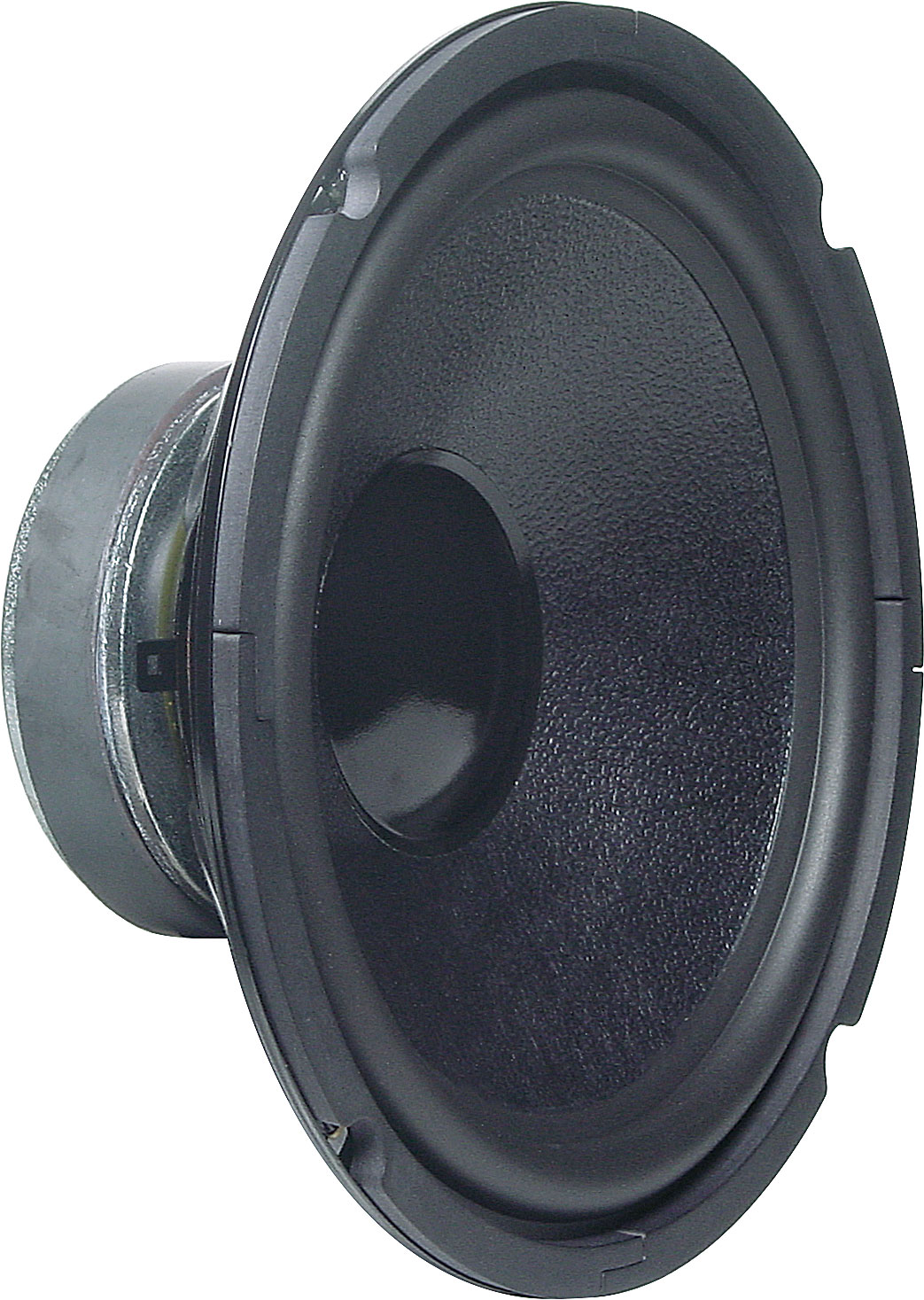

250mm (10") 120W Woofer PECC Speaker

Manufacturer: Redback
This series of loudspeakers feature rubber surrounds and high rigidity, fibre impregnated poly emulsion coated cones (PECC).
SKU: C3026
$82.68
Per ea
QuantityPrice
ea$82.68
4+$74.32
10+$66.59

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This series of loudspeakers feature rubber surrounds and high rigidity, fibre impregnated poly emulsion coated cones (PECC).

All voice coils are wound on aluminium formers, and magnet pole pieces are vented for heat dissipation. Bump back plates are employed to prevent voice coil over-excursion.

Manufactured exclusively for Altronics to our specifications, these drivers are suited to bass oriented enclosures, such as home theatre or car audio subwoofer enclosures.

Specifications

Rated Input Power: 60W RMS

  • Max Input Power: 120W
  • Impedance (300Hz): 8Ω
  • Frequency Resp: 28Hz-2kHz
  • Resonant Frequency: 28Hz
  • Sensitivity 1W @ 1m: 93dB
  • Voice Coil Diameter: 35.5mm
  • QMS: 2.83
  • QES: 0.27
  • QTS: 0.25
  • VAS: 135L
  • Nett Weight: 2.4kg
  • Magnet Weight: 848g
  • Cutout Diameter: 233mm
  • Mounting Depth: 122mm

Suggested Vented Enclosure

  • (Tuned to 30Hz)
  • Volume: 40L
  • Port: 70mmΓΈ x 100mmL

Suggested Sealed Enclosure

  • Volume: 30L
